Bent Beam Turret Nuts | Philidas Turret Nuts

Bent Beam Turret Nuts

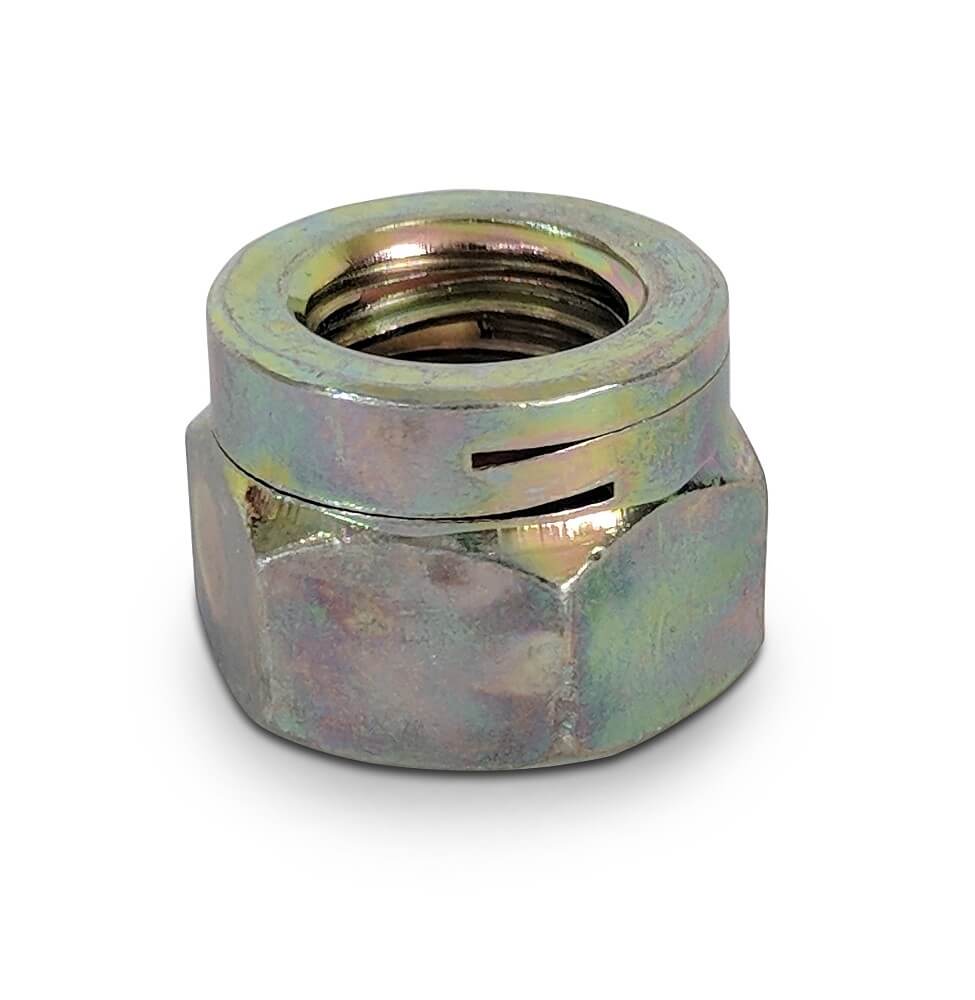

The Philidas Turret nut, also knows as a bent beam turret nut, provides the locking function with a duel slotted collar or 'turret' section above the hexagon, one slot positioned one above the other. The metal above these slots is set to de-pitch the threads such that when the nut is tightened on to a bolt the thread is gripped on the flank - the point at which it is designed to take the thrust. The all-metal Turret nut is suitable for use in high or low temperature conditions, and the locking performance is unaffected by oil, petrol or other liquids and vapours. It is easily assembled with hand or power tools, and will lock effectively either to a face or unsupported.

The difference between the Turret nut and the Industrial nut, is that the slots on the Turret nut are position one above the other. The Turret nut also has lower prevailing torque and is more re-usable than the industrial nut.

REFINE SEARCH
0 FILTERS APPLIED
M8 Bent Beam Turret Locking Nut Grade 8 ZYP
M8 Bent Beam Turret Locking Nut Grade 8 ZYP
Each£0.88
50+ £0.73 300+ £0.66
M6 Bent Beam Turret Locking Nut Grade 8 ZYP
M6 Bent Beam Turret Locking Nut Grade 8 ZYP
Each£0.67
100+ £0.56 500+ £0.50
M10 Bent Beam Turret Locking Nut Grade 8 ZYP
M10 Bent Beam Turret Locking Nut Grade 8 ZYP
Each£1.18
50+ £0.98 200+ £0.88
M4 Bent Beam Turret Locking Nut Grade 8 ZYP
M4 Bent Beam Turret Locking Nut Grade 8 ZYP
Each£0.76
100+ £0.63 500+ £0.57

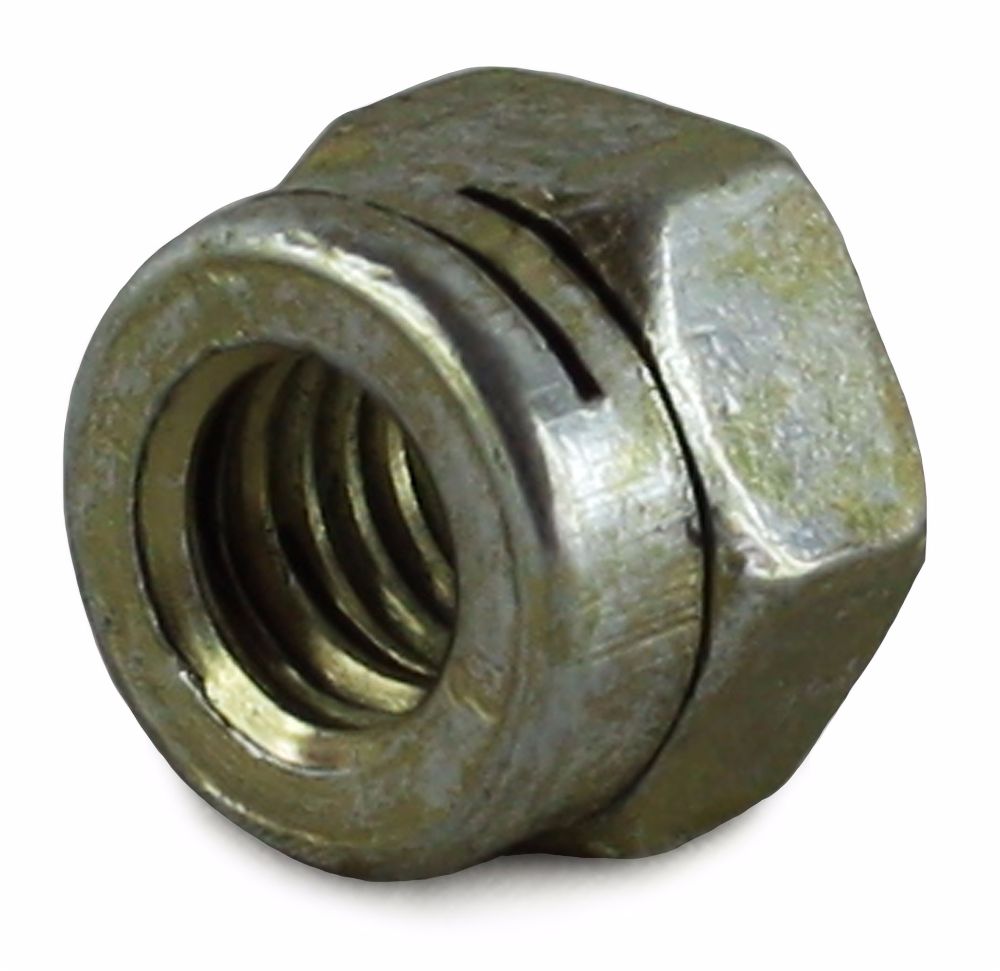

1/4 UNC Bent Beam Turret Locking Nut Grade 8
1/4 UNC Bent Beam Turret Locking Nut Grade 8
Per 1000£361.20
100+ £270.90 500+ £198.66
M5 Bent Beam Turret Locking Nut Grade 8 ZYP
M5 Bent Beam Turret Locking Nut Grade 8 ZYP
Each£0.74
100+ £0.61 500+ £0.55
M20 Bent Beam Turret Locking Nut Grade 8 ZYP
M20 Bent Beam Turret Locking Nut Grade 8 ZYP
Each£6.55
25+ £5.46 100+ £4.91
M16 Bent Beam Turret Locking Nut Grade 8 ZYP
M16 Bent Beam Turret Locking Nut Grade 8 ZYP
Each£3.35
25+ £2.80 100+ £2.52
M12 Bent Beam Turret Locking Nut Grade 8 ZYP
M12 Bent Beam Turret Locking Nut Grade 8 ZYP
Each£1.91
50+ £1.59 150+ £1.43
