A2 Bi-Metal Stainless Steel Low Profile Tek Screws 5.5mm x 19mm TEK-3

Christmas Opening Hours

We will be closing at 1pm Mon 23rd December, re-opening at 8am on Thursday 2nd Jan

Hide

Alert

remove

Please enter the new quantity and click submit.





5.5mm x 19mm A2 Bi-Metal Pancake TEK-3 Self-Drilling Screws

  • Hardened carbon steel point brazed to a stainless body and head
  • Evoshield 500Hr coating for extreme corrosion resistance
  • Low profile 'pancake' head with PH2 drive
SIZE:

£ 0.38 INC VAT (PRICED EACH)

£38.08 PER 100

(Include VAT?)

BULK QUANTITY DISCOUNTS:

50+

£34.61

200+

£27.69

2000+

£24.23

QUANTITY:

1368 IN STOCK


A2 bi-metal stainless steel TEK screws with a low-profile pan head, ideal for use where a low-profile concealed finish is required. The bevelled edge of the head helps prevent the head from snagging on any sliding parts. These screws are bi-metal, which means they have a hardened carbon steel point brazed to a stainless body and head. The carbon steel point helps give superior & accurate drilling characteristics every time.

PLEASE NOTE: Although these have a carbon steel drill point which will drill through steel, the body & thread is A2 stainless steel and as such these screws are only recommended for use in Aluminium substrates.


Features & Technical Info

  • Hardened carbon steel (SAE C1022) point brazed to a stainless steel (A2) body and head
  • TEK 3 drill point will drill through up to 3.5mm substrate
  • Phillips No2 recess for a positive drive
  • Additional electroplated zinc coating
  • FIREFAST™ 120min rated
  • Engineering specification
  • Product datasheet

Specifics

External thread dia: 5.5mm
Length: 19mm
Drill point dia: 4.3mm
Head dia: 10mm
Drilling capacity: 1.5mm - 3.5mm
Effective thread length: 10mm
Drill point: TEK 3
Head style: Pancake
Drive: PH2
Material: A2 stainless steel bi-metal
Finish: Electroplated zinc

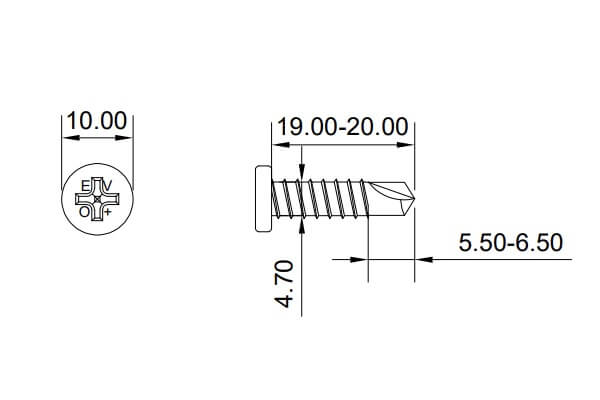

technical line drawing of EVOLUTION bimetal low profile head self-drilling tek screws BMTSPH5.5-19-3



Engineering specification
Engineering specification
Product Data Sheet
Product Data Sheet
