A2 Bi-Metal Stainless Steel Low Profile Tek Screws 5.5mm x 38mm TEK-5

Alert

remove

Please enter the new quantity and click submit.





5.5mm x 38mm A2 Bi-Metal Pancake TEK-5 Self-Drilling Screws

  • Hardened carbon steel point brazed to a stainless body and head
  • Evoshield 500Hr coating for extreme corrosion resistance
  • Low profile 'pancake' head with PH2 drive
SIZE:

£ 0.58 INC VAT (PRICED EACH)

£58.09 PER 100

(Include VAT?)

BULK QUANTITY DISCOUNTS:

50+

£52.81

200+

£42.25

2000+

£36.97

QUANTITY:

1490 IN STOCK


A2 bi-metal stainless steel TEK screws with a low-profile pan head, ideal for use where a low-profile concealed finish is required. The bevelled edge of the head helps prevent the head from snagging on any sliding parts. These screws are bi-metal, which means they have a hardened carbon steel point brazed to a stainless body and head. The carbon steel point helps give superior & accurate drilling characteristics every time.

PLEASE NOTE: Although these have a carbon steel drill point which will drill through steel, the body & thread is A2 stainless steel and as such these screws are only recommended for use in Aluminium substrates.


Features & Technical Info

  • Hardened carbon steel (SAE C1022) point brazed to a stainless steel (A2) body and head
  • TEK 5 drill point will drill through up to 12.5mm substrate
  • Phillips No2 recess for a positive drive
  • Additional electroplated zinc coating
  • FIREFAST™ 120min rated
  • Engineering specification
  • Product datasheet

Specifics

External thread dia: 5.5mm
Length: 38mm
Drill point dia: 4.3mm
Head dia: 11.2mm
Drilling capacity: 4.0mm - 12.5mm
Effective thread length: 22mm
Drill point: TEK 5
Head style: Pancake
Drive: PH2
Material: A2 stainless steel bi-metal
Finish: Electroplated zinc

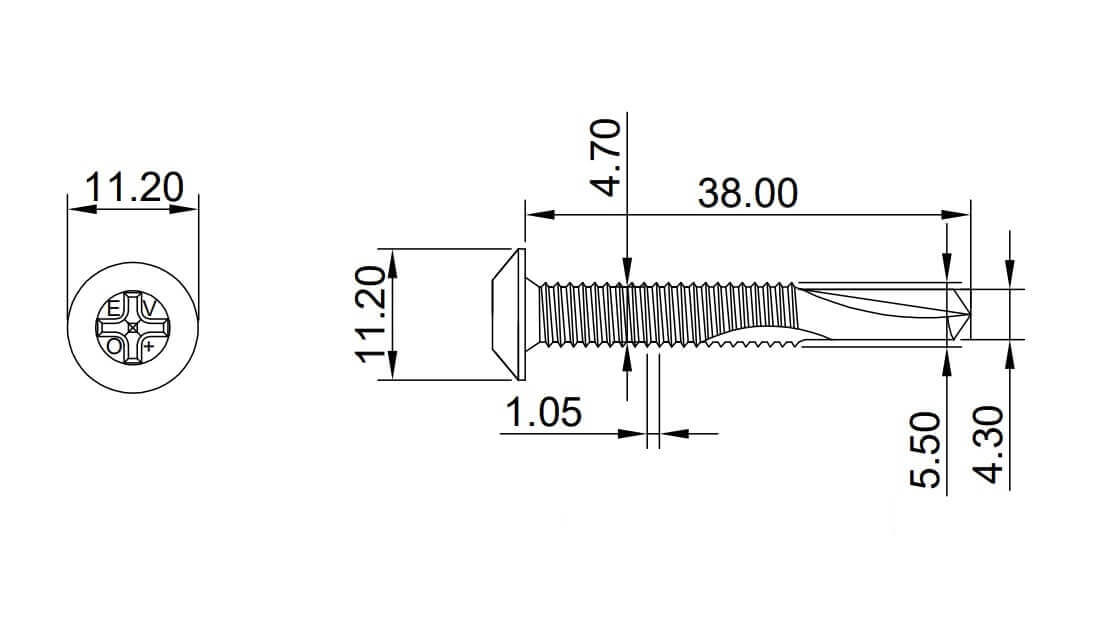

technical line drawing of EVOLUTION bimetal low profile head self-drilling tek screws BMTSLP5.5-38-5



Engineering specification
Engineering specification
Product Data Sheet
Product Data Sheet


 Delivery Terms

Orders over £100 will qualify for free 2-3 working day delivery*. Orders under £100 will be subject to a carriage charge - please see below for our delivery options.

We offer a number of different nationwide* services. Please see below for our delivery options.

*Please note that orders to the Isle of Wight, the Isle of Man, the Scottish Isles, the Scottish Highlands, Northern Ireland and the Channel Isles will incur a carriage surcharge.

*Long items greater than or equal to 1.5M in length will be subject to a length surcharge of £12. This surcharge is per shipment, and not per item.

Orders placed before 15:00 with next working day/timed services, Saturday & Royal Mail Special Delivery services will be dispatched the same day (Monday to Friday). Orders placed with any of these services after 15:00 will not be dispatched until the next working day. Orders placed on Saturdays, Sundays or bank holidays will be dispatched on the next working day. Next working day means Monday - Friday, excluding bank holidays. Orders placed with any of the aforementioned services will not be delivered on a Saturday or Sunday. For Saturday deliveries, select 'Saturday Delivery' in the basket.

We aim to despatch all orders with standard services within 2 working days, as long as all of the items are in stock.

Delivery Services

We offer the following delivery services:

  • Royal Mail standard tracked (3-5 working days) £4.50^^
  • Royal Mail 24 tracked (1-3 working days) £5.95^^
  • R/Mail Special Delivery next working day by 1pm^ £14.99^^
  • R/Mail Special Delivery next working day by 9am^ £39.98^^
  • Standard courier 2-3 working days £6.98
  • Express 1-2 working working day^ £8.99
  • Next working day by 13:00^ £10.99
  • Next working day by 11:00^ £14.99
  • DPD Saturday delivery^ £9.98

^Orders placed before 15:00 with next working day/timed services, Saturday & Royal Mail Special Delivery services will be dispatched the same day (Monday to Friday). Orders placed after 15:00 will not be dispatched until the next working day. Orders placed on Saturdays, Sundays or bank holidays will be dispatched on the next working day. Next working day means Monday - Friday, excluding bank holidays. Orders placed with any of the aforementioned services will not be delivered on a Saturday or Sunday. For Saturday deliveries, select 'Saturday Delivery' in the basket.

^^Royal Mail services are only offered to basket weights up to and including 2 kilos only. The 1pm & 9am Special Delivery times are for UK mainland only and will vary for Northern Ireland, Highlands & Islands. Please view the Royal Mail website for full details.

Please note that orders to the Isle of Wight, the Isle of Man, the Scottish Isles, the Scottish Highlands, Northern Ireland and the Channel Isles will incur a carriage surcharge.

Long items greater than or equal to 1.5M in length will be subject to a length surcharge of £12. This surcharge is per shipment, and not per item.

Collection

All orders are available for collection from our stores. Collection orders will normally be ready within 2 hours of the order being placed, as long as all items are in stock at the time of order.

Van Delivery

TC Fixings offers a free van delivery service to Saffron Walden and the surrounding villages.
