Buy A4 Stainless Long Shank Wood Thread Eye Bolts M5

Christmas Opening Hours

We will be closing at 1pm Mon 23rd December, re-opening at 8am on Thursday 2nd Jan

Hide

Alert

remove

Please enter the new quantity and click submit.

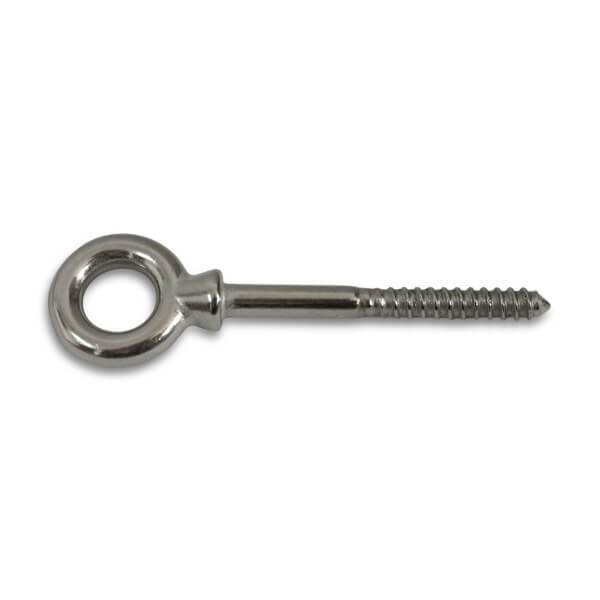

A4 Stainless Steel Long Shank Wood Thread Eye Bolts M5

  • This item does not have a weight rating
  • For fixing into timber or a nylon plug
  • A4 (316) Stainless steel
OPTIONS:

£ 1.66 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

10+

£1.41

20+

£1.33

50+

£1.25

QUANTITY:

20 IN STOCK


Long shank wood screw thread eye bolts manufactured from A4 (316) marine grade stainless steel. This versatile fixing can be used in several applications and is suitable for both internal and external use due to be made from A4 stainless steel. Can be fixed directly into timber or into masonry with a nylon plug.


Features

  • Long shank with wood screw thread
  • A4 stainless steel (316)

Specifics

Thread dia (D1): 5.0mm (+/-5%)
Overall length (L): 72mm (+/-5%)
Shank length (L1): 50mm (+/-5%)
Thread length (L2): 30mm (+/-5%)
Internal Eye dia  (D): 11mm (+/-5%)
Collar dia (D2): 9mm (+2/-8%)
Eye thickness (K): 4mm (+2/-8%)
Material: A4 (316) stainless steel
Finish: Self-colour (no plating)
Standard: None*


*IMPORTANT, PLEASE READ

Our stainless-steel eye products have not been developed or manufactured for lifting equipment, slings or load support devices (Directive 2006/42/EC). As for the fall protection systems, our products do not have the conformity certifying the verification of the requirements of the technical standard EN 795:2012 (fall protection systems Class A, C and D) and do not have the CE marking (eg. fall protection systems Class B and E).

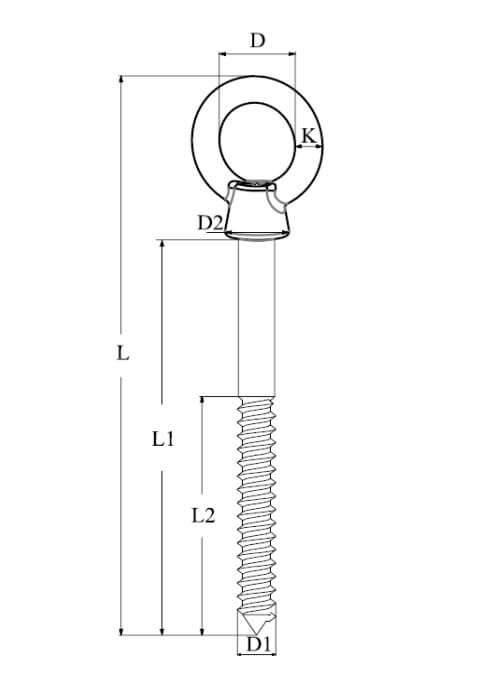

technical line drawing of A4 stainless steel long shank wood screw thread eye bolts
