Buy Evoshield SUPERTEK-7 Screws | 93mm Countersunk Wing Tip TEK-7 Screws TSTF5.5-93-7

Alert

remove

Please enter the new quantity and click submit.

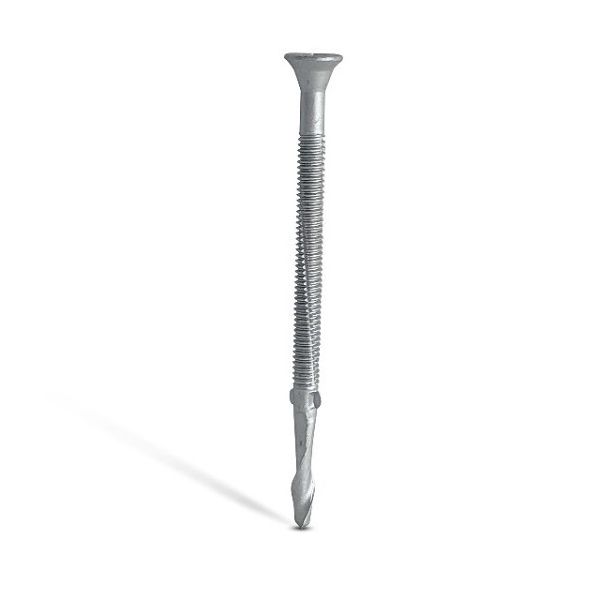

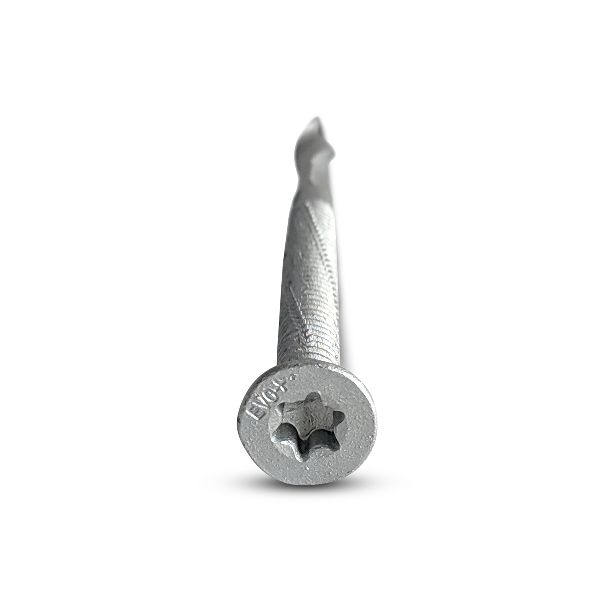

Evoshield® Wing Tip SUPERTEK-7 Screws 5.5mm x 93mm

  • For 4.0mm - 18.0mm steel thickness
  • 1000hr rated Evoshield® coating
  • AISI C1022 grade steel
SIZE:

£ 0.83 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

100+

£0.66

1400+

£0.56

QUANTITY:

OUT OF STOCK

OUT OF STOCK - PLEASE ALLOW 2 WEEKS PLUS DELIVERY SERVICE


Evolution SUPERTEK-7 wing tipped tek screws are specifically designed for fixing timber or composites to metal substrates from 4.0mm to 18mm thick. These tek screws have a heavy duty spiral self-drilling tek point and can be used in extremely hard steel that defeats normal tek screws. Evolution SUPERTEK-7 tek screws have an Evoshield® exterior coating which is tested to withstand a minimum 1000 hours of salt spray.


Features

  • TEK-7 Spiral point to drill through up to 18mm steel
  • 24 TPI Fine thread for extreme grip
  • Evoshield® 1000-hour salt spray tested exterior plating
  • Manufactured from AISI C1022 grade steel
  • TX30 Torx drive

Specifics

External thread dia: 5.5mm
Drive recess: Torx 30
Length: 93mm (+/- 1.5mm)
Effective thread length: 63mm
Timber thickness: 20mm - 60mm
Thread: 'V' Fluted 24 TPI fine thread
Rec.: 1500 - 2500 rpm
Drill point: TEK 7 Spiral point
Drill point diameter: 5.0mm (+/-0.10mm)
Drill point length: 23mm (+/-1mm)
Material: AISI C1022 grade steel
Finish: Evoshield® 1000hr exterior coating
Steel thickness4.0mm - 18.0mm
Fixes from / to: Timber & plasterboard / steel

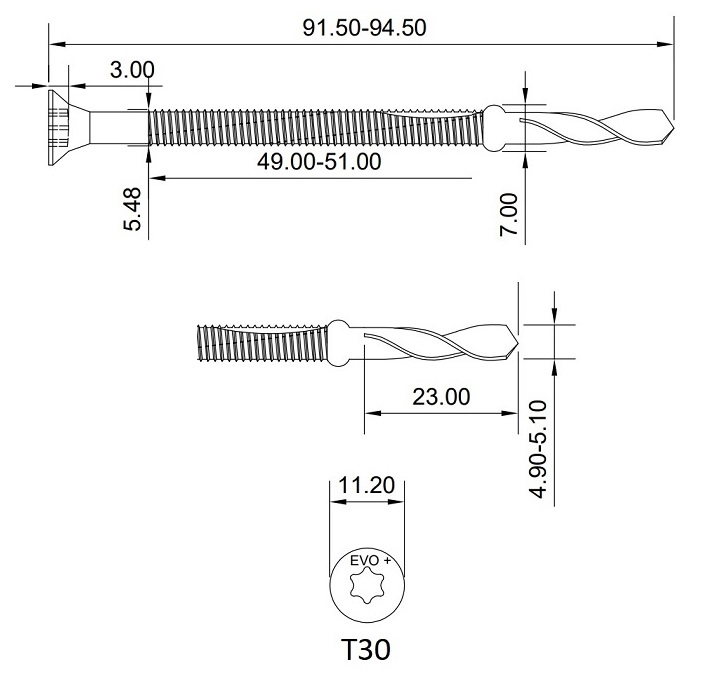

technical line drawing of Evoshield supertek-7 wing tip tek screws



Evolution TSTF SUPERTEK 7 Data Sheet
Evolution TSTF SUPERTEK 7 Data Sheet
Evoshield Plating Data Sheet
Evoshield Plating Data Sheet
