Evoshield Wing Tip Countersunk TEK-3 Screws 4.2 x 38mm

Evolution TEK-3 wing tipped tek screws are specifically designed for fixing timber to metal substrates from 1.2mm to 3.5mm thick. No need to pre-drill thanks to the sharp drill point, however for very hard substrates a small pilot hole can be used to speed up insertion speed. These tek screws have an Evoshield® exterior coating which is tested to withstand a minimum 500 hours of salt spray.

Features

Self-drilling point to drill through up to 3.5mm steel
Coarse self-tapping thread for extreme grip & excellent pull out
Evoshield® 500-hour salt spray tested exterior plating
Manufactured from AISI C1022 grade steel
PH2 phillips drive

Specifics

External thread dia: 4.2mm
Drive recess: PH2
Length (L1): 38mm
Effective thread length (L2): 22mm
Timber thickness: 6mm - 22mm
Recommended drill speed: 1500 - 2500 rpm
Drill point: TEK 3
Material: AISI C1022 grade steel
Finish: Evoshield® 500hr exterior coating
Suitable for steel thickness: 1.2mm - 3.5mm
Fixes material / to: Timber & plasterboard / steel

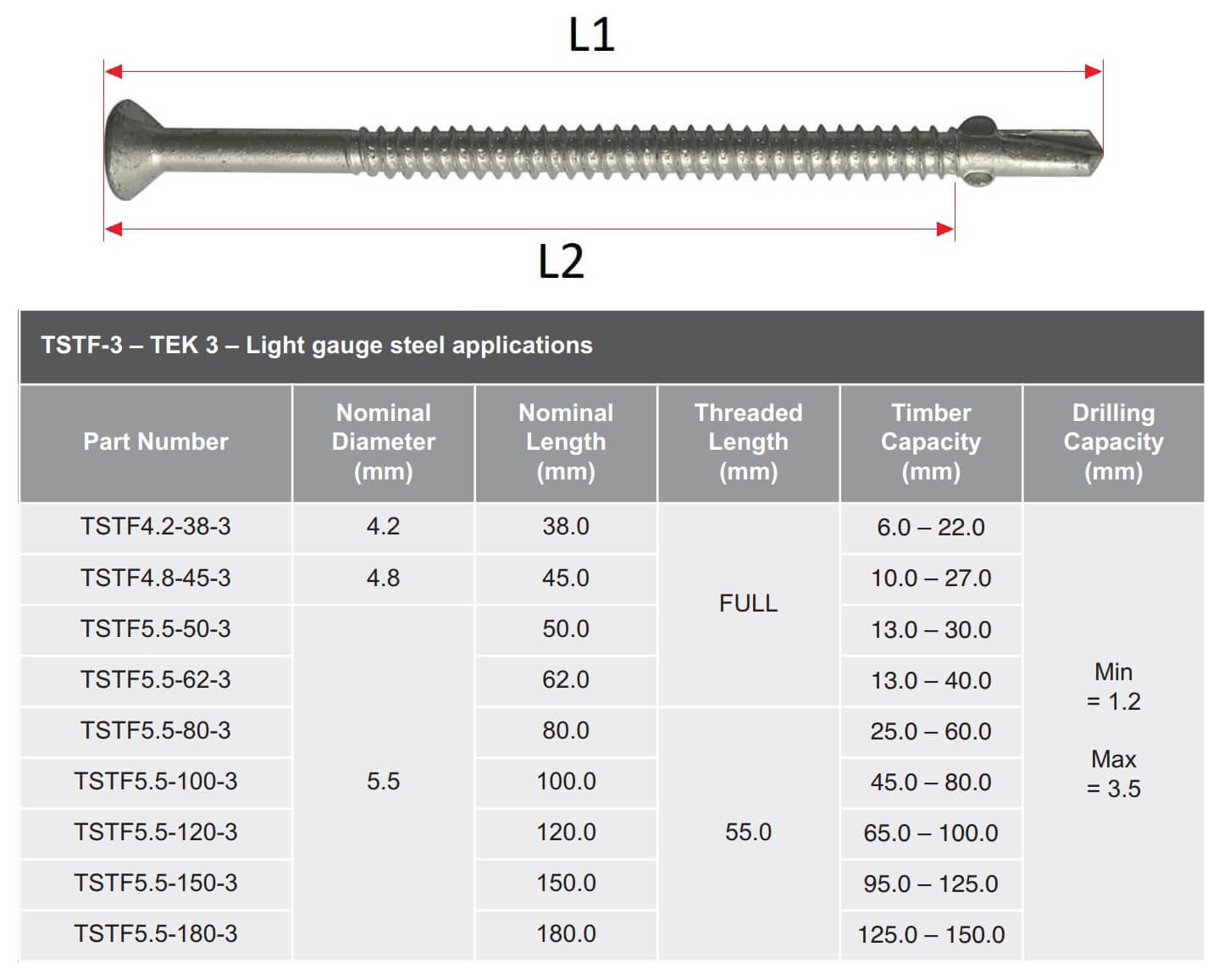

Technical line drawing of wing tip tek screw

Evolution TSTF Data Sheet

Evoshield Plating Data Sheet
