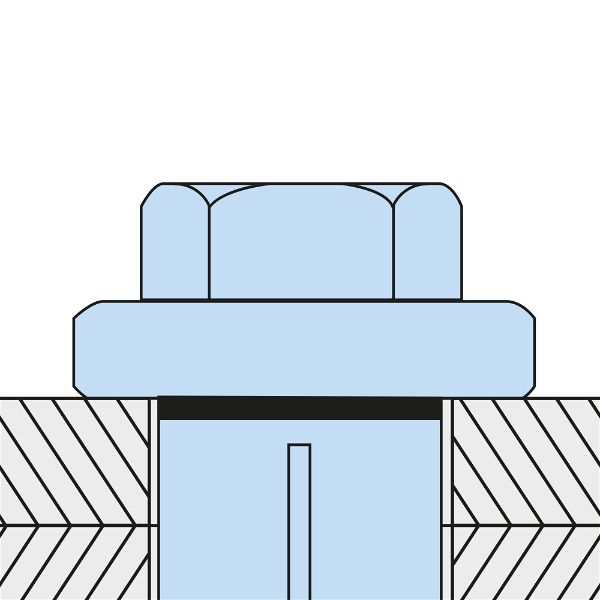

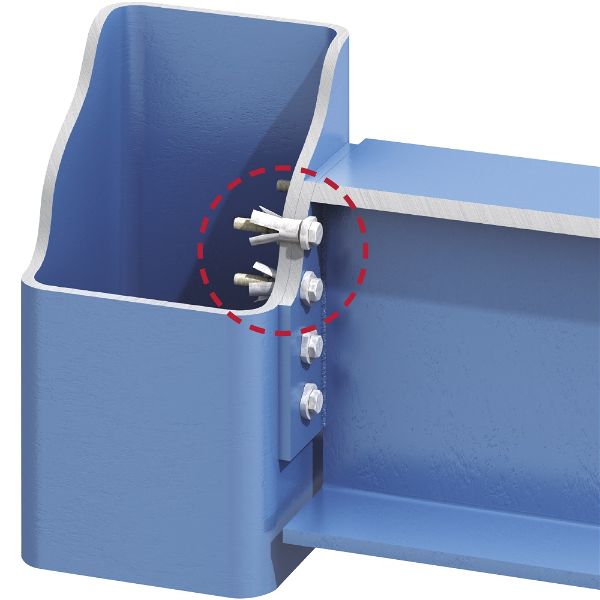

The original expansion bolt for structural steel. The Hollo-Bolt® from Lindapter is a highly popular and trusted fixing solution for use with Structural Hollow Section (SHS). These are a 'blind' fitting bolt, which means only one-sided access is required for installation. This provides significant time savings when compared to more traditional methods such as welding.
Features
Specifics

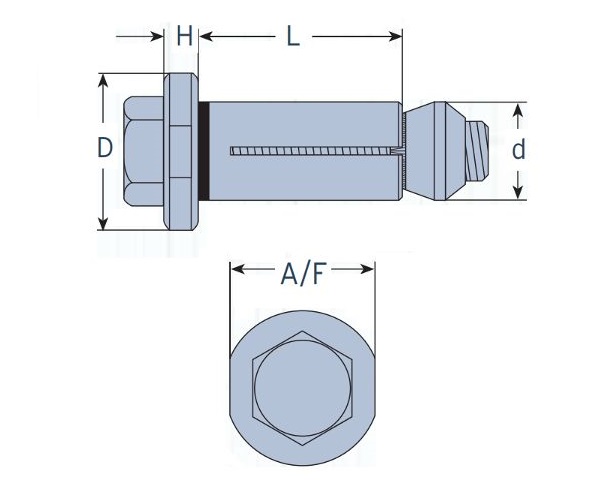

Bolt size: M10 x 55mm
Clamping thickness: 3mm - 22mm
Sleeve length (L): 30mm
Sleeve outer diameter (d): 17.75mm
Clearance hole diameter: 18mm (+1.0 / -0.2)
Collar height (H): 6mm
Collar diameter (D): 29mm
Collar across flats (A/F): 24mm
Tightening torque: 45 Nm
Safe working loads1 (Tensile): 8.5 kN
Safe working loads1 (Single shear): 10.0 kN
Lindapter part number: HB10-1
Finish: Zinc CR3
1Safe working loads shown are based on use in S275 structural hollow section and use 5:1 factor of safety. The safe working loads, in both tension and shear, are applicable to the Hollo-Bolt only. Failure of the section, particularly on those with thin walls and a wide chord face, could occur at a lower figure and strength of the section should be checked by a qualified structural engineer.
