M10 Lifting Eye Bolt DIN 580 BZP | Timber Lifting Eye | Lifting Eye | Lifting Bolt

Christmas Opening Hours

We will be closing at 1pm Mon 23rd December, re-opening at 8am on Thursday 2nd Jan

Hide

Alert

remove

Please enter the new quantity and click submit.





M10 Lifting Eye Bolt DIN 580 BZP

  • M10 x 1.50 Pitch coarse thread
  • Eye ID 25mm | Eye OD 45mm
  • Shank length 17mm
OPTIONS:

£ 1.73 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

25+

£1.53

100+

£1.37

QUANTITY:

34 IN STOCK


DIN 580 lifting eye bolts manufactured from carbon steel. This item is CE stamped with it's safe working load limit, but please note that this item is not tested and certified.


Features

  • Zinc plated carbon steel
  • DIN 580 pattern lifting eye bolt

Specifics

Thread size (M): M10
Collar dia (D1): 25mm (+2/-8%)
Internal eye dia (D2): 25mm (+/-5%)
Eye width (L1): 45mm (+2/-8%)
Eye height (H1): 45mm (+2/-8%)
Thread length (H2): 17mm (+/-5%)
Working load: 230kg*
Material: Carbon Steel
Finish: Bright Zinc Plated
Standard: DIN 580


*IMPORTANT, PLEASE READ

Before use it, the ring, must be checked for its correct seating and apparent damage. Do not continue with the use of deformed rings or reuse them, if possible, these should be replaced. In case of installing the elevation ring in a through hole, one nut must be fully threaded and tightened from the other side.

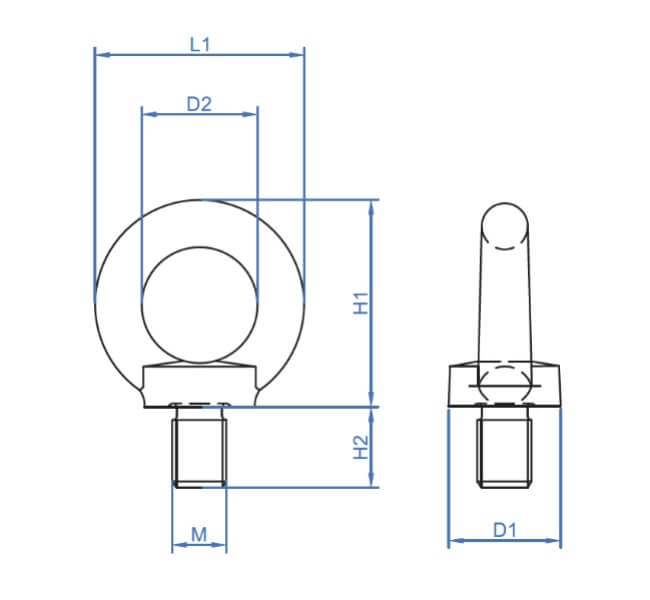

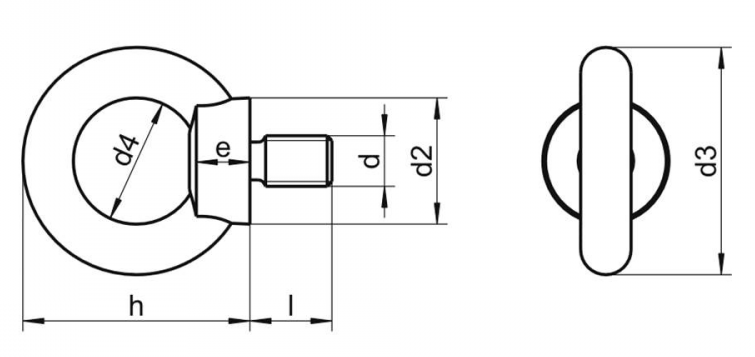

technical line drawing of BZP Carbon Steel lifting eye bolts
