Buy Nord-Lock Washers | M10 Nord Lock Oversized Wedge Locking Washer NL10SP

Alert

remove

Please enter the new quantity and click submit.

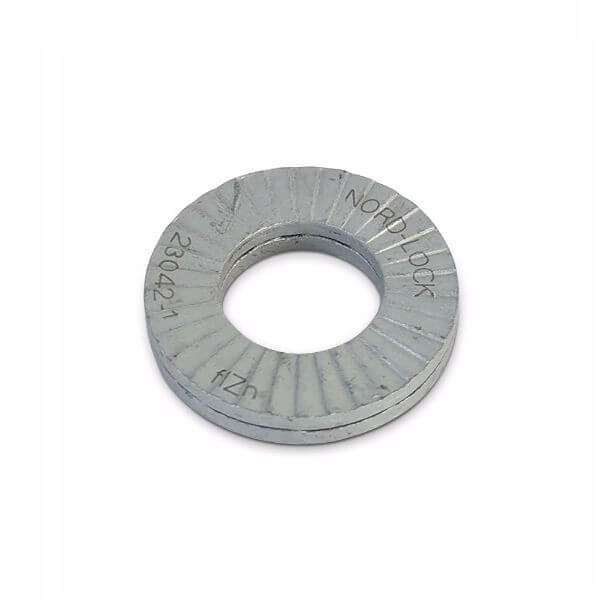

M10 Nord Lock Oversized Wedge Locking Washer NL10SP

  • 10.7mm ID x 21mm OD x 2.5mm thick
  • Delta Protekt® plated steel
  • Supplied in locking pairs
SIZE:

£ 0.96 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

50+

£0.86

100+

£0.72

200+

£0.64

QUANTITY:

277 IN STOCK

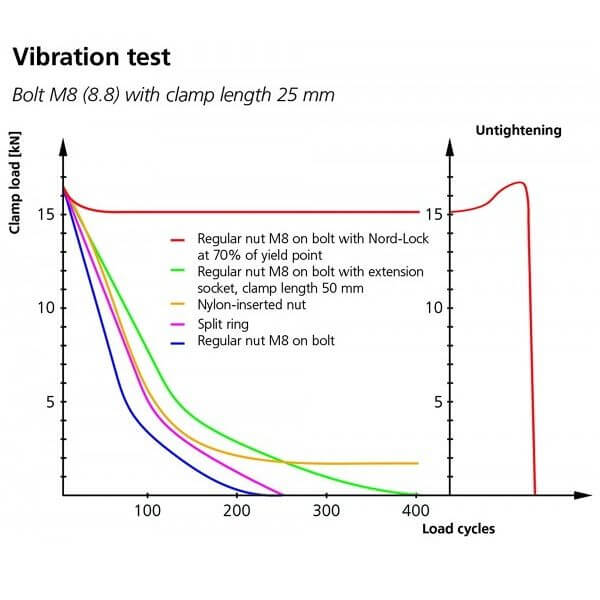

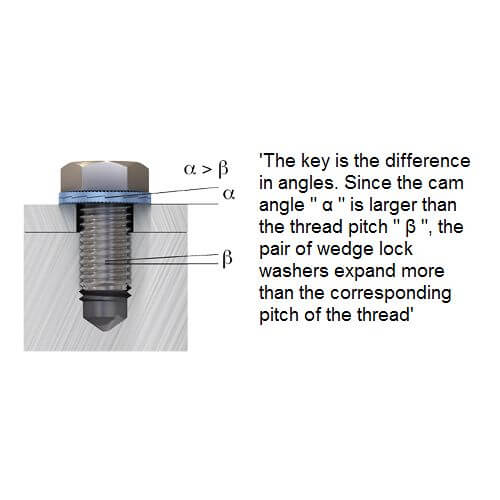

The Nord-Lock wedge locking washer is the original wedge locking washer, developed to secure bolted joints, even when exposed to severe vibration and dynamic loads. Nord-Lock washers utilise tension in the bolt joint rather than friction, be ensuring the angle of the taper between the washer pairs is greater than the pitch of the thread. This essentially means that you will need greater torque to remove than used to fasten, making it highly unlikely for bolted joints to loosed unintentionally when a Nord-Lock washer has been used.


Features

  • Quick & easy installation/removal with hand tools
  • Lubrication does not affect the locking function
  • High corrosion resistance
  • Reusable

Specifics

Nominal dia: M10
Internal dia (d): 10.7mm
Outside dia (D): 21.0mm
Thickness (T): 2.5mm
Material: Steel
Finish: Delta Protekt®

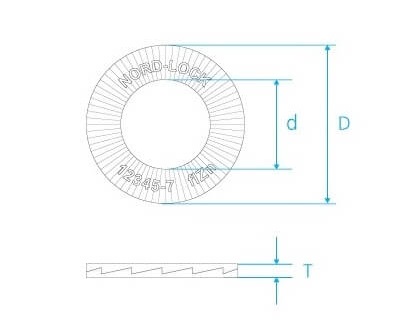

technical line drawing of Nord-Lock wedge locking washer
