Buy Nord-Lock Washers | M10 Nord Lock Wedge Locking Washer NL10

Christmas Opening Hours

We are now closed for Christmas & New Year, re-opening at 8am on Thursday 2nd Jan.

Hide

Alert

remove

Please enter the new quantity and click submit.

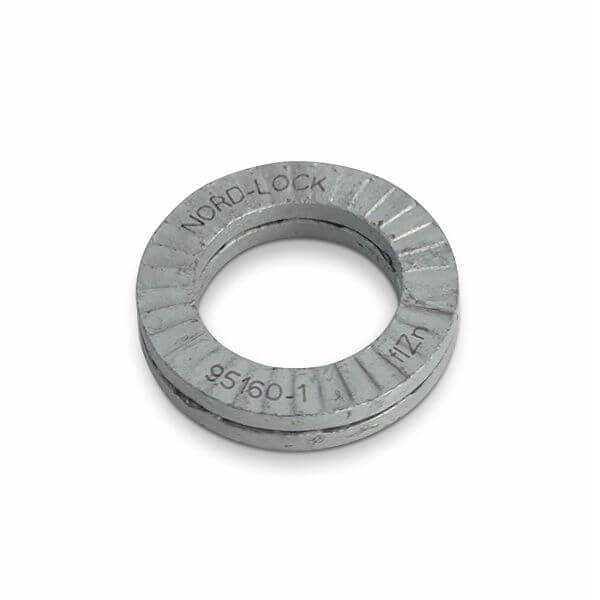

M10 Nord Lock Standard Wedge Locking Washer NL10

  • 10.7mm ID x 16.6mm OD x 2.5mm thick
  • Delta Protekt® plated steel
  • Supplied in locking pairs
SIZE:

£ 0.63 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

50+

£0.56

100+

£0.47

200+

£0.42

QUANTITY:

138 IN STOCK

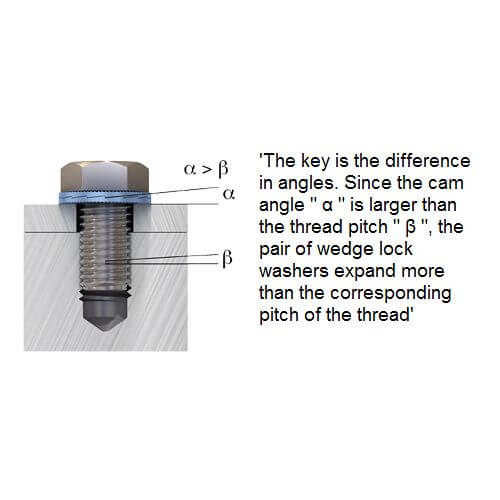

The Nord-Lock wedge locking washer is the original wedge locking washer, developed to secure bolted joints, even when exposed to severe vibration and dynamic loads. Nord-Lock washers utilise tension in the bolt joint rather than friction, be ensuring the angle of the taper between the washer pairs is greater than the pitch of the thread. This essentially means that you will need greater torque to remove than used to fasten, making it highly unlikely for bolted joints to loosed unintentionally when a Nord-Lock washer has been used.


Features

  • Quick & easy installation/removal with hand tools
  • Lubrication does not affect the locking function
  • High corrosion resistance
  • Reusable

Specifics

Nominal dia: M10
Internal dia (d): 10.7mm
Outside dia (D): 16.6mm
Thickness (T): 2.5mm
Material: Steel
Finish: Delta Protekt®


technical line drawing of Nord-Lock wedge locking washer
