Buy Spring Washers | M10 Square Section Spring Washers BZP DIN 7980

Christmas Opening Hours

We are now closed for Christmas & New Year, re-opening at 8am on Thursday 2nd Jan.

Hide

Alert

remove

Please enter the new quantity and click submit.

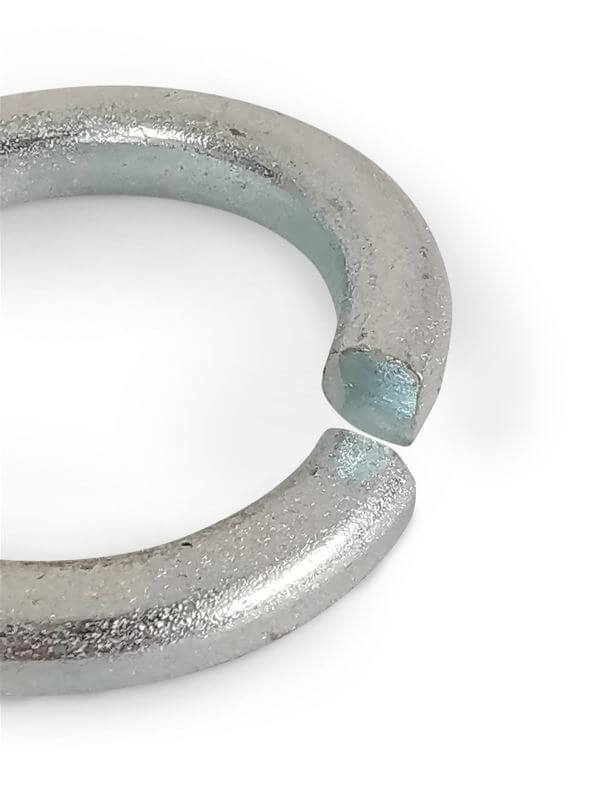

M10 Square Section Spring Washers BZP DIN 7980

  • 10.2mm ID x 16mm OD x 2.5mm Thick
  • Bright zinc plated spring steel
  • A form of locking washer
SIZE:

£ 0.03 INC VAT (PRICED EACH)

£2.58 PER 100

(Include VAT?)

BULK QUANTITY DISCOUNTS:

100+

£1.93

1000+

£1.42

QUANTITY:

4227 IN STOCK


Helical spring lock washers, or spring washers as they are more commonly known, are a ring split at one end and bent into a helical shape. During fastening, the spring washer is compressed, and the tension of the spring washer will maintain pressure against the bolt head/nut & the material being fastened to. In theory this prevents the bolted joint from coming lose. In practice however, spring washers have been proven to be ineffective and we would only recommend using with fasteners with a tensile class of 5.8 & less (mild steel), and in applications using a slow fastening torque. Spring washers are not to be used in conjunction with a flat washer as this reduces their effectiveness even further. For high tensile & high torque applications, we recommend using Nord-Lock washers.


Features

  • Split ring washer bent into a helical shape giving axial tension when compressed
  • For mild steel & low torque applications only
  • Made from spring steel
  • Reusable

Specifics

Nominal dia: M10
Internal dia (d1): 10.2mm
Outside dia (d2): 16.0mm
Thickness (s): 2.5mm
Material: Spring steel
Finish: Zinc CR-3 plated
Standard: DIN 7980

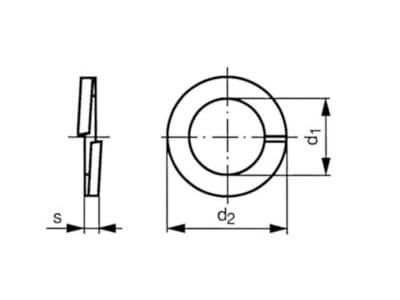

technical line drawing of square section spring washer to DIN 7980
