Buy A4 Stainless Coach Screws | M10 x 160mm A4 Stainless Lag Screws

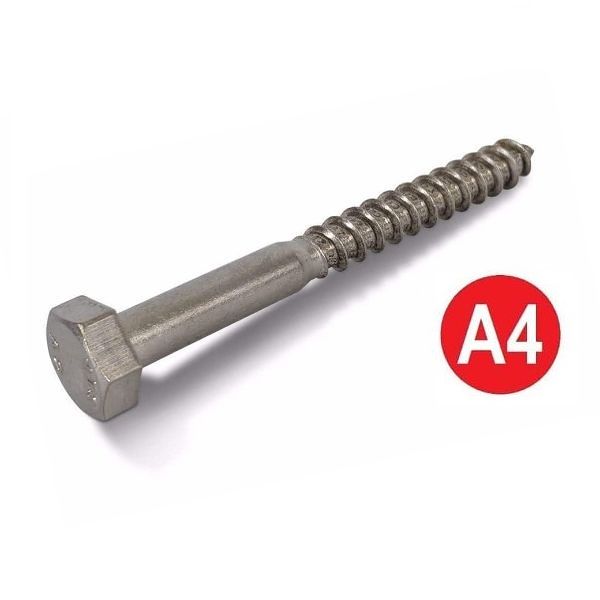

M10 x 160mm A4 Stainless Hex Head Coach Screws DIN 571

A4 (316) Marine grade stainless steel

Rust resistant for exterior use

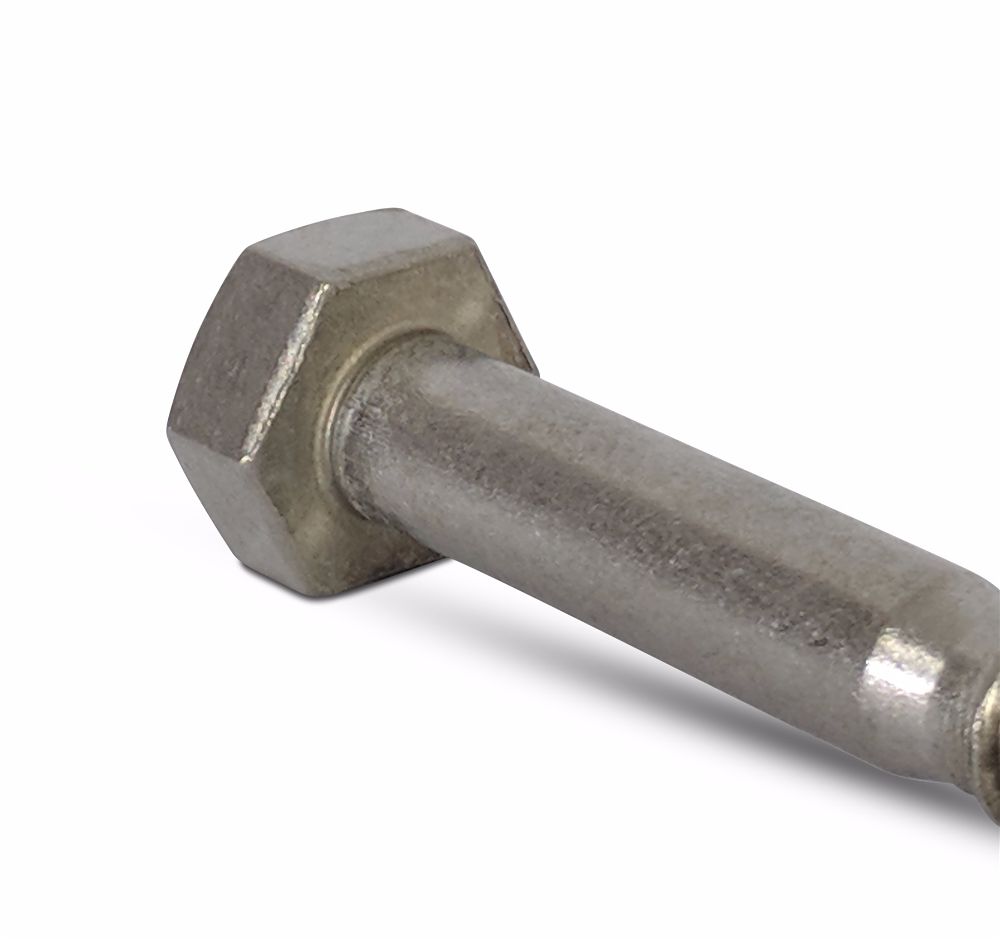

17mm Hexagon head

ORDER BY 3PM FOR NEXT DAY DELIVERY (MON-FRI)*

ORDER BY 3PM FOR NEXT DAY DELIVERY*

FREE STANDARD DELIVERY ON ORDERS OVER £100*

FREE STANDARD DELIVERY OVER £100*

Description
Delivery

What are Coach Screws?

A Guide to Marine Grade A4 Stainless Steel Lag Bolts and Their Uses

Coach screws (also known as lag screws or lag bolts) are essential heavy-duty fasteners primarily used in timber-to-timber construction. These robust screws feature a hexagonal head, making them ideal for high-torque applications. When you need extra strength and rust resistance for outdoor projects, A4 stainless steel coach screws are a top choice, especially in very corrosive environments such as coastal areas, applications exposed to chemicals i.e. swimming pools, or areas exposed to excessive temperature fluctuations.

Key Applications:

Securing metal plates or concrete posts to timber
Heavy-duty timber-to-timber applications
Fixing into masonry when used with a nylon plug
External applications, or for use in corrosive environments

Why Choose A4 316 Stainless Steel Coach Screws?

A4 (316) stainless steel is commonly known as 'marine grade' stainless steel, as it can be used in salt water environments
Ultimate rust resistance for outdoor use - A4 stainless has better rust resistance than A2 stainless
Stainless steel is essential when working with oak and other hardwoods with a high tannin content
Ideal for projects exposed to harsh weather or moisture, chemicals or heat exposure

Important Note: While stainless steel offers excellent corrosion resistance, it’s softer than carbon steel. For best results, always use a pilot drill, especially in hard woods like oak.

Specifics

Diameter (d1): Ø10mm (M10)
Length from under head (L): 160mm
Head height (k): 7mm
Across flats (s): 17mm
Across points (e): 18.72mm
Thread length: See diagram for indication. Please call us for exact measurement of current stock as it varies by batch
Material: A4 (316) Stainless steel
Din standard: DIN 571

Click here to view the full sizing table

Technical line drawing of A4 stainless steel coach screws
