M10 x 20mm Stainless Steel Countersunk Furniture Connector Nut

Alert

remove

Please enter the new quantity and click submit.

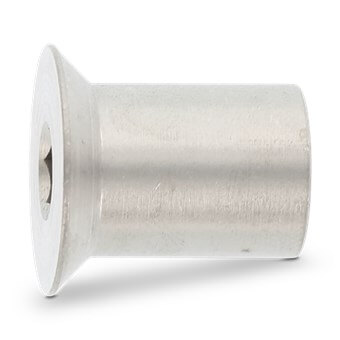

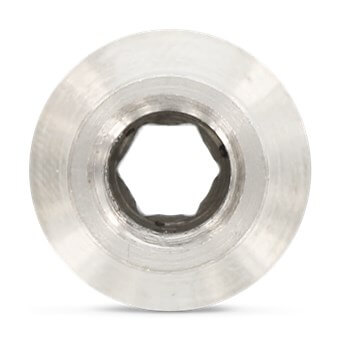

M10 x 20mm A4 SS Countersunk Socket Sleeve Nut

  • A4 (316) marine grade stainless steel
  • 6mm Hexagon socket drive
  • Countersunk head
SIZE:

£ 4.06 INC VAT (PRICED EACH)

£405.60 PER 100

(Include VAT?)

BULK QUANTITY DISCOUNTS:

10+

£344.76

25+

£304.20

100+

£283.92

QUANTITY:

156 IN STOCK


Countersunk connector nuts, also known as sleeve nuts, are commonly used in furniture assembly. These connector nuts have an M10 internal thread and are made from A4 stainless steel. They are compatible with any M10 metric coarse threaded fastener.


Features

  • A4 (316) Marine Grade Stainless Steel
  • Countersunk head with hexagon drive recess

Specifics

Internal thread dia (d): M10
Shank diameter (d2): 14mm
Head diameter (dk): 20mm
Head height (k): 3.3mm
Drive recess: 6mm Hex
Shank length (l1): 20mm
Internal thread length (l2): 12mm
Material: A4 (316) Marine Grade Stainless Steel
Finish: Self-colour (no plating)



technical line drawing of M10 stainless steel sleeve nuts connector nuts
