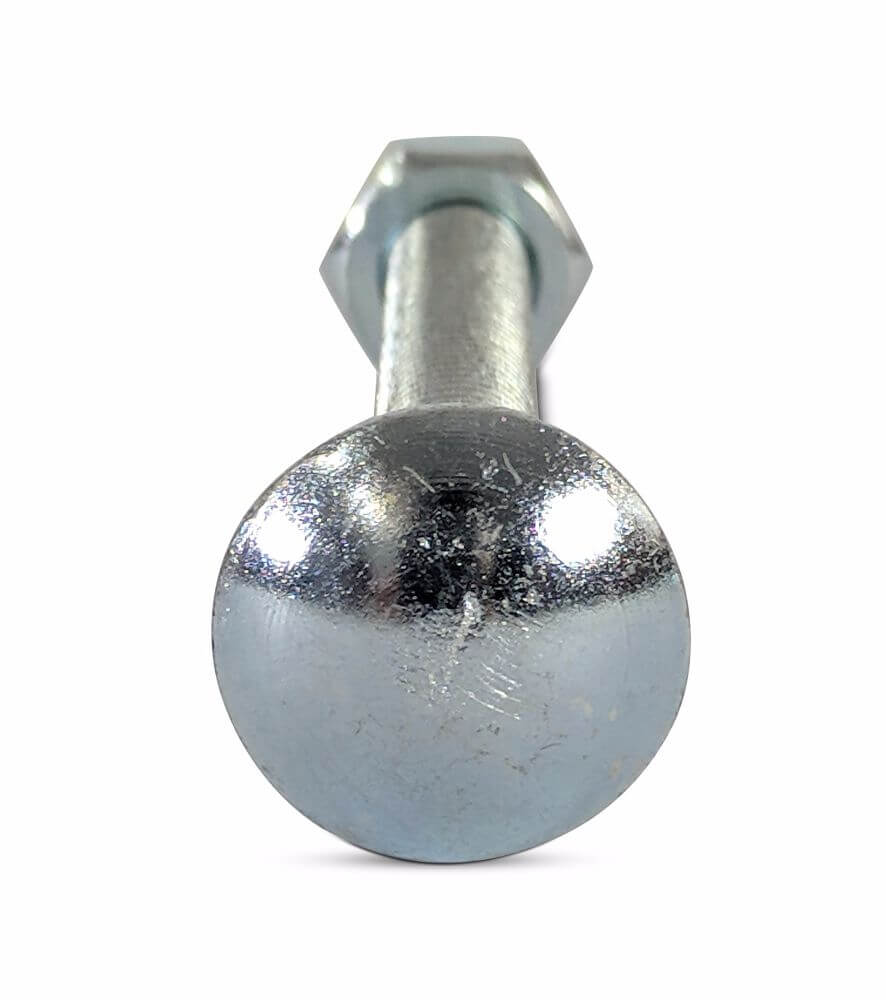

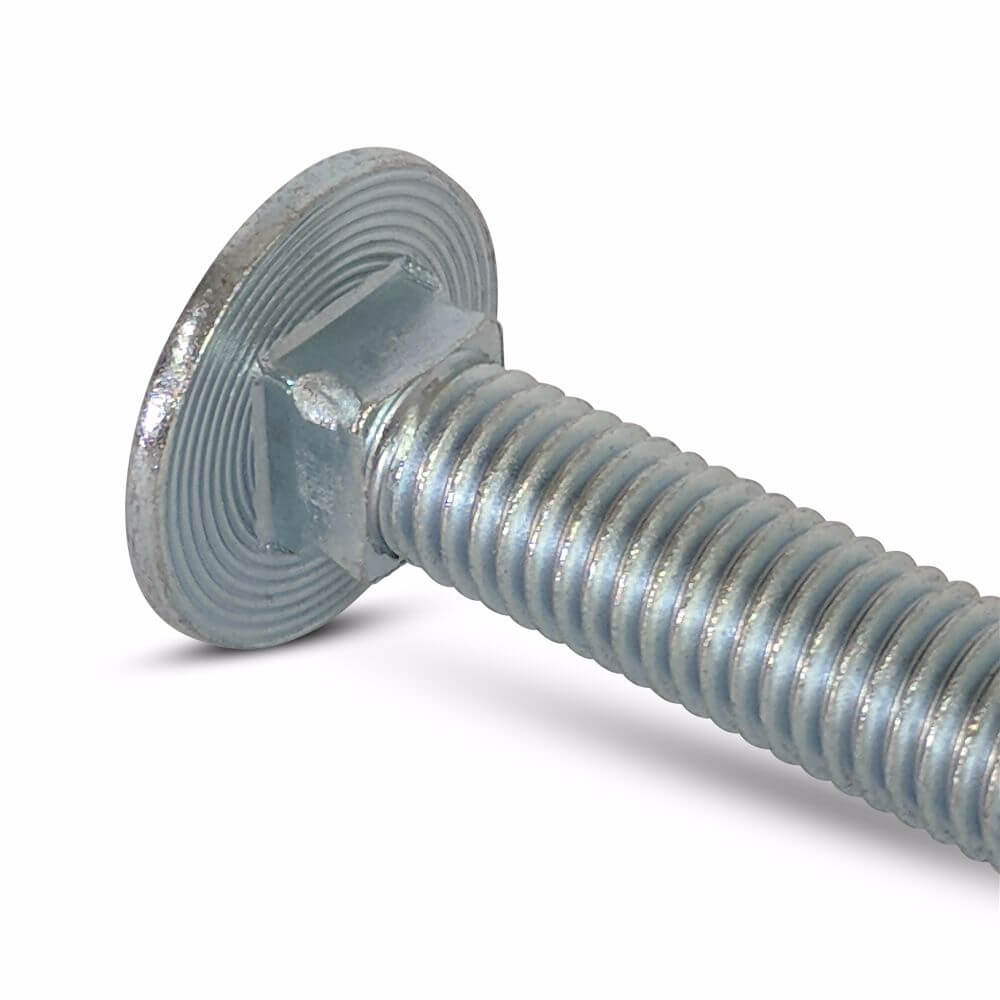

Coach bolts, also commonly known as carriage bolts or cup square hex, are a 'self locking' bolt used for timber to timber construction. The square underneath the head pulls into the timber and means you don't need to hold one side of the bolt with a wrench when tightening. Coach bolts are mild steel to allow for movement in the timbers over time and ensures the bolts will bend with the timbers and not shear.
D: M10 x 1.50 pitch
L: 300mm
dk: 24.65mm
k: 5.38mm
v: 10.58mm
f: 6.60mm
b: Not specified by DIN 603 - please call us if you have any specific requirements
m: 8mm
s: 17mm
Material: Steel
Grade: 4.8 mild steel
Finish: Bright zinc plated
Supplied with nuts: Yes
DIN standard: DIN 603
Click here to view a full size table
Applications
Timber to timber applications, metal to timber applications, fencing, landscaping, roofing & construction.
Orders over £100 will qualify for free 2-3 working day delivery*. Orders under £100 will be subject to a carriage charge - please see below for our delivery options.
We offer a number of different nationwide* services. Please see below for our delivery options.
*Please note that orders to the Isle of Wight, the Isle of Man, the Scottish Isles, the Scottish Highlands, Northern Ireland and the Channel Isles will incur a carriage surcharge.
*Long items greater than or equal to 1.5M in length will be subject to a length surcharge of £12. This surcharge is per shipment, and not per item.
Orders placed before 15:00 with next working day/timed services, Saturday & Royal Mail Special Delivery services will be dispatched the same day (Monday to Friday). Orders placed with any of these services after 15:00 will not be dispatched until the next working day. Orders placed on Saturdays, Sundays or bank holidays will be dispatched on the next working day. Next working day means Monday - Friday, excluding bank holidays. Orders placed with any of the aforementioned services will not be delivered on a Saturday or Sunday. For Saturday deliveries, select 'Saturday Delivery' in the basket.
We aim to despatch all orders with standard services within 2 working days, as long as all of the items are in stock.
We offer the following delivery services:
^Orders placed before 15:00 with next working day/timed services, Saturday & Royal Mail Special Delivery services will be dispatched the same day (Monday to Friday). Orders placed after 15:00 will not be dispatched until the next working day. Orders placed on Saturdays, Sundays or bank holidays will be dispatched on the next working day. Next working day means Monday - Friday, excluding bank holidays. Orders placed with any of the aforementioned services will not be delivered on a Saturday or Sunday. For Saturday deliveries, select 'Saturday Delivery' in the basket.
^^Royal Mail services are only offered to basket weights up to and including 2 kilos only. The 1pm & 9am Special Delivery times are for UK mainland only and will vary for Northern Ireland, Highlands & Islands. Please view the Royal Mail website for full details.
Please note that orders to the Isle of Wight, the Isle of Man, the Scottish Isles, the Scottish Highlands, Northern Ireland and the Channel Isles will incur a carriage surcharge.
Long items greater than or equal to 1.5M in length will be subject to a length surcharge of £12. This surcharge is per shipment, and not per item.
All orders are available for collection from our stores. Collection orders will normally be ready within 2 hours of the order being placed, as long as all items are in stock at the time of order.
TC Fixings offers a free van delivery service to Saffron Walden and the surrounding villages.
|
|
|
|
Quantity WarningPlease be aware that this product only sold in multiples of 0.
Dia: M6
Length: 20mm
SKU: CSH06020
142 In Stock
£0.09
EACH
Dia: M6
Length: 25mm
SKU: CSH06025
293 In Stock
£0.07
EACH
Dia: M6
Length: 30mm
SKU: CSH06030
157 In Stock
£0.11
EACH
Dia: M6
Length: 40mm
SKU: CSH06040
242 In Stock
£0.09
EACH
Dia: M6
Length: 50mm
SKU: CSH06050
319 In Stock
£0.13
EACH
Dia: M6
Length: 60mm
SKU: CSH06060
810 In Stock
£0.12
EACH
Dia: M6
Length: 65mm
SKU: CSH06065
75 In Stock
£0.13
EACH
Dia: M6
Length: 70mm
SKU: CSH06070
448 In Stock
£0.17
EACH
Dia: M6
Length: 75mm
SKU: CSH06075
300 In Stock
£0.17
EACH
Dia: M6
Length: 80mm
SKU: CSH06080
346 In Stock
£0.17
EACH
Dia: M6
Length: 90mm
SKU: CSH06090
292 In Stock
£0.17
EACH
Dia: M6
Length: 100mm
SKU: CSH06100
139 In Stock
£0.21
EACH
Dia: M6
Length: 130mm
SKU: CSH06130
431 In Stock
£0.19
EACH
Dia: M6
Length: 150mm
SKU: CSH06150
363 In Stock
£0.30
EACH
Dia: M8
Length: 30mm
SKU: CSH08030
173 In Stock
£0.16
EACH
Dia: M8
Length: 40mm
SKU: CSH08040
694 In Stock
£0.19
EACH
Dia: M8
Length: 45mm
SKU: CSH08045
207 In Stock
£0.18
EACH
Dia: M8
Length: 50mm
SKU: CSH08050
4054 In Stock
£0.19
EACH
Dia: M8
Length: 55mm
SKU: CSH08055
98 In Stock
£0.21
EACH
Dia: M8
Length: 60mm
SKU: CSH08060
369 In Stock
£0.23
EACH
Dia: M8
Length: 65mm
SKU: CSH08065
630 In Stock
£0.22
EACH
Dia: M8
Length: 70mm
SKU: CSH08070
345 In Stock
£0.23
EACH
Dia: M8
Length: 80mm
SKU: CSH08080
434 In Stock
£0.36
EACH
Dia: M8
Length: 90mm
SKU: CSH08090
276 In Stock
£0.30
EACH
Dia: M8
Length: 100mm
SKU: CSH08100
247 In Stock
£0.33
EACH
Dia: M8
Length: 110mm
SKU: CSH08110
362 In Stock
£0.28
EACH
Dia: M8
Length: 130mm
SKU: CSH08130
234 In Stock
£0.28
EACH
Dia: M8
Length: 150mm
SKU: CSH08150
382 In Stock
£0.41
EACH
Dia: M8
Length: 160mm
SKU: CSH08160
357 In Stock
£0.37
EACH
Dia: M8
Length: 180mm
SKU: CSH08180
495 In Stock
£0.55
EACH
Dia: M8
Length: 200mm
SKU: CSH08200
125 In Stock
£0.67
EACH
Dia: M8
Length: 240mm
SKU: CSH08240
6830 In Stock
£0.70
EACH
Dia: M10
Length: 20mm
SKU: CSH10020
45 In Stock
£0.20
EACH
Dia: M10
Length: 30mm
SKU: CSH10030
225 In Stock
£0.30
EACH
Dia: M10
Length: 40mm
SKU: CSH10040
289 In Stock
£0.32
EACH
Dia: M10
Length: 50mm
SKU: CSH10050
213 In Stock
£0.35
EACH
Dia: M10
Length: 60mm
SKU: CSH10060
228 In Stock
£0.32
EACH
Dia: M10
Length: 75mm
SKU: CSH10075
328 In Stock
£0.41
EACH
Dia: M10
Length: 80mm
SKU: CSH10080
313 In Stock
£0.47
EACH
Dia: M10
Length: 90mm
SKU: CSH10090
238 In Stock
£0.49
EACH
Dia: M10
Length: 100mm
SKU: CSH10100
344 In Stock
£0.43
EACH
Dia: M10
Length: 110mm
SKU: CSH10110
350 In Stock
£0.48
EACH
Dia: M10
Length: 130mm
SKU: CSH10130
367 In Stock
£0.53
EACH
Dia: M10
Length: 150mm
SKU: CSH10150
407 In Stock
£0.55
EACH
Dia: M10
Length: 160mm
SKU: CSH10160
168 In Stock
£0.59
EACH
Dia: M10
Length: 180mm
SKU: CSH10180
277 In Stock
£0.58
EACH
Dia: M10
Length: 200mm
SKU: CSH10200
372 In Stock
£0.67
EACH
Dia: M10
Length: 220mm
SKU: CSH10220
116 In Stock
£0.74
EACH
Dia: M10
Length: 230mm
SKU: CSH10230
288 In Stock
£0.77
EACH
Dia: M10
Length: 240mm
SKU: CSH10240
222 In Stock
£0.84
EACH
Dia: M10
Length: 260mm
SKU: CSH10260
132 In Stock
£0.86
EACH
Dia: M10
Length: 280mm
SKU: CSH10280
121 In Stock
£0.90
EACH
Dia: M10
Length: 300mm
SKU: CSH10300
274 In Stock
£1.13
EACH
Dia: M12
Length: 40mm
SKU: CSH12040
200 In Stock
£0.37
EACH
Dia: M12
Length: 50mm
SKU: CSH12050
525 In Stock
£0.41
EACH
Dia: M12
Length: 60mm
SKU: CSH12060
94 In Stock
£0.65
EACH
Dia: M12
Length: 75mm
SKU: CSH12075
400 In Stock
£0.65
EACH
Dia: M12
Length: 90mm
SKU: CSH12090
322 In Stock
£0.58
EACH
Dia: M12
Length: 100mm
SKU: CSH12100
362 In Stock
£0.60
EACH
Dia: M12
Length: 110mm
SKU: CSH12110
545 In Stock
£0.67
EACH
Dia: M12
Length: 120mm
SKU: CSH12120
280 In Stock
£0.72
EACH
Dia: M12
Length: 130mm
SKU: CSH12130
3979 In Stock
£0.62
EACH
Dia: M12
Length: 140mm
SKU: CSH12140
272 In Stock
£0.98
EACH
Dia: M12
Length: 150mm
SKU: CSH12150
3149 In Stock
£0.72
EACH
Dia: M12
Length: 180mm
SKU: CSH12180
3092 In Stock
£0.86
EACH
Dia: M12
Length: 200mm
SKU: CSH12200
3761 In Stock
£0.91
EACH
Dia: M12
Length: 220mm
SKU: CSH12220
354 In Stock
£1.03
EACH
Dia: M12
Length: 230mm
SKU: CSH12230
389 In Stock
£1.22
EACH
Dia: M12
Length: 240mm
SKU: CSH12240
326 In Stock
£1.26
EACH
Dia: M12
Length: 260mm
SKU: CSH12260
357 In Stock
£1.30
EACH
Dia: M12
Length: 280mm
SKU: CSH12280
412 In Stock
£1.18
EACH
Dia: M12
Length: 300mm
SKU: CSH12300
2467 In Stock
£1.20
EACH
Dia: M12
Length: 350mm
SKU: CSH12350
3837 In Stock
£3.15
EACH
Dia: M12
Length: 400mm
SKU: CSH12400
2852 In Stock
£3.57
EACH
Dia: M16
Length: 50mm
SKU: CSH16050
93 In Stock
£1.22
EACH
Dia: M16
Length: 100mm
SKU: CSH16100
26 In Stock
£1.60
EACH
Dia: M16
Length: 130mm
SKU: CSH16130
114 In Stock
£1.78
EACH
Dia: M16
Length: 150mm
SKU: CSH16150
12 In Stock
£2.27
EACH
Dia: M16
Length: 180mm
SKU: CSH16180
35 In Stock
£2.60
EACH
Dia: M16
Length: 200mm
SKU: CSH16200
106 In Stock
£2.72
EACH
Dia: M16
Length: 250mm
SKU: CSH16250
47 In Stock
£2.81
EACH
Dia: M16
Length: 280mm
SKU: CSH16280
128 In Stock
£2.98
EACH
Dia: M20
Length: 200mm
SKU: CSH20200
11 In Stock
£4.58
EACH
Dia: M20
Length: 300mm
SKU: CSH20300
32 In Stock
£5.93
EACH
