M10 x 70mm A2 Stainless Steel Coach Bolt DIN 603 (Carriage Bolt)

Alert

remove

Please enter the new quantity and click submit.

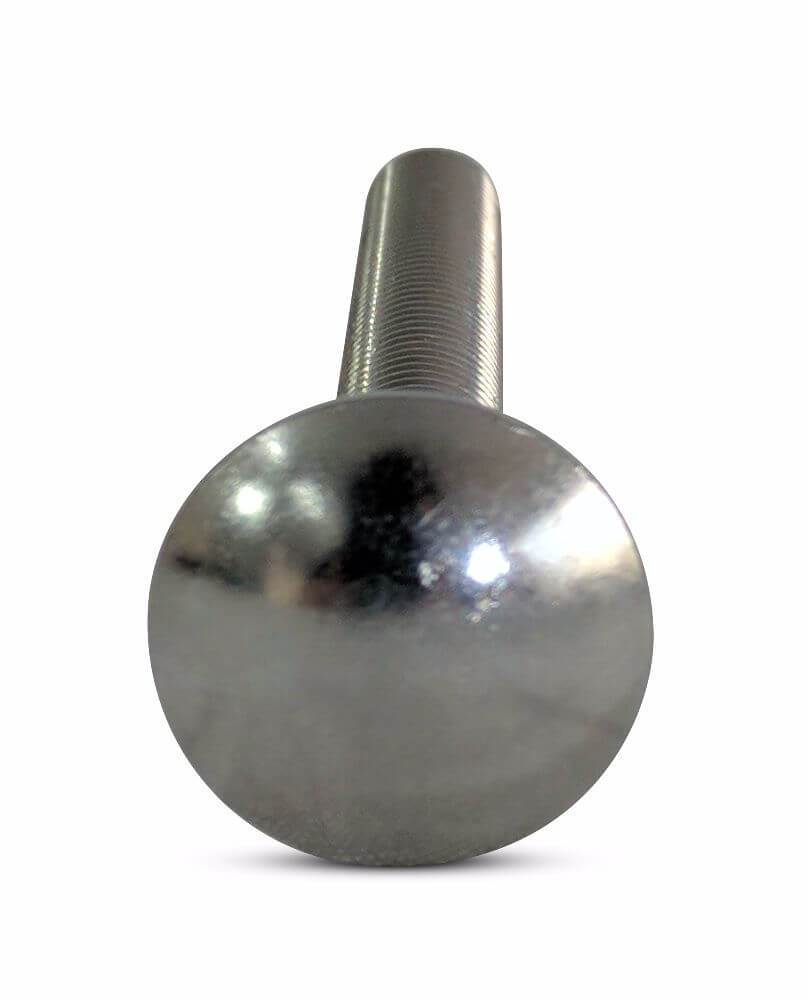

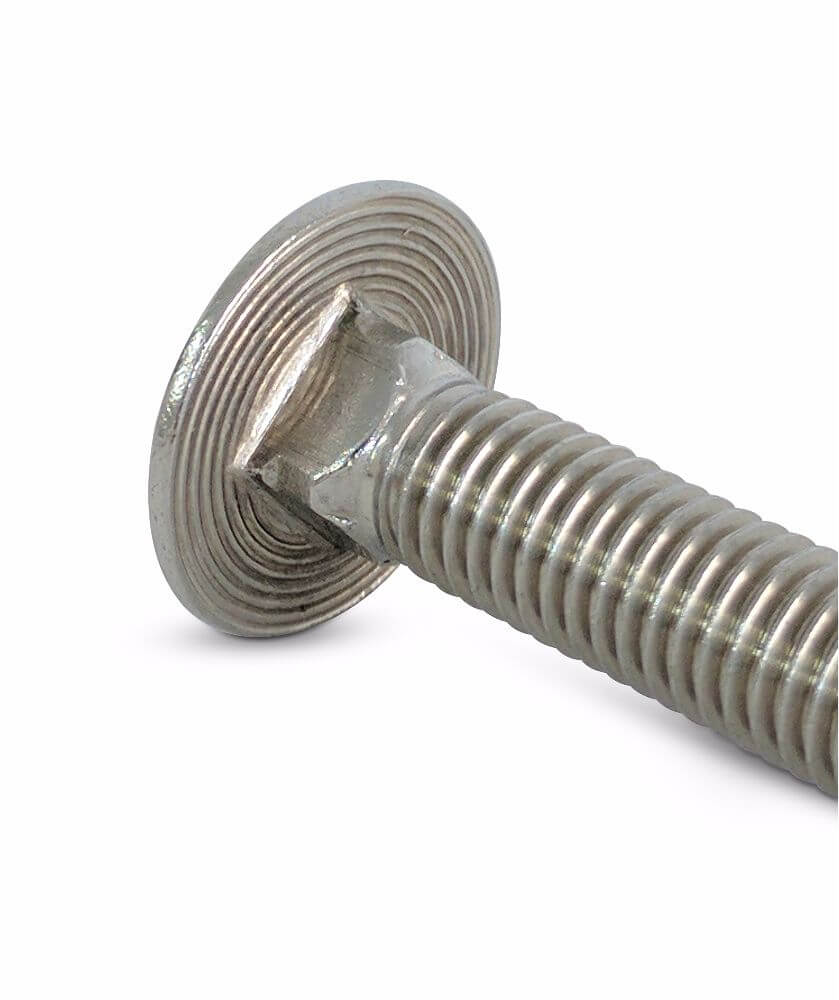

M10 x 70mm A2 (304) Stainless Steel Coach Bolt DIN 603

*Thread length is not standard - image is for illustration only*

  • Please contact us if you require full or partial thread
  • Rust resistant for exterior use
  • M10 x 1.50 pitch coarse thread


£ 0.81 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

50+

£0.71

100+

£0.61

QUANTITY:

272 IN STOCK


Coach bolts, also commonly known as carriage bolts or cup square hex, are a 'self locking' bolt used for timber to timber construction. The square underneath the head pulls into the timber and means you don't need to hold one side of the bolt with a wrench when tightening. Stainless steel coach bolts are a higher tensile strength than normal mild steel coach bolts, and so are not recommended for use in normal structural timber applications where joint movement needs to be accommodated. Stainless coach bolts and carriage bolts are ideal for exterior applications, or applications where the bolt will be exposed to excess moisture.

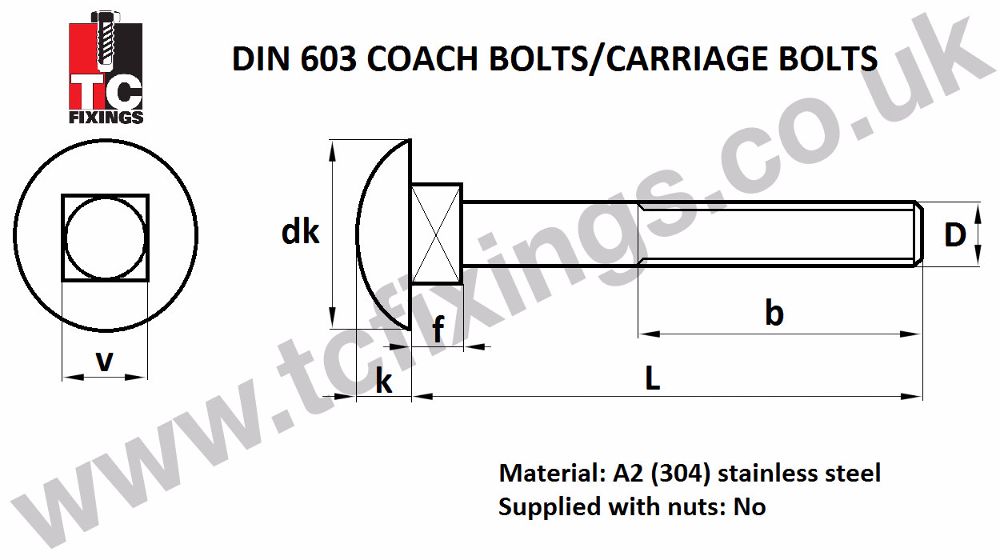

D: M10 x 1.50 pitch
L: 70mm
dk: 24.65mm
k: 5.38mm
v: 10.58mm
f: 6.60mm
b: Not specified by DIN 603 - please call us if you have any specific requirements
Material: Stainless steel
Grade: A2 (304)

Finish: Self colour
Supplied with nuts: No
DIN standard: DIN 603

Click here to view a full size table

Applications
Timber to timber applications, metal to timber applications, fencing, landscaping, roofing & construction, security.
