M10 x 80mm Stainless Steel Wood To Metal Dowels T25 Torx Drive | Stainless Hanger Bolts

Alert

remove

Please enter the new quantity and click submit.

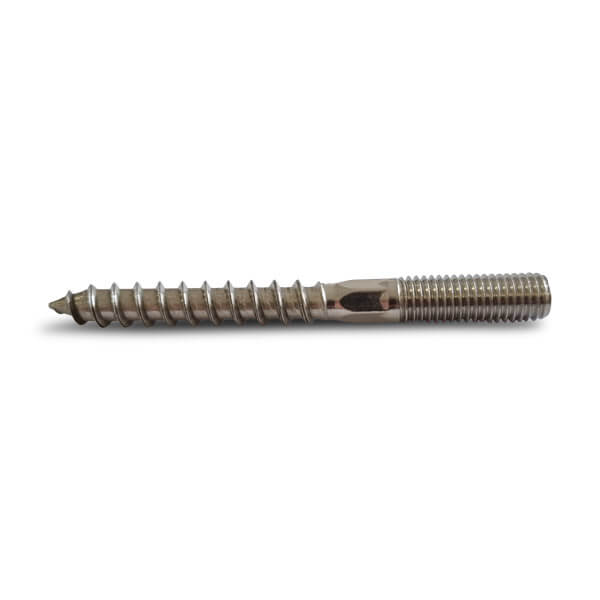

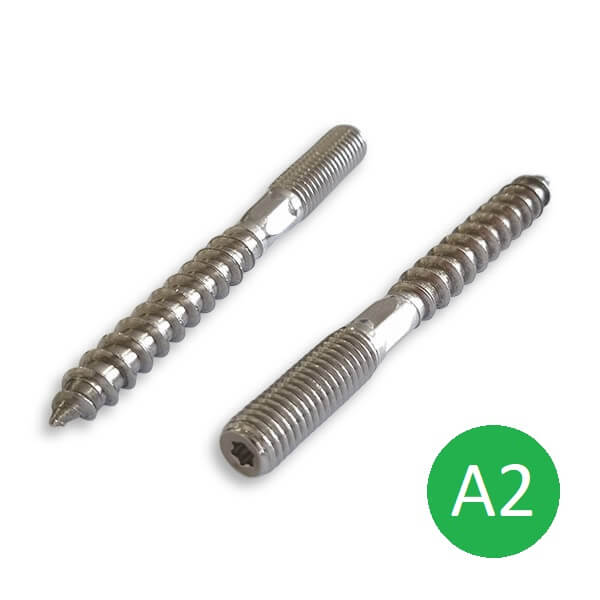

M10 x 80mm A2 Stainless T25 Wood to Metal Furniture Dowels

  • Across flats and torx drive for easy insertion
  • Also known as hanger bolts
  • Used in furniture assembly
OPTIONS:

£ 2.17 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

10+

£1.74

25+

£1.63

50+

£1.52

100+

£1.46

QUANTITY:

346 IN STOCK


Wood to metal dowels are an ingenious fixing that is used widely in the furniture industry. Wood to metal dowels, also known as hanger bolts, are a threaded stud with a wood screw thread at one end and a machine thread at the other. We also supply a range of threaded inserts and t-nuts to suit - please see the related items section below. These are stainless steel hanger bolts, made from A2 (304) stainless steel.

PLEASE NOTE:  A2 stainless has excellent corrosion resistance but it is much softer than carbon steel. A pilot drill is essential for use in hard woods such as oak, and we would recommend using one in all materials as best practice.


Features

  • Coarse wood screws thread one end and machine thread the other

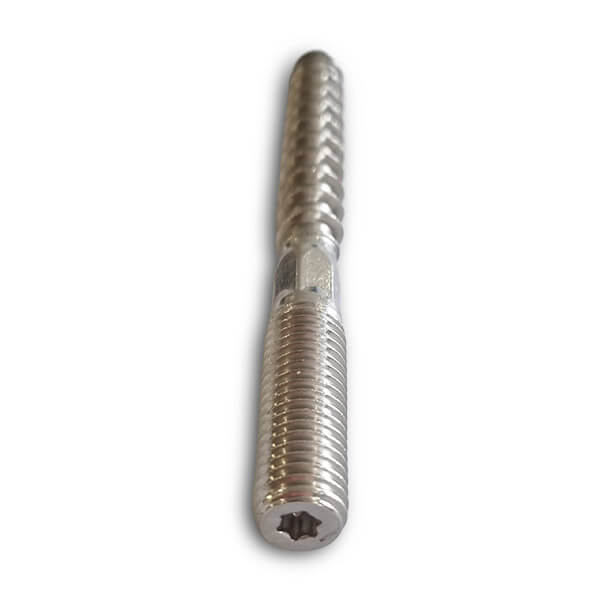

  • T25 Torx drive for easy insertion
  • A2 stainless steel

Specifics

Machine thread dia (d): M10 x 1.50p
Wood thread dia (d): 10mm
Overall length (L): 80mm
Machine thread length (lm): 20mm
Wood thread length (lh): 47mm
Torx recess (TX): TX25
Across flats (SW): 8mm AF spanner
Material: A2 (304) Stainless steel
Finish: Self-colour (no plating)

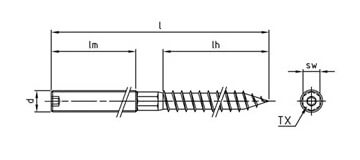

TECHNICAL LINE DRAWING OF STAINLESS STEEL WOOD TO METAL DOWEL HANGER BOLTS
