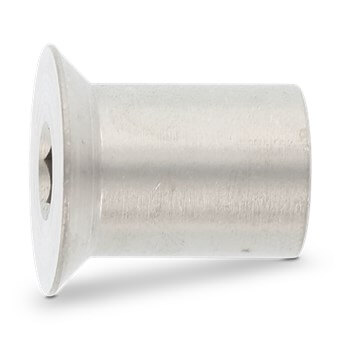

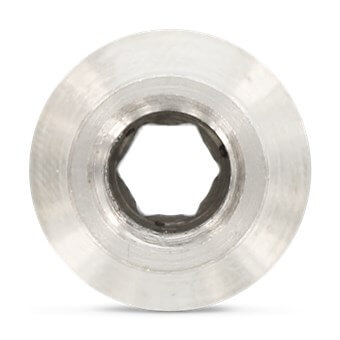

M12 x 20mm Stainless Steel Countersunk Furniture Connector Nut

Christmas Opening Hours

We will be closing at 1pm Mon 23rd December, re-opening at 8am on Thursday 2nd Jan

Hide

Alert

remove

Please enter the new quantity and click submit.





M12 x 20mm A1 SS Countersunk Socket Sleeve Nut

  • A1 stainless steel (AISI 303)
  • 8mm Hexagon socket drive
  • Countersunk head
SIZE:

£ 3.78 INC VAT (PRICED EACH)

£378.00 PER 100

(Include VAT?)

BULK QUANTITY DISCOUNTS:

10+

£321.30

25+

£283.50

100+

£264.60

QUANTITY:

186 IN STOCK


Countersunk connector nuts, also known as sleeve nuts, are commonly used in furniture assembly. These connector nuts have an M12 internal thread and are made from A1 stainless steel. They are compatible with any M12 metric coarse threaded fastener.


Features

  • A1 stainless steel (AISI 303)
  • Countersunk head with hexagon drive recess

Specifics

Internal thread dia (d): M12
Shank diameter (d2): 16mm
Head diameter (dk): 24mm
Head height (k): 4.4mm
Drive recess: 8mm Hex
Shank length (l1): 20mm
Internal thread length (l2): 12mm
Material: A1 (AISI 303) stainless steel
Finish: Self-colour (no plating)



technical line drawing of M12 stainless steel sleeve nuts connector nuts
