M12 x 80mm A2 Stainless Hex Head Coach Screws

Alert

remove

Please enter the new quantity and click submit.

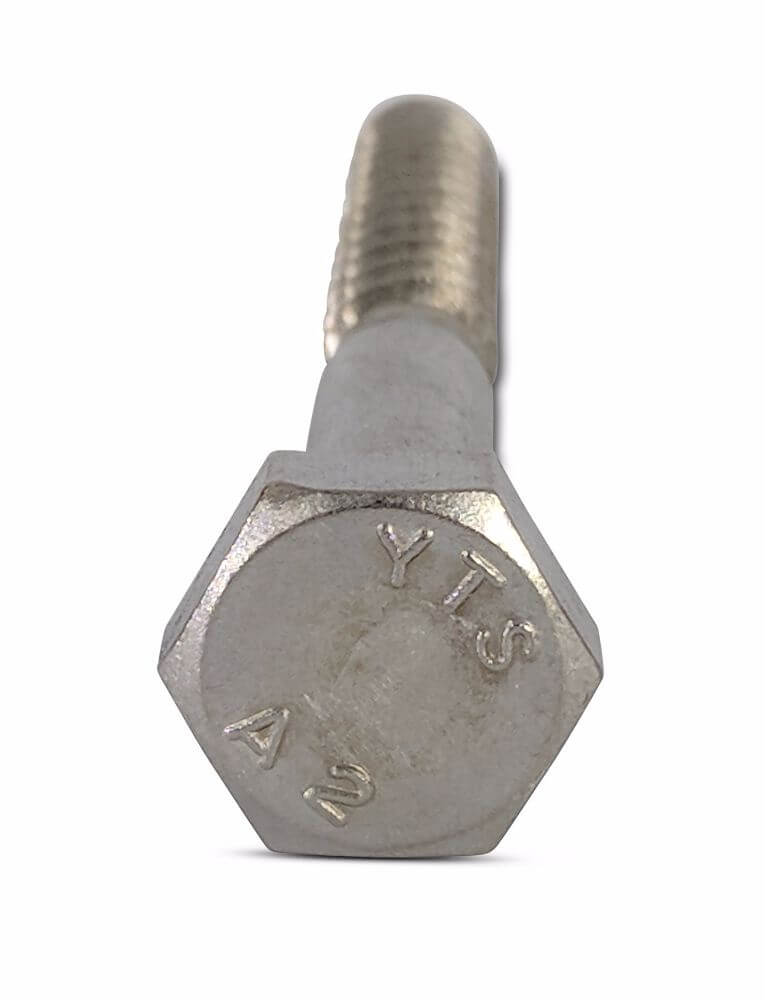

M12 x 80mm A2 Stainless Hex Head Coach Screws DIN 571

  • A2 (304) Stainless steel
  • Rust resistant for exterior use
  • 19mm Hexagon head


£ 1.03 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

50+

£0.95

100+

£0.81

QUANTITY:

170 IN STOCK


A Guide to Stainless Steel Lag Bolts and Their Uses

Coach screws (also known as lag screws or lag bolts) are essential heavy-duty fasteners primarily used in timber-to-timber construction. These robust screws feature a hexagonal head, making them ideal for high-torque applications. When you need extra strength and rust resistance for outdoor projectsstainless steel coach screws are a top choice, especially in environments with excess moisture.

Key Applications:

  • Securing metal plates or concrete posts to timber
  • Heavy-duty timber-to-timber applications
  • Fixing into masonry when used with a nylon plug
  • External applications, or for use in a corrosive environment

  • Essential when working with oak and other hardwoods with a high tannin content
  • Excellent rust resistance for outdoor use
  • Ideal for projects exposed to harsh weather or moisture

Important Note: While stainless steel offers excellent corrosion resistance, it’s softer than carbon steel. For best results, always use a pilot drill, especially in hard woods like oak.


Specifics

Diameter (d1): Ø12mm
Length from under head (L): 80mm
Head height (k): 8mm
Across flats (s): 19mm
Across points (e): 20.88mm
Thread length: See diagram for indication. Please call us for exact measurement of current stock as it varies by batch
Material: A2 (304) Stainless steel
Finish: Self colour (no plating)
Din standard: DIN 571

Click here to view a full size table

Technical line drawing of CS mild steel zinc plated coach screws
