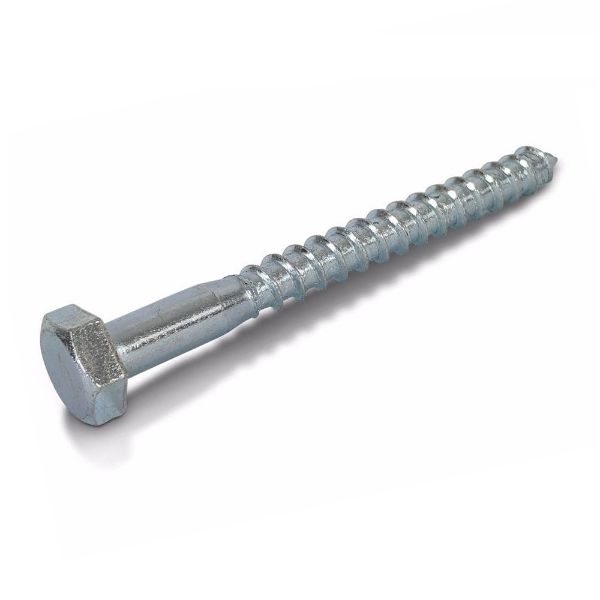

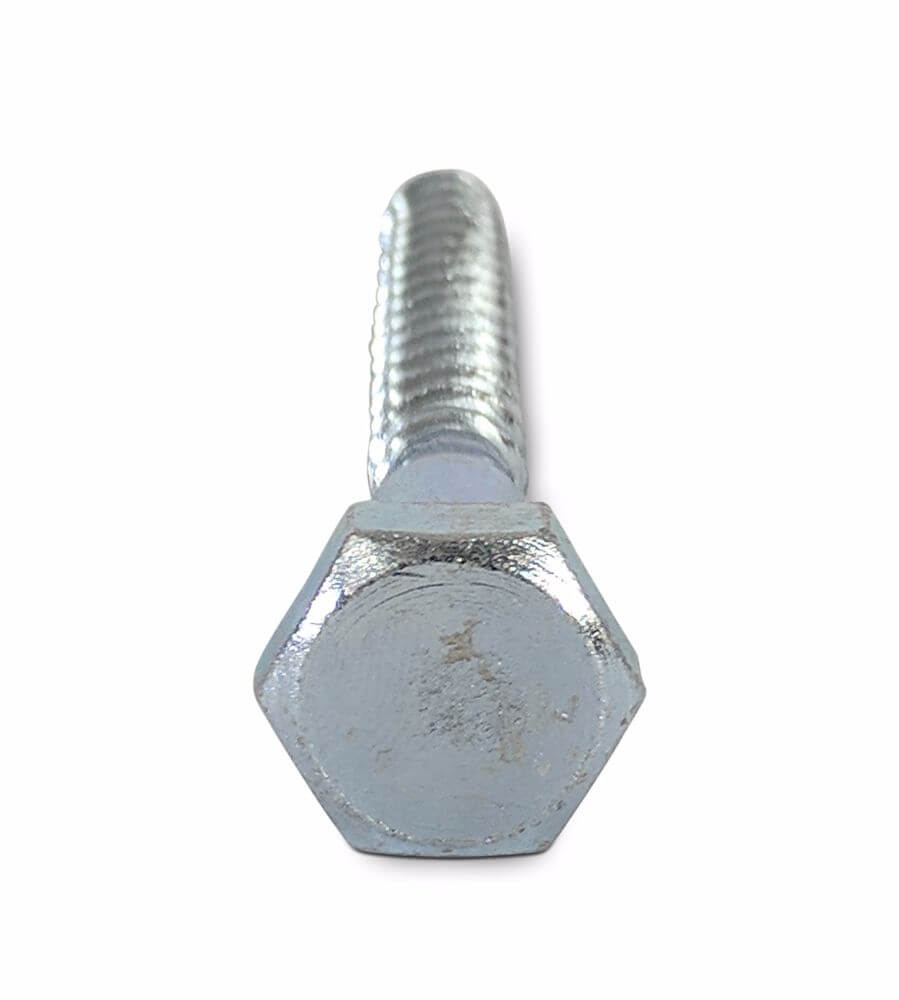

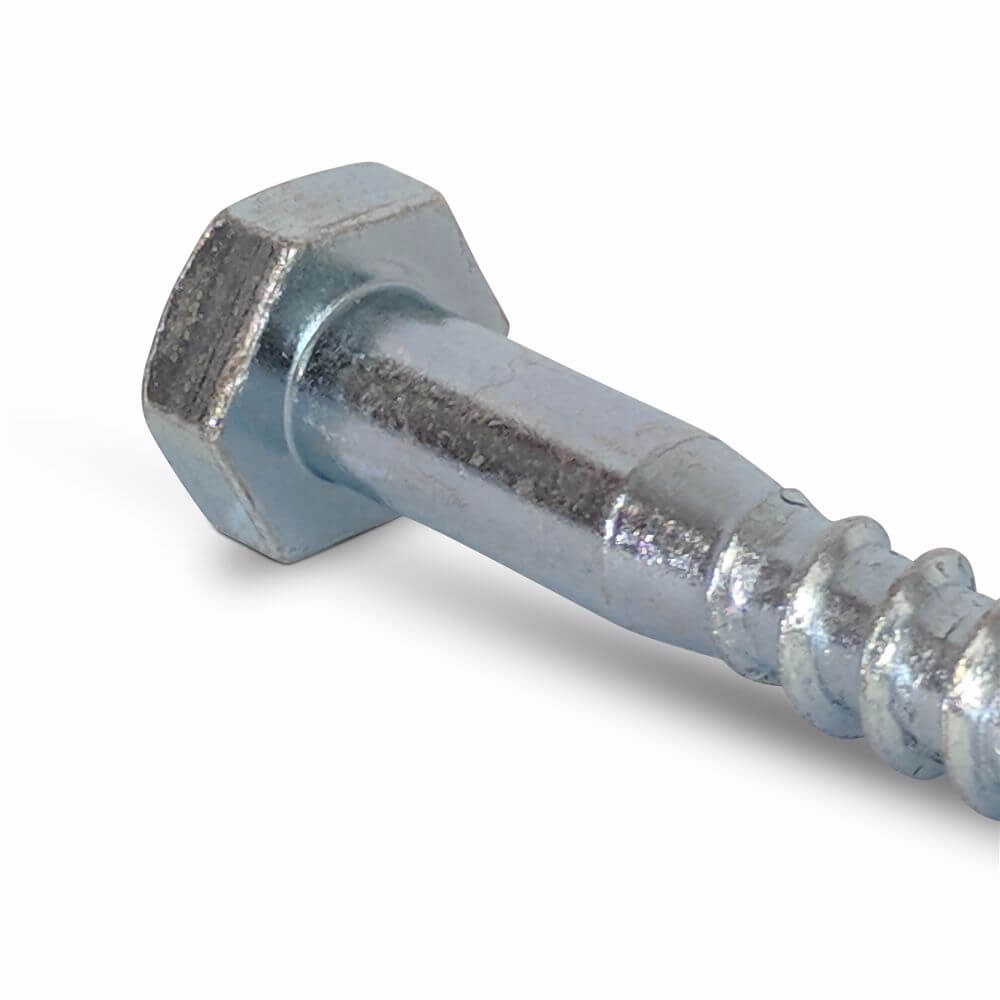

A Guide to Lag Bolts and Their Uses
Coach screws (also known as lag screws or lag bolts) are essential heavy-duty fasteners primarily used in timber-to-timber construction. These robust screws feature a hexagonal head, making them ideal for high-torque applications. Mild steel is relatively flexible and allows for movement in the timbers over time and ensures the screw will bend with the timbers and not shear.
Key Applications:
Specifics
Diameter (d1): Ø20mm
Length from under head (L): 180mm
Head height (k): 13mm
Across flats (s): 30mm
Across points (e): 32.95mm
Thread length: See diagram for indication. Please call us for exact measurement of current stock as it varies by batch
Material: Mild steel
Finish: Bright Zinc Plated
Din standard: DIN 571
Click here to view a full size tabl
Orders over £100 will qualify for free 2-3 working day delivery*. Orders under £100 will be subject to a carriage charge - please see below for our delivery options.
We offer a number of different nationwide* services. Please see below for our delivery options.
*Please note that orders to the Isle of Wight, the Isle of Man, the Scottish Isles, the Scottish Highlands, Northern Ireland and the Channel Isles will incur a carriage surcharge.
*Long items greater than or equal to 1.5M in length will be subject to a length surcharge of £12. This surcharge is per shipment, and not per item.
Orders placed before 15:00 with next working day/timed services, Saturday & Royal Mail Special Delivery services will be dispatched the same day (Monday to Friday). Orders placed with any of these services after 15:00 will not be dispatched until the next working day. Orders placed on Saturdays, Sundays or bank holidays will be dispatched on the next working day. Next working day means Monday - Friday, excluding bank holidays. Orders placed with any of the aforementioned services will not be delivered on a Saturday or Sunday. For Saturday deliveries, select 'Saturday Delivery' in the basket.
We aim to despatch all orders with standard services within 2 working days, as long as all of the items are in stock.
We offer the following delivery services:
^Orders placed before 15:00 with next working day/timed services, Saturday & Royal Mail Special Delivery services will be dispatched the same day (Monday to Friday). Orders placed after 15:00 will not be dispatched until the next working day. Orders placed on Saturdays, Sundays or bank holidays will be dispatched on the next working day. Next working day means Monday - Friday, excluding bank holidays. Orders placed with any of the aforementioned services will not be delivered on a Saturday or Sunday. For Saturday deliveries, select 'Saturday Delivery' in the basket.
^^Royal Mail services are only offered to basket weights up to and including 2 kilos only. The 1pm & 9am Special Delivery times are for UK mainland only and will vary for Northern Ireland, Highlands & Islands. Please view the Royal Mail website for full details.
Please note that orders to the Isle of Wight, the Isle of Man, the Scottish Isles, the Scottish Highlands, Northern Ireland and the Channel Isles will incur a carriage surcharge.
Long items greater than or equal to 1.5M in length will be subject to a length surcharge of £12. This surcharge is per shipment, and not per item.
All orders are available for collection from our stores. Collection orders will normally be ready within 2 hours of the order being placed, as long as all items are in stock at the time of order.
TC Fixings offers a free van delivery service to Saffron Walden and the surrounding villages.
|
|
|
|
Quantity WarningPlease be aware that this product only sold in multiples of 0.
Dia: M6 (6mm)
Length: 25mm
SKU: CS06025
164 In Stock
£0.05
EACH
Dia: M6 (6mm)
Length: 30mm
SKU: CS06030
100 In Stock
£0.06
EACH
Dia: M6 (6mm)
Length: 40mm
SKU: CS06040
72 In Stock
£0.07
EACH
Dia: M6 (6mm)
Length: 50mm
SKU: CS06050
151 In Stock
£0.07
EACH
Dia: M6 (6mm)
Length: 60mm
SKU: CS06060
259 In Stock
£0.08
EACH
Dia: M6 (6mm)
Length: 65mm
SKU: CS06065
258 In Stock
£0.10
EACH
Dia: M6 (6mm)
Length: 75mm
SKU: CS06075
542 In Stock
£0.09
EACH
Dia: M6 (6mm)
Length: 90mm
SKU: CS06090
125 In Stock
£0.18
EACH
Dia: M6 (6mm)
Length: 100mm
SKU: CS06100
155 In Stock
£0.14
EACH
Dia: M8 (8mm)
Length: 25mm
SKU: CS08025
170 In Stock
£0.11
EACH
Dia: M8 (8mm)
Length: 30mm
SKU: CS08030
310 In Stock
£0.16
EACH
Dia: M8 (8mm)
Length: 40mm
SKU: CS08040
489 In Stock
£0.11
EACH
Dia: M8 (8mm)
Length: 50mm
SKU: CS08050
820 In Stock
£0.12
EACH
Dia: M8 (8mm)
Length: 65mm
SKU: CS08065
389 In Stock
£0.16
EACH
Dia: M8 (8mm)
Length: 70mm
SKU: CS08070
266 In Stock
£0.16
EACH
Dia: M8 (8mm)
Length: 75mm
SKU: CS08075
389 In Stock
£0.18
EACH
Dia: M8 (8mm)
Length: 90mm
SKU: CS08090
297 In Stock
£0.17
EACH
Dia: M8 (8mm)
Length: 100mm
SKU: CS08100
300 In Stock
£0.20
EACH
Dia: M8 (8mm)
Length: 110mm
SKU: CS08110
107 In Stock
£0.26
EACH
Dia: M8 (8mm)
Length: 120mm
SKU: CS08120
130 In Stock
£0.25
EACH
Dia: M8 (8mm)
Length: 130mm
SKU: CS08130
200 In Stock
£0.40
EACH
Dia: M8 (8mm)
Length: 150mm
SKU: CS08150
107 In Stock
£0.37
EACH
Dia: M10 (10mm)
Length: 30mm
SKU: CS10030
268 In Stock
£0.16
EACH
Dia: M10 (10mm)
Length: 40mm
SKU: CS10040
488 In Stock
£0.20
EACH
Dia: M10 (10mm)
Length: 50mm
SKU: CS10050
472 In Stock
£0.24
EACH
Dia: M10 (10mm)
Length: 60mm
SKU: CS10060
477 In Stock
£0.24
EACH
Dia: M10 (10mm)
Length: 65mm
SKU: CS10065
110 In Stock
£0.27
EACH
Dia: M10 (10mm)
Length: 70mm
SKU: CS10070
390 In Stock
£0.32
EACH
Dia: M10 (10mm)
Length: 75mm
SKU: CS10075
266 In Stock
£0.36
EACH
Dia: M10 (10mm)
Length: 80mm
SKU: CS10080
65 In Stock
£0.29
EACH
Dia: M10 (10mm)
Length: 90mm
SKU: CS10090
242 In Stock
£0.31
EACH
Dia: M10 (10mm)
Length: 100mm
SKU: CS10100
197 In Stock
£0.35
EACH
Dia: M10 (10mm)
Length: 110mm
SKU: CS10110
117 In Stock
£0.36
EACH
Dia: M10 (10mm)
Length: 120mm
SKU: CS10120
279 In Stock
£0.61
EACH
Dia: M10 (10mm)
Length: 130mm
SKU: CS10130
192 In Stock
£0.54
EACH
Dia: M10 (10mm)
Length: 150mm
SKU: CS10150
399 In Stock
£0.51
EACH
Dia: M10 (10mm)
Length: 160mm
SKU: CS10160
268 In Stock
£0.57
EACH
Dia: M10 (10mm)
Length: 180mm
SKU: CS10180
139 In Stock
£0.60
EACH
Dia: M10 (10mm)
Length: 200mm
SKU: CS10200
95 In Stock
£0.75
EACH
Dia: M10 (10mm)
Length: 240mm
SKU: CS10240
108 In Stock
£1.40
EACH
Dia: M10 (10mm)
Length: 260mm
SKU: CS10260
50 In Stock
£1.41
EACH
Dia: M10 (10mm)
Length: 280mm
SKU: CS10280
50 In Stock
£1.42
EACH
Dia: M10 (10mm)
Length: 300mm
SKU: CS10300
100 In Stock
£1.49
EACH
Dia: M12 (12mm)
Length: 40mm
SKU: CS12040
154 In Stock
£0.30
EACH
Dia: M12 (12mm)
Length: 50mm
SKU: CS12050
400 In Stock
£0.31
EACH
Dia: M12 (12mm)
Length: 60mm
SKU: CS12060
404 In Stock
£0.31
EACH
Dia: M12 (12mm)
Length: 70mm
SKU: CS12070
84 In Stock
£0.36
EACH
Dia: M12 (12mm)
Length: 75mm
SKU: CS12075
10 In Stock
£0.34
EACH
Dia: M12 (12mm)
Length: 80mm
SKU: CS12080
202 In Stock
£0.41
EACH
Dia: M12 (12mm)
Length: 100mm
SKU: CS12100
380 In Stock
£0.44
EACH
Dia: M12 (12mm)
Length: 120mm
SKU: CS12120
133 In Stock
£0.48
EACH
Dia: M12 (12mm)
Length: 130mm
SKU: CS12130
208 In Stock
£0.58
EACH
Dia: M12 (12mm)
Length: 150mm
SKU: CS12150
120 In Stock
£0.63
EACH
Dia: M12 (12mm)
Length: 180mm
SKU: CS12180
3339 In Stock
£1.05
EACH
Dia: M12 (12mm)
Length: 200mm
SKU: CS12200
161 In Stock
£1.29
EACH
Dia: M12 (12mm)
Length: 220mm
SKU: CS12220
112 In Stock
£1.56
EACH
Dia: M12 (12mm)
Length: 240mm
SKU: CS12240
122 In Stock
£1.66
EACH
Dia: M12 (12mm)
Length: 260mm
SKU: CS12260
106 In Stock
£1.99
EACH
Dia: M12 (12mm)
Length: 300mm
SKU: CS12300
8 In Stock
£2.64
EACH
Dia: M12 (12mm)
Length: 340mm
SKU: CS12340
48 In Stock
£3.12
EACH
Dia: M12 (12mm)
Length: 380mm
SKU: CS12380
50 In Stock
£3.60
EACH
Dia: M16 (16mm)
Length: 100mm
SKU: CS16100
40 In Stock
£1.80
EACH
Dia: M16 (16mm)
Length: 130mm
SKU: CS16130
1 In Stock
£2.16
EACH
Dia: M16 (16mm)
Length: 150mm
SKU: CS16150
50 In Stock
£2.52
EACH
Dia: M16 (16mm)
Length: 200mm
SKU: CS16200
93 In Stock
£3.00
EACH
Dia: M20 (20mm)
Length: 150mm
SKU: CS20150
50 In Stock
£2.29
EACH
Dia: M20 (20mm)
Length: 180mm
SKU: CS20180
26 In Stock
£2.73
EACH
Dia: M20 (20mm)
Length: 200mm
SKU: CS20200
58 In Stock
£3.05
EACH
