M3 x 7mm Stainless Steel Countersunk Furniture Connector Nut

Alert

remove

Please enter the new quantity and click submit.





M3 x 7mm A1 SS Countersunk Socket Sleeve Nut

  • A1 stainless steel (AISI 303)
  • 2mm Hexagon socket drive
  • Countersunk head
SIZE:

£ 1.24 INC VAT (PRICED EACH)

£124.34 PER 100

(Include VAT?)

BULK QUANTITY DISCOUNTS:

10+

£105.69

25+

£93.26

100+

£87.04

QUANTITY:

186 IN STOCK


Countersunk connector nuts, also known as sleeve nuts, are commonly used in furniture assembly. These connector nuts have an M3 internal thread and are made from A1 stainless steel. They are compatible with any M3 metric coarse threaded fastener.


Features

  • A1 stainless steel (AISI 303)
  • Countersunk head with hexagon drive recess

Specifics

Internal thread dia (d): M3
Shank diameter (d2): 4.5mm
Head diameter (dk): 6mm
Head height (k): 0.8mm
Drive recess: 2mm Hex
Shank length (l1): 7mm
Internal thread length (l2): 4mm
Material: A1 (AISI 303) stainless steel
Finish: Self-colour (no plating)

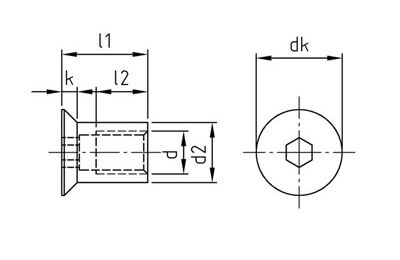

technical line drawing of M3 stainless steel sleeve nuts connector nuts
