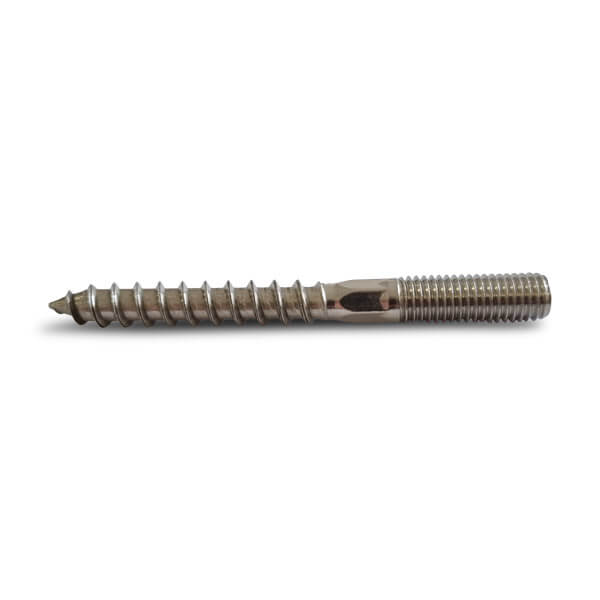

M6 x 60mm Stainless Steel Wood To Metal Dowels T15 Torx Drive

Description
Delivery

Wood to metal dowels are an ingenious fixing that is used widely in the furniture industry. Wood to metal dowels, also known as hanger bolts, are a threaded stud with a wood screw thread at one end and a machine thread at the other. We also supply a range of threaded inserts and t-nuts to suit - please see the related items section below. These are stainless steel hanger bolts, made from A2 (304) stainless steel.

PLEASE NOTE: A2 stainless has excellent corrosion resistance but it is much softer than carbon steel. A pilot drill is essential for use in hard woods such as oak, and we would recommend using one in all materials as best practice.

Features

Coarse wood screws thread one end and machine thread the other

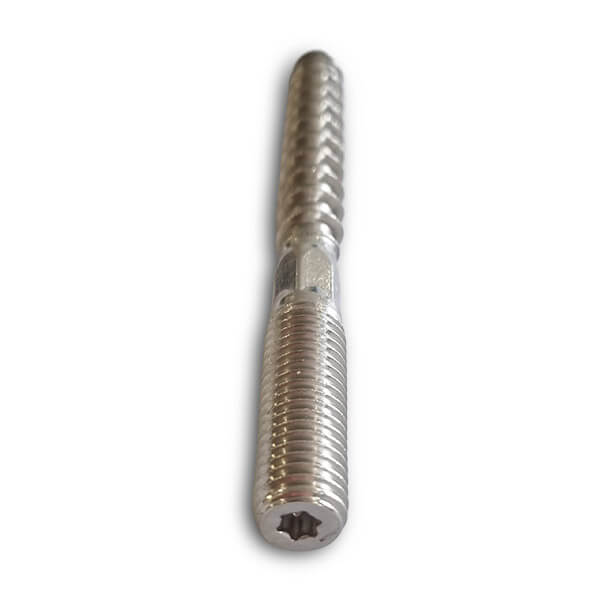

T15 Torx drive for easy insertion
A2 stainless steel

Specifics

Machine thread dia (d): M6 x 1.00p
Wood thread dia (d): 6mm
Overall length (L): 60mm
Machine thread length (lm): 20mm
Wood thread length (lh): 37mm
Torx recess (TX): TX15
Across flats (SW)*: N/A - no spanner surface between threads
Material: A2 (304) Stainless steel
Finish: Self-colour (no plating)

* Ø6mm have no spanner surface between the threads

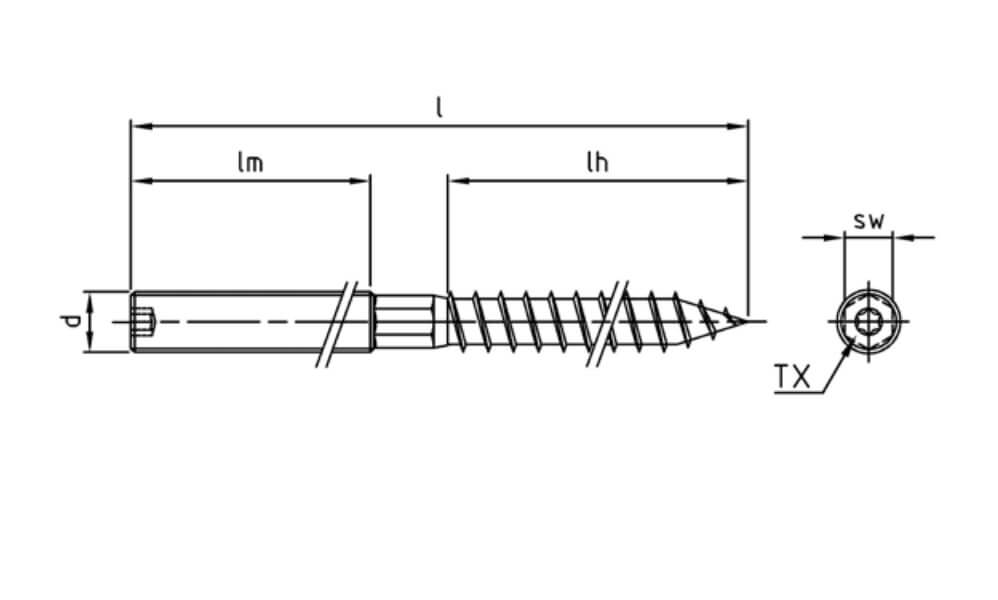

TECHNICAL LINE DRAWING OF STAINLESS STEEL WOOD TO METAL DOWEL HANGER BOLTS
