Evolution PH2 CSK Wing Tip Self-Drilling TEK-3 Screws BZP 4.8 x 38mm ZWDP38-3

Description
Delivery

Evolution TEK-3 wing tipped tek screws are specifically designed for fixing timber to metal substrates from 1.2mm to 3.5mm thick. No need to pre-drill thanks to the sharp drill point, however for very hard substrates a small pilot hole can be used to speed up insertion speed. These tek screws have an economy zinc coating for interior and sheltered applications.

Features

Self-drilling point to drill through up to 3.5mm steel
Coarse self-tapping thread for extreme grip & excellent pull out
Economy zinc coated
PH2 phillips drive

Specifics

External thread dia: 4.8mm
Drive recess: PH2
Length (l): 38mm
Head diameter (dk): 9.5mm
Head height (k): 3.15mm
Fixture thickness: Up to 20mm
Recommended drill speed: 1500 - 2500 rpm
Drill point: TEK 3
Material: AISI C1022 grade steel
Finish: Zinc CR-3
Suitable for steel thickness: 1.2mm - 3.5mm
Fixes material / to: Timber & plasterboard / steel

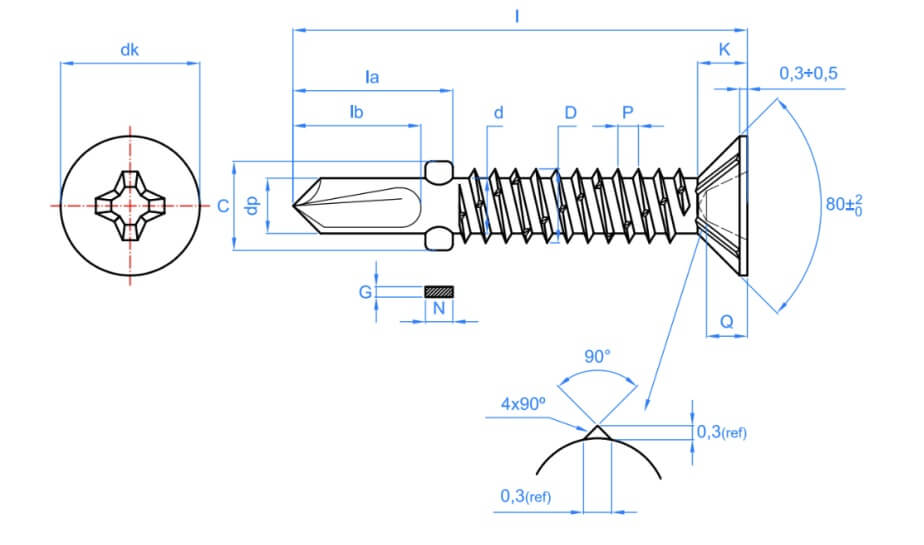

Technical line drawing of wing tip tek screw
