Buy Simpson Restraint Straps | Simpson 2000mm Bent 100 Heavy Duty Strap H20B10

Alert

remove

Please enter the new quantity and click submit.

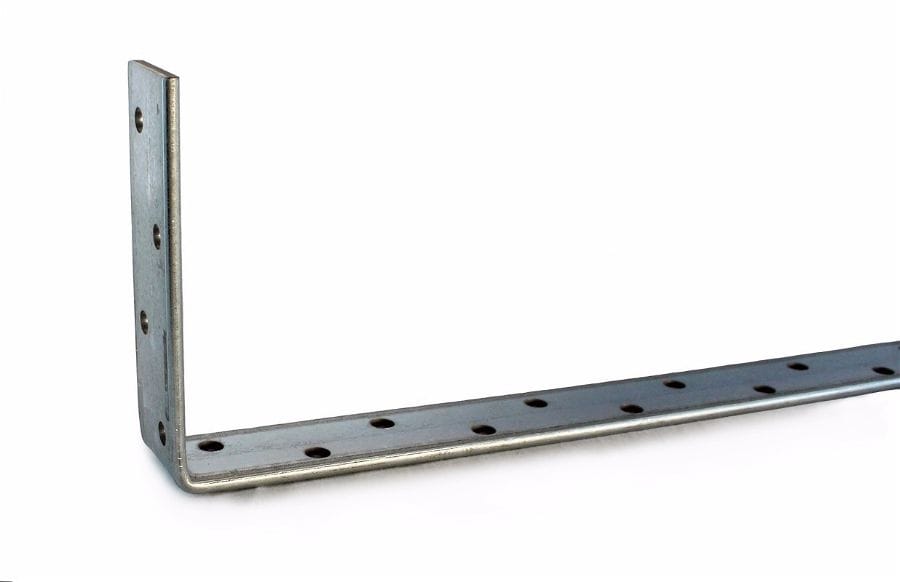

Simpson 2000 x 30 x 4mm Heavy Restraint Strap Bent 100

  • 4mm Thick pre-galvanised mild steel
  • Simpson part number: H20B10
  • Designed for horizontal loads
SIZE:

£ 19.72 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

10+

£17.92

50+

£16.13

QUANTITY:

OUT OF STOCK

OUT OF STOCK - PLEASE ALLOW 2 WEEKS PLUS DELIVERY SERVICE


Restraint straps are commonly used in roofing applications and are designed for vertical & horizontal restraint when connecting timber flooring & roofing systems to masonry walls. Restraint straps, also commonly called holding down straps, come in two grades - light duty & heavy duty. Light duty straps are for vertical restraint and heavy-duty straps are for lateral restraint, as per current building regulations - BS 5268 Part 3


Technical Data

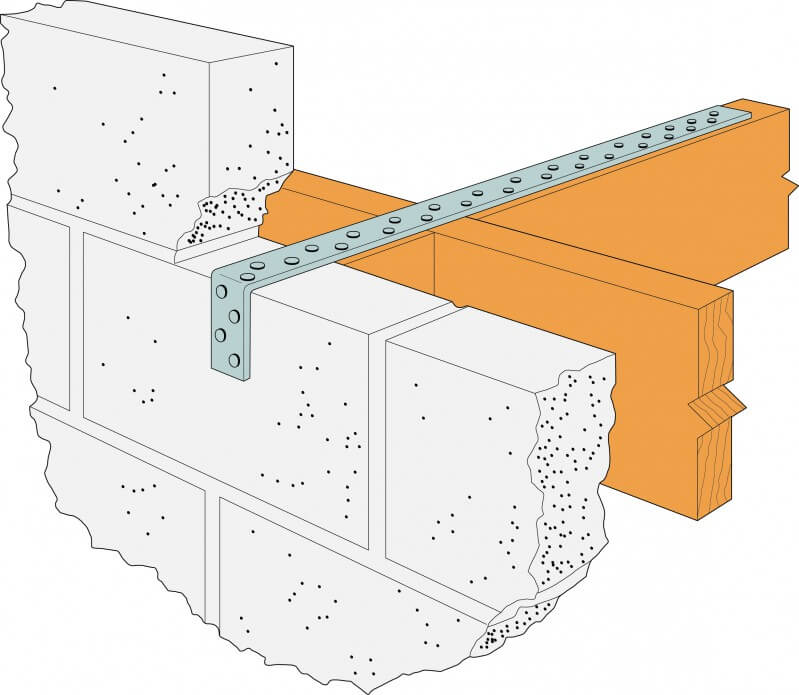

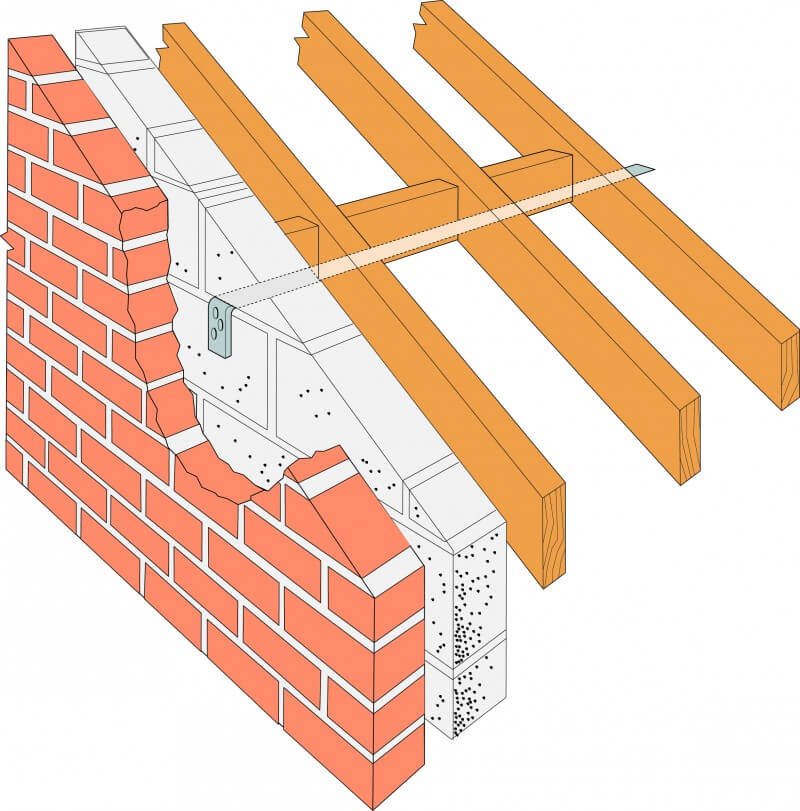

Installation (for lateral restraint)

  • Horizontal lateral restraint straps should be spaced not more than 2m centres and attached to at least 3 timber members through the use of noggings and packing
  • Attach to timber members using a minimum of 8 no. 3.75 x 30mm square twist nails
  • The bend length should be a minimum of 100mm and should be positioned at the centre of an uncut block or brick

Specifics

Width: 30mm
Overall length (B): 2000mm
Length of bend (B1): 100mm
Thickness: 4.0mm +/- 0.5mm
Type: Heavy duty - for lateral restraint
Material: Pre-galvanised mild steel
Hole dia: 6.0mm

Technical line drawing of Simpson light duty restraint strap
