Buy Simpson Restraint Straps | Simpson 500mm Twisted 100 Light Duty Strap L05T10

Alert

remove

Please enter the new quantity and click submit.





Simpson 500 x 30 x 2mm Light Restraint Strap Twist 100

  • 2mm Thick pre-galvanised mild steel
  • Simpson part number: L05T10
  • Designed for vertical loads
SIZE:

£ 1.48 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

10+

£1.34

50+

£1.21

QUANTITY:

6 IN STOCK


Restraint straps are commonly used in roofing applications and are designed for vertical & horizontal restraint when connecting timber flooring & roofing systems to masonry walls. Restraint straps, also commonly called holding down straps, come in two grades - light duty & heavy duty. Light duty straps are for vertical restraint and heavy-duty straps are for lateral restraint, as per current building regulations - BS 5268 Part 3


Technical Data


Installation (for vertical restraint)

  • Vertical restraint strapping should be at least 1m long.
  • Where straps are fixed to masonry, hardened nails Ø4mm x 75mm long or wood screws #12 x 50mm long into plastic plugs should be used
  • The number of fixings should be in accordance with the design requirements and the lowest fixing should be located within 150mm of the bottom of the vertical strap

Specifics

Width: 30mm
Overall length (B): 500mm
Length above twist (T): 100mm
Thickness: 2.0mm +/- 0.5mm
Type: Light duty - for vertical restraint
Material: Pre-galvanised mild steel
Hole dia: 6.0mm

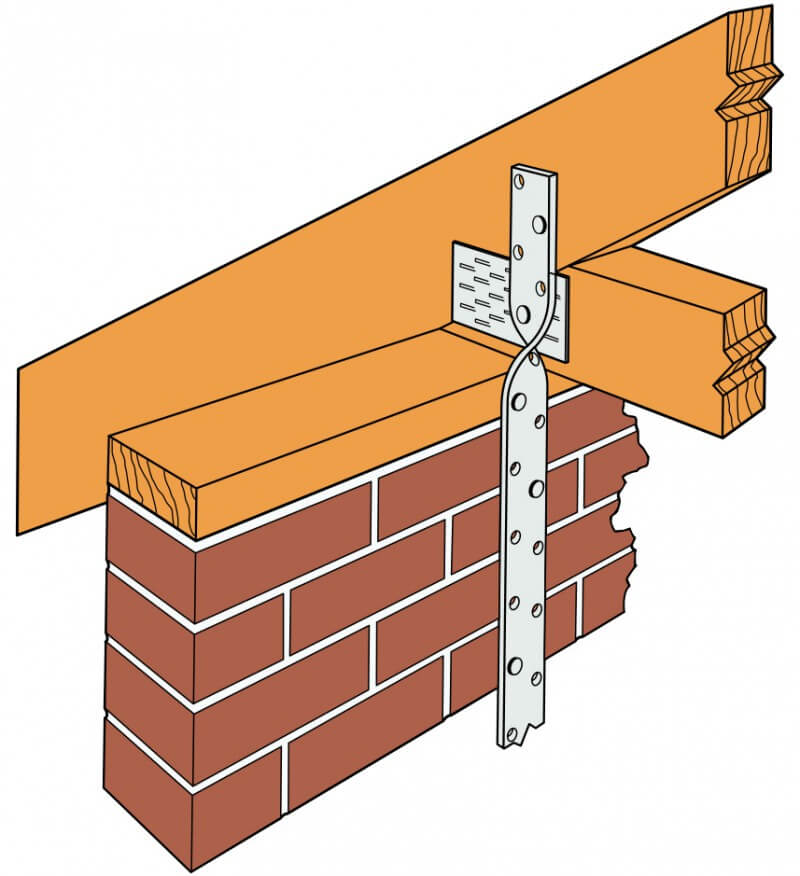

Technical line drawing of Simpson light duty restraint strap
