Buy Simpson Restraint Straps | Simpson 600mm Bent 100 Heavy Engineered Strap HES06B10

Alert

remove

Please enter the new quantity and click submit.





Simpson Heavy Engineered Strap 600mm Bent 100

  • A direct replacement for traditional straps
  • Simpson part number: HES06B10
  • Designed for horizontal loads
SIZE:

£ 2.24 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

10+

£1.86

50+

£1.63

QUANTITY:

20 IN STOCK


Simpson engineered restraint straps are a direct replacement for traditional 2.5mm / 5mm thick straps. They have a formed edge which gives the strap additional strength on the bend. The innovative design of these straps allows easier installation & handling whilst still maintaining the structural strength of much heavier strap types. HES straps are less than 40% of the weight of traditional straps, and the reduced thickness of 1.5mm allows the strap to span over the top of floor joists without the need for notching. Simpson engineered straps comply with BS EN 845-1.


Technical Data

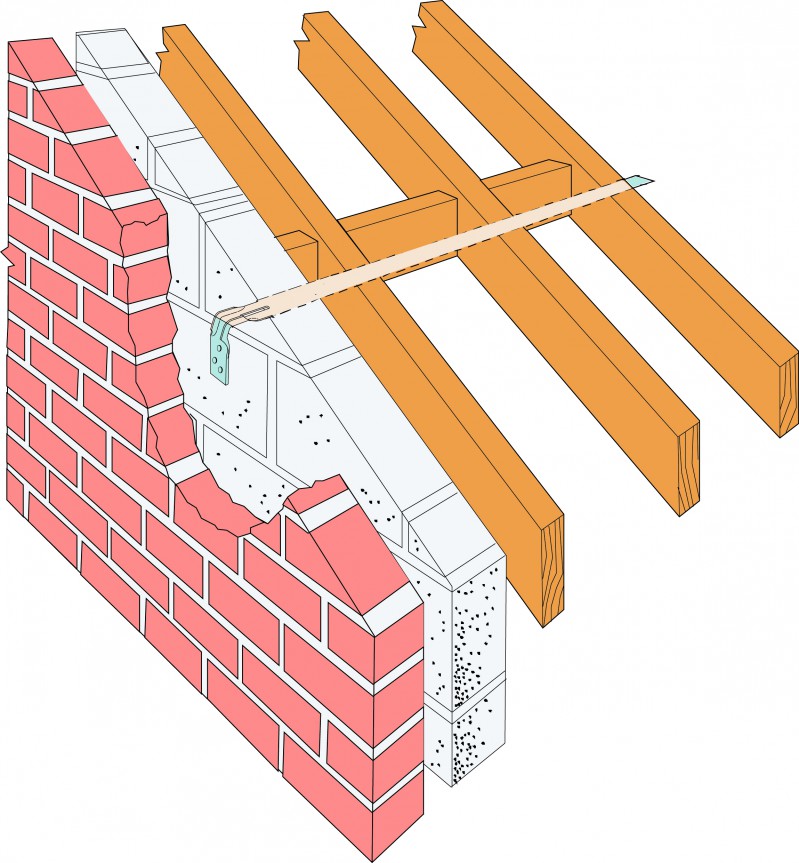

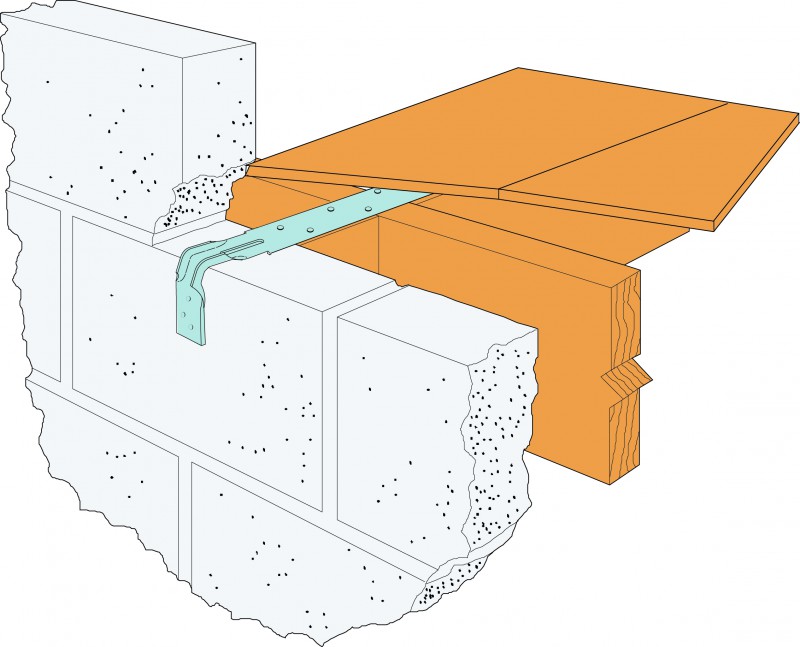

Installation (for lateral restraint)

  • Building Regulations requires lateral restraint to be provided at each floor at a maximum of 2 metre centres

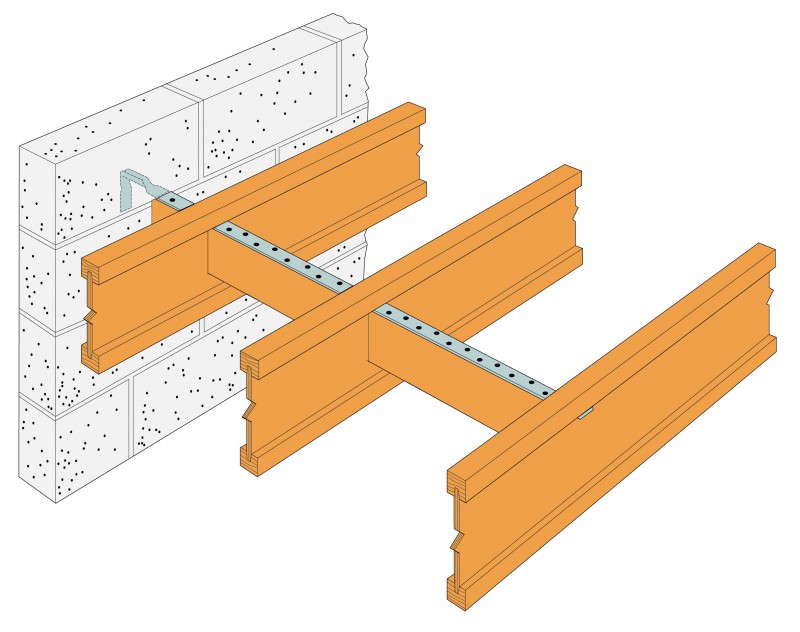

  • Restraint straps "perpendicular" to the floor joists are required to be held tight against the masonry and fixed across the first 3 joists
  • Restraint straps "parallel" to the floor joists are required to be held tight to the masonry and be at least 1200mm long
  • The characteristic tensile strength for horizontal restraint straps should not be less than 8kN

Specifics

Width: 38mm
Overall length (B): 600mm
Length of bend (B1): 100mm
Thickness: 1.5mm
Type: Heavy duty - for lateral restraint
Material: Pre-galvanised mild steel

Technical line drawing of Simpson light duty restraint strap
