Simpson JHA270/100 Short Leg Joist Hanger 100mm

Speed-prongs allow easier attachment

Face fix or wrap over applications

Technical approvals : ETA-06/0270

ORDER BY 3PM FOR NEXT DAY DELIVERY (MON-FRI)*

ORDER BY 3PM FOR NEXT DAY DELIVERY*

FREE STANDARD DELIVERY ON ORDERS OVER £100*

FREE STANDARD DELIVERY OVER £100*

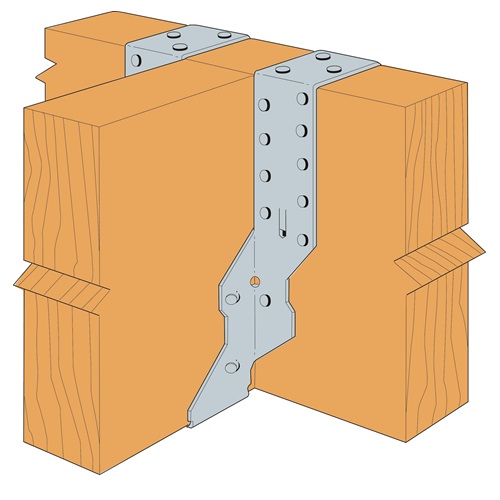

The Simpson JHA270 joist hanger is a height adjustable joist hanger for supporting timber joists from timber members. The Simpson Strong-Tie JHA is made from pre-galvanised mild steel and has European Technical Approval for use in construction. The JHA270 (short leg) version features speed-prongs for easy attachment.

Technical Data

Declarations of Performance: UK-DoP-e06/0270
Technical approvals: ETA-06/0270
Technical data sheet

Features

Galvanised joist hanger that provides ease of installation
Published performance values are based on 3.75x30mm twist nails
Wider strap for greater surface area & allows increased nail spacing
Min. and max. nailing schedules are stamped into the strap
Speed-prong holds the hanger in position for easy attachment
JHA270 range features a location tab for easier alignment
The model number & size are stamped into the seat of the hanger

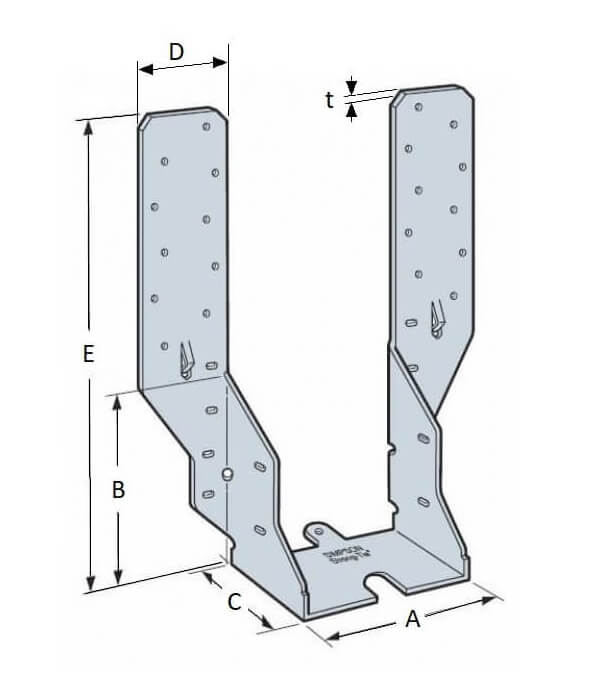

Specifics

Hanger width (A): 100mm (2 x 50mm joists)
Stirrup height (B): 95mm
Depth (C): 50mm
Led width (D): 48.8mm
Height (E): 230mm
Thickness (t): 0.9mm

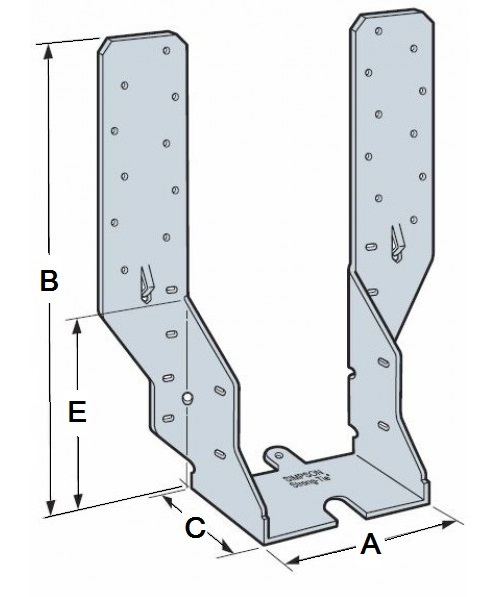

Technical line drawing of Simpson JHA270 joist hanger

JHA Technical Data

Simpson Hangers Declaration Of Performance

Simpson Hangers European Technical Approval
