Simpson JHA450/100 Long Leg Joist Hanger 100mm

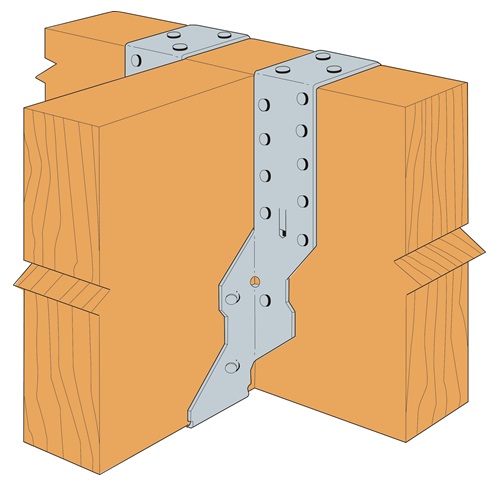

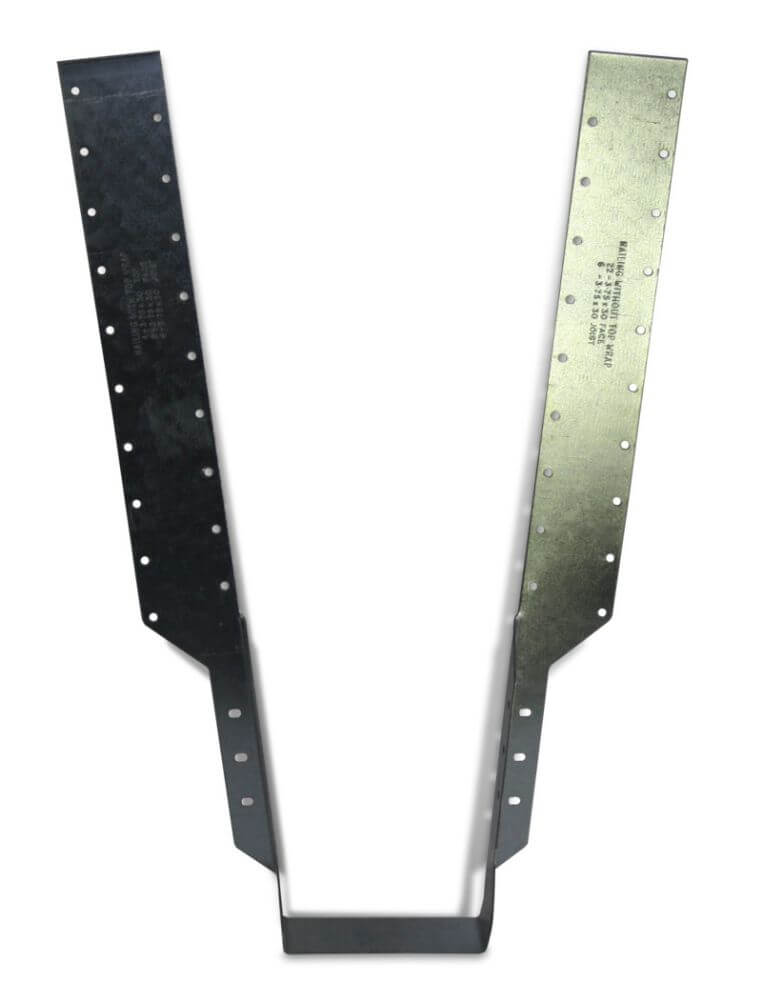

The Simpson JHA450 joist hanger is a height adjustable joist hanger for supporting timber joists from timber members. The Simpson Strong-Tie JHA is made from pre-galvanised mild steel and has European Technical Approval for use in construction. The JHA450 (long leg) version has extra-long legs and is made from thicker gauge steel for heavier duty applications.

Technical Data

Declarations of Performance: UK-DoP-e06/0270
Technical approvals: ETA-06/0270
Technical data sheet

Features

Galvanised joist hanger that provides ease of installation
Published performance values are based on 3.75x30mm twist nails
Wider strap for greater surface area & allows increased nail spacing
Min. and max. nailing schedules are stamped into the strap
The model number & size are stamped into the seat of the hanger
Longer, wider legs & thicker gauge than the JHA270

Specifics

Hanger width (A): 100mm (2 x 50mm joists)
Stirrup height (B): 160mm
Depth (C): 50mm
Led width (D): 51.5mm
Height (E): 450mm
Thickness (t): 1.5mm

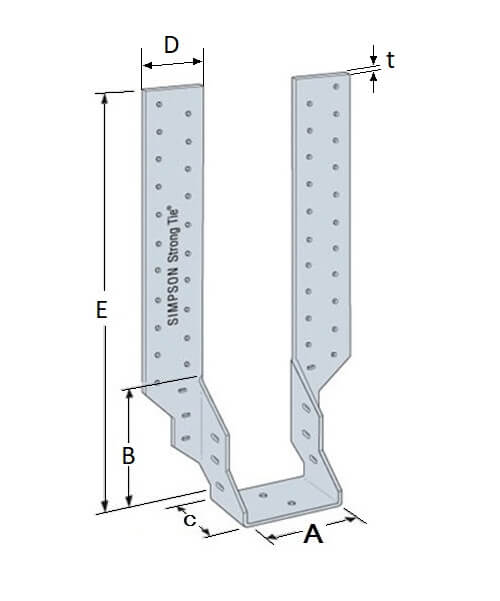

Technical line drawing of Simpson JHA450 joist hanger

JHA Technical Data

Simpson Hangers Declaration Of Performance

Simpson Hangers European Technical Approval
