Simpson JHM200/100 Masonry Hanger 100mm x 200mm | 100mm Masonry Hangers

Alert

remove

Please enter the new quantity and click submit.





Simpson JHM200/100 Masonry Hanger 100mm x 190mm

  • Built-in inspection slot at base of hanger
  • For supporting timber to masonry walls
  • Pre-galvanised mild steel


£ 6.06 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

12+

£5.05

48+

£4.65

QUANTITY:

10 IN STOCK

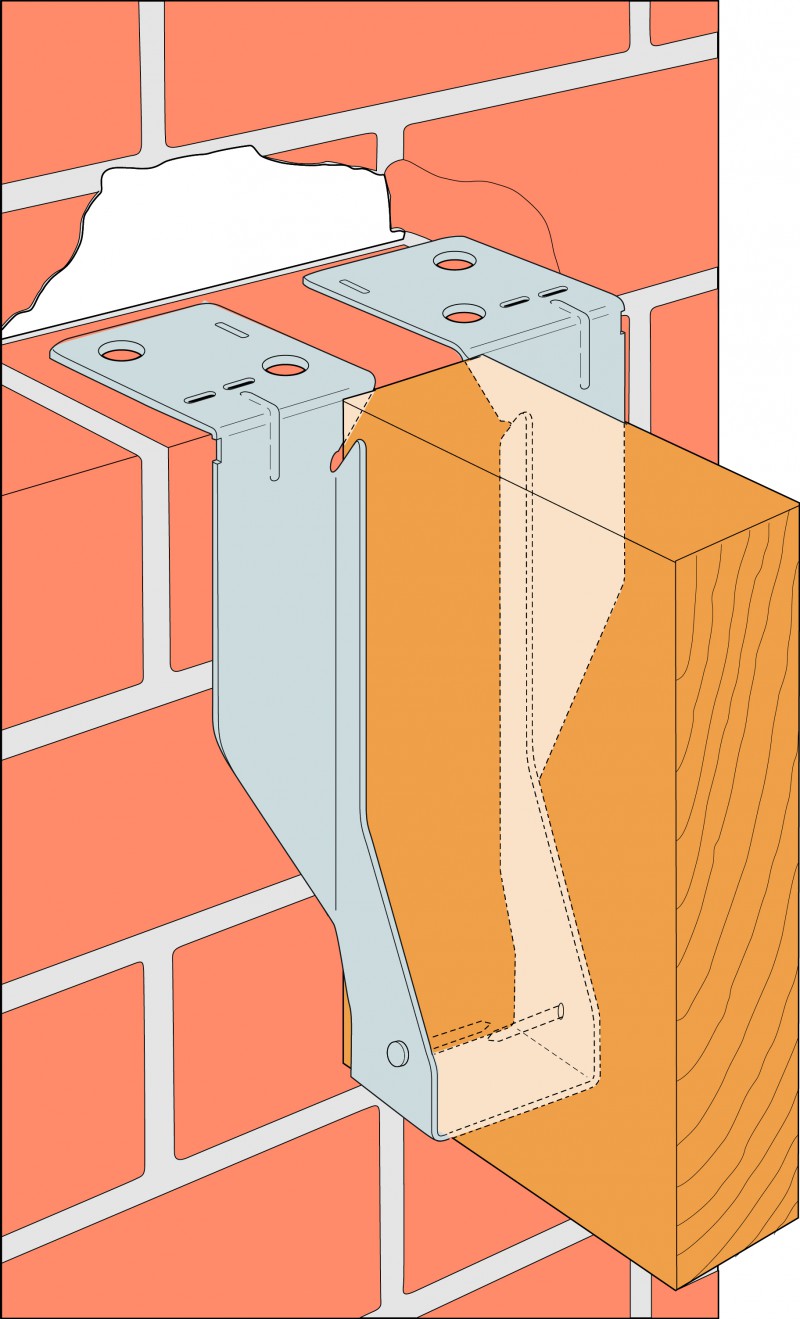

The Simpson Strong Tie JHM is a masonry hanger, for supporting timber joists, beams and trussed rafters from masonry walls. The Simpson JHM hanger features a handy inspection slot at the bottom of the hanger to aid easy inspection from the ground.


Technical Data


Features

  • Built-in inspection slot at the base of the hanger to aid inspection from the ground
  • Top flange provides widest area in contact with masonry support allowing superior performance
  • Embossments on JHM stiffen top flange and holes allow improved mortar keying
  • JHM side flange on deeper hangers is much higher than traditional style, providing greatly enhanced resistance to joist rotation

Specifics

Width (A): 100mm
Height (B): 190mm
Seat depth (C): 64mm
Measurement D: 64mm
Measurement E: 75mm
Joist fixings holes: 2 x Ø4mm
Thickness: 2.0mm

Technical line drawing of Simpson JHM masonry hangers



JHM Technical Data
JHM Technical Data
JHM Declaration Of Performance
JHM Declaration Of Performance
