Buy Simpson SSH Connector Screws M10 x 40mm| Simpson 75149

Alert

remove

Please enter the new quantity and click submit.





Simpson M10 x 40mm SSH TX40 Hex Head Connector Screw

  • Superior Impreg®+ coating makes the screw suitable for exterior use
  • Recommended where high load capability is required
  • Type 17 point to prevent splitting of timber
SIZE:

£ 0.60 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

50+

£0.54

200+

£0.51

1000+

£0.49

QUANTITY:

262 IN STOCK


Simpson SSH hexagon head connector screws are recommended for use where high load capacity is required. The SSH connector screw has a both a torx drive and a hexagon head for versatility and features a conical shape underneath the screw head to help the screw fit securely & make a good connection with the connector. They also feature a type 17 slash for fast & easy pick up. The Impreg+ plus coating makes them suitable for both internal & external use.


Technical Data


Features

  • Type 17 point to prevent splitting of timber
  • Conical shape under the head for secure fit in connector holes
  • 6 lobe 'Torx' drive
  • CE marked to EN14592
  • Milling thread reduces insertion torque (longer sizes only)

Specifics

Diameter (D): 10mm
Length (L): 40mm
Thread length (Lg): 32mm
Head diameter (Dh): 15mm
Head height(Ht): 6mm
Drive recess: TX40 torx drive
Material: Carbon steel
Finish: Impreg®+ coating

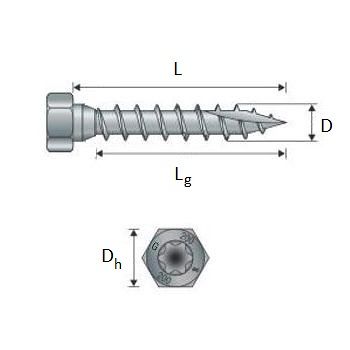

Technical line drawing of Simpson SSH connector screws



Technical Data Sheet
Technical Data Sheet
Declaration of Performance
Declaration of Performance
