Buy Simpson SSH Connector Screws M12 x 80mm| Simpson 75163

Alert

remove

Please enter the new quantity and click submit.





Simpson M12 x 80mm SSH TX40 Hex Head Connector Screw

  • Superior Impreg®+ coating makes the screw suitable for exterior use
  • Recommended where high load capability is required
  • Type 17 point to prevent splitting of timber
SIZE:

£ 1.74 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

25+

£1.57

100+

£1.48

500+

£1.43

QUANTITY:

98 IN STOCK


Simpson SSH hexagon head connector screws are recommended for use where high load capacity is required. The SSH connector screw has a both a torx drive and a hexagon head for versatility and features a conical shape underneath the screw head to help the screw fit securely & make a good connection with the connector. They also feature a type 17 slash for fast & easy pick up. The Impreg+ plus coating makes them suitable for both internal & external use.


Technical Data


Features

  • Type 17 point to prevent splitting of timber
  • Conical shape under the head for secure fit in connector holes
  • 6 lobe 'Torx' drive
  • CE marked to EN14592
  • Milling thread reduces insertion torque (longer sizes only)

Specifics

Diameter (D): 12mm
Length (L): 80mm
Thread length (Lg): 48mm
Head diameter (Dh): 17mm
Head height(Ht): 6.25mm
Drive recess: TX40 torx drive
Material: Carbon steel
Finish: Impreg®+ coating

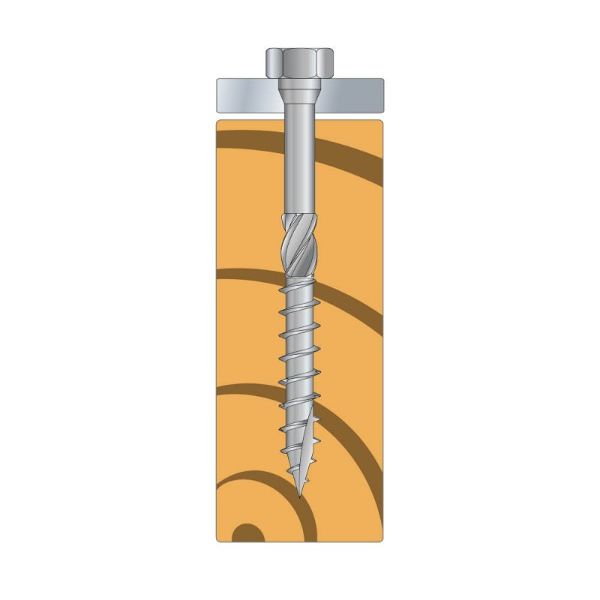

Technical line drawing of Simpson SSH connector screws
