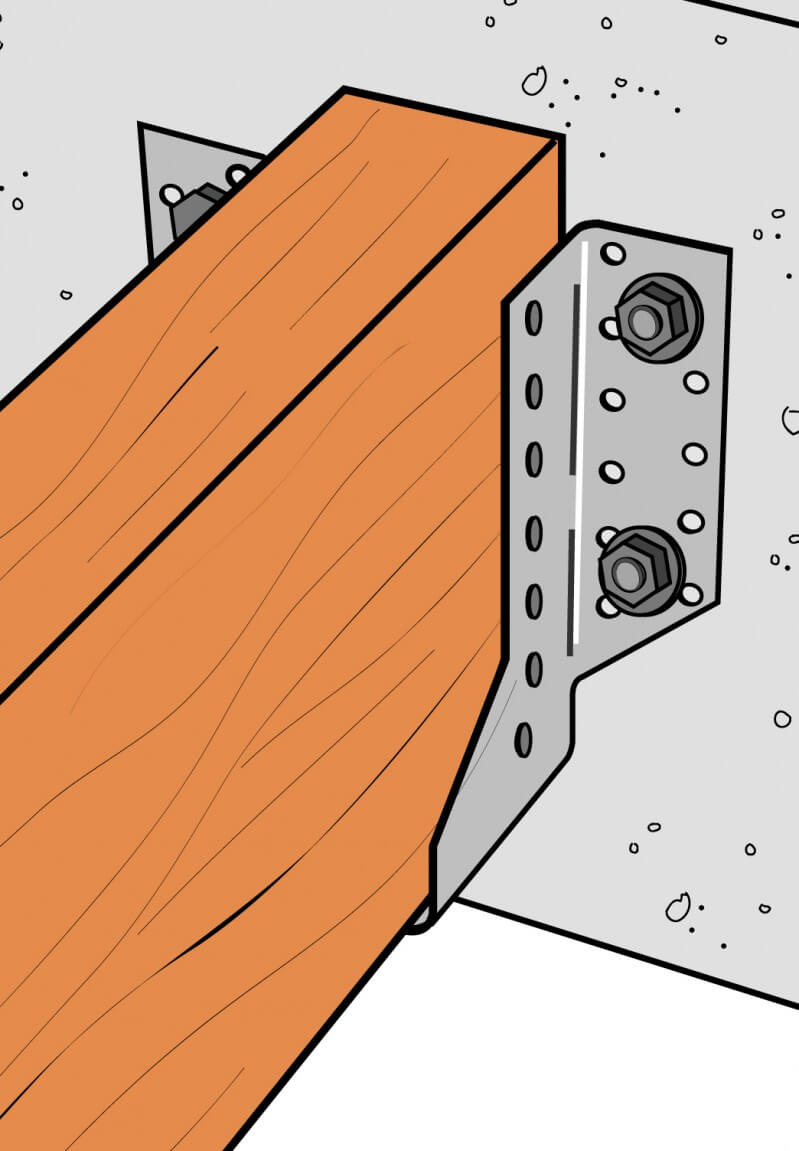

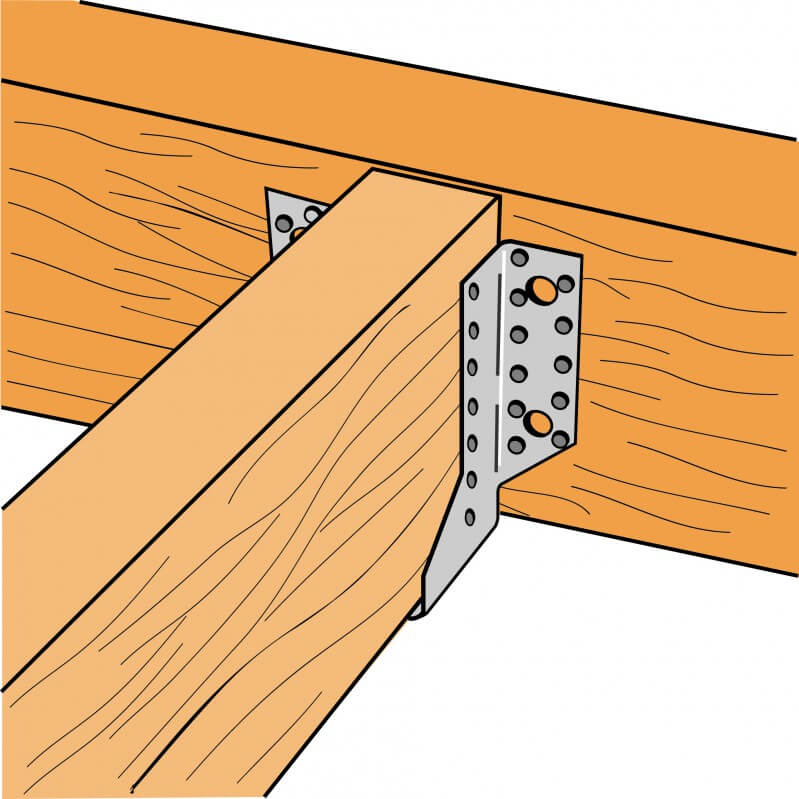

The Simpson SAE hanger is a heavy-duty hanger designed for applications requiring additional strength. The SAE hanger can be installed a variety of header members including timber, steel, masonry & I-Joists. The SAE hanger can be nailed using square twist nails, and it also has bolt holes for fixing into masonry. The hanger depth is to be at least 60% of the carried member depth to prevent rotation, unless additional lateral restraint is added to the top of the carried member.
Technical Data
Features
Specifics
Hanger width (A): 109mm (Joist width MIN-MAX: 106-109mm)
Hanger height (B): 195.5mm (Joist height MIN-MAX: 211-326mm)
Depth (C): 84mm
Leg width (D): 41.5mm
Thickness (t): 2.0mm
Header fixing holes: 32 x Ø5mm, 6 x Ø13mm
Joist fixing holes: 16 x Ø5mm
Orders over £100 will qualify for free 2-3 working day delivery*. Orders under £100 will be subject to a carriage charge - please see below for our delivery options.
We offer a number of different nationwide* services. Please see below for our delivery options.
*Please note that orders to the Isle of Wight, the Isle of Man, the Scottish Isles, the Scottish Highlands, Northern Ireland and the Channel Isles will incur a carriage surcharge.
*Long items greater than or equal to 1.5M in length will be subject to a length surcharge of £12. This surcharge is per shipment, and not per item.
Orders placed before 15:00 with next working day/timed services, Saturday & Royal Mail Special Delivery services will be dispatched the same day (Monday to Friday). Orders placed with any of these services after 15:00 will not be dispatched until the next working day. Orders placed on Saturdays, Sundays or bank holidays will be dispatched on the next working day. Next working day means Monday - Friday, excluding bank holidays. Orders placed with any of the aforementioned services will not be delivered on a Saturday or Sunday. For Saturday deliveries, select 'Saturday Delivery' in the basket.
We aim to despatch all orders with standard services within 2 working days, as long as all of the items are in stock.
We offer the following delivery services:
^Orders placed before 15:00 with next working day/timed services, Saturday & Royal Mail Special Delivery services will be dispatched the same day (Monday to Friday). Orders placed after 15:00 will not be dispatched until the next working day. Orders placed on Saturdays, Sundays or bank holidays will be dispatched on the next working day. Next working day means Monday - Friday, excluding bank holidays. Orders placed with any of the aforementioned services will not be delivered on a Saturday or Sunday. For Saturday deliveries, select 'Saturday Delivery' in the basket.
^^Royal Mail services are only offered to basket weights up to and including 2 kilos only. The 1pm & 9am Special Delivery times are for UK mainland only and will vary for Northern Ireland, Highlands & Islands. Please view the Royal Mail website for full details.
Please note that orders to the Isle of Wight, the Isle of Man, the Scottish Isles, the Scottish Highlands, Northern Ireland and the Channel Isles will incur a carriage surcharge.
Long items greater than or equal to 1.5M in length will be subject to a length surcharge of £12. This surcharge is per shipment, and not per item.
All orders are available for collection from our stores. Collection orders will normally be ready within 2 hours of the order being placed, as long as all items are in stock at the time of order.
TC Fixings offers a free van delivery service to Saffron Walden and the surrounding villages.
Quantity WarningPlease be aware that this product only sold in multiples of 0.
Width: 38mm
Height: 106mm
SKU: SIMSAE250/38/2
6 In Stock
£3.20
EACH
Width: 38mm
Height: 171mm
SKU: SIMSAE380/38/2
20 In Stock
£4.05
EACH
Width: 38mm
Height: 231mm
SKU: SIMSAE500/38/2
Out of Stock
£4.73
EACH
Width: 38mm
Height: 281mm
SKU: SIMSAE600/38/2
Out of Stock
£6.53
EACH
Width: 40mm
Height: 105mm
SKU: SIMSAE250/40/2
21 In Stock
£3.20
EACH
Width: 40mm
Height: 170mm
SKU: SIMSAE380/40/2
Out of Stock
£4.05
EACH
Width: 40mm
Height: 230mm
SKU: SIMSAE500/40/2
4 In Stock
£4.73
EACH
Width: 40mm
Height: 280mm
SKU: SIMSAE600/40/2
Out of Stock
£6.53
EACH
Width: 47mm
Height: 77mm
SKU: SIMSAE200/47/2
154 In Stock
£2.62
EACH
Width: 47mm
Height: 102mm
SKU: SIMSAE250/47/2
260 In Stock
£2.13
EACH
Width: 47mm
Height: 167mm
SKU: SIMSAE380/47/2
748 In Stock
£2.09
EACH
Width: 47mm
Height: 227mm
SKU: SIMSAE500/47/2
Out of Stock
£4.73
EACH
Width: 47mm
Height: 277mm
SKU: SIMSAE600/47/2
Out of Stock
£6.53
EACH
Width: 50mm
Height: 100mm
SKU: SIMSAE250/50/2
78 In Stock
£3.20
EACH
Width: 50mm
Height: 165mm
SKU: SIMSAE380/50/2
47 In Stock
£3.42
EACH
Width: 50mm
Height: 225mm
SKU: SIMSAE500/50/2
20 In Stock
£4.73
EACH
Width: 50mm
Height: 275mm
SKU: SIMSAE600/50/2
Out of Stock
£6.53
EACH
Width: 56mm
Height: 162mm
SKU: SIMSAE380/56/2
34 In Stock
£4.05
EACH
Width: 56mm
Height: 222mm
SKU: SIMSAE500/56/2
Out of Stock
£4.73
EACH
Width: 56mm
Height: 272mm
SKU: SIMSAE600/56/2
Out of Stock
£6.53
EACH
Width: 66mm
Height: 157mm
SKU: SIMSAE380/66/2
85 In Stock
£4.05
EACH
Width: 66mm
Height: 217mm
SKU: SIMSAE500/66/2
16 In Stock
£4.73
EACH
Width: 66mm
Height: 267mm
SKU: SIMSAE600/66/2
Out of Stock
£6.53
EACH
Width: 72mm
Height: 154mm
SKU: SIMSAE380/72/2
101 In Stock
£4.05
EACH
Width: 72mm
Height: 214mm
SKU: SIMSAE500/72/2
30 In Stock
£4.73
EACH
Width: 72mm
Height: 264mm
SKU: SIMSAE600/72/2
Out of Stock
£6.53
EACH
Width: 75mm
Height: 88mm
SKU: SIMSAE250/75/2
50 In Stock
£3.20
EACH
Width: 75mm
Height: 153mm
SKU: SIMSAE380/75/2
79 In Stock
£4.05
EACH
Width: 75mm
Height: 213mm
SKU: SIMSAE500/75/2
Out of Stock
£4.73
EACH
Width: 75mm
Height: 263mm
SKU: SIMSAE600/75/2
1 In Stock
£6.53
EACH
Width: 78mm
Height: 151mm
SKU: SIMSAE380/78/2
50 In Stock
£3.42
EACH
Width: 78mm
Height: 211mm
SKU: SIMSAE500/78/2
18 In Stock
£4.73
EACH
Width: 78mm
Height: 261mm
SKU: SIMSAE600/78/2
Out of Stock
£6.53
EACH
Width: 91mm
Height: 145mm
SKU: SIMSAE380/91/2
122 In Stock
£3.42
EACH
Width: 91mm
Height: 205mm
SKU: SIMSAE500/91/2
3 In Stock
£4.73
EACH
Width: 91mm
Height: 255mm
SKU: SIMSAE600/91/2
27 In Stock
£6.53
EACH
Width: 96mm
Height: 142mm
SKU: SIMSAE380/96/2
92 In Stock
£4.05
EACH
Width: 96mm
Height: 202mm
SKU: SIMSAE500/96/2
Out of Stock
£4.73
EACH
Width: 96mm
Height: 252mm
SKU: SIMSAE600/96/2
9 In Stock
£6.53
EACH
Width: 99mm
Height: 141mm
SKU: SIMSAE380/99/2
151 In Stock
£3.42
EACH
Width: 99mm
Height: 201mm
SKU: SIMSAE500/99/2
36 In Stock
£4.73
EACH
Width: 99mm
Height: 251mm
SKU: SIMSAE600/99/2
Out of Stock
£6.53
EACH
Width: 109mm
Height: 136mm
SKU: SIMSAE380/109/2
34 In Stock
£4.05
EACH
Width: 109mm
Height: 196mm
SKU: SIMSAE500/109/2
26 In Stock
£4.73
EACH
Width: 109mm
Height: 246mm
SKU: SIMSAE600/109/2
5 In Stock
£6.53
EACH
Width: 118mm
Height: 191mm
SKU: SIMSAE500/118/2
22 In Stock
£4.73
EACH
Width: 118mm
Height: 241mm
SKU: SIMSAE600/118/2
8 In Stock
£6.53
EACH
Width: 122mm
Height: 189mm
SKU: SIMSAE500/122/2
18 In Stock
£4.73
EACH
Width: 122mm
Height: 239mm
SKU: SIMSAE600/122/2
13 In Stock
£6.53
EACH
Width: 125mm
Height: 188mm
SKU: SIMSAE500/125/2
25 In Stock
£4.73
EACH
Width: 125mm
Height: 238mm
SKU: SIMSAE600/125/2
31 In Stock
£6.53
EACH
Width: 128mm
Height: 186mm
SKU: SIMSAE500/128/2
40 In Stock
£4.73
EACH
Width: 128mm
Height: 236mm
SKU: SIMSAE600/128/2
Out of Stock
£6.53
EACH
Width: 142mm
Height: 179mm
SKU: SIMSAE500/142
113 In Stock
£4.73
EACH
Width: 142mm
Height: 229mm
SKU: SIMSAE600/142/2
Out of Stock
£6.53
EACH
Width: 146mm
Height: 177mm
SKU: SIMSAE500/146
39 In Stock
£4.73
EACH
Width: 146mm
Height: 227mm
SKU: SIMSAE600/146/2
15 In Stock
£6.53
EACH
Width: 150mm
Height: 175mm
SKU: SIMSAEL500/150
150 In Stock
£4.73
EACH
Width: 150mm
Height: 225mm
SKU: SIMSAE600/150/2
27 In Stock
£6.53
EACH
Width: 182mm
Height: 159mm
SKU: SIMSAE500/182/2
61 In Stock
£4.73
EACH
Width: 200mm
Height: 195mm
SKU: SIMSAE590/200/2
43 In Stock
£5.02
EACH
