Buy Simpson SDE Hangers | SDE440/30 Width Adjustable Joist Hanger

Alert

remove

Please enter the new quantity and click submit.





Simpson SDE440/30 Width Adjustable Joist Hanger (Pair)

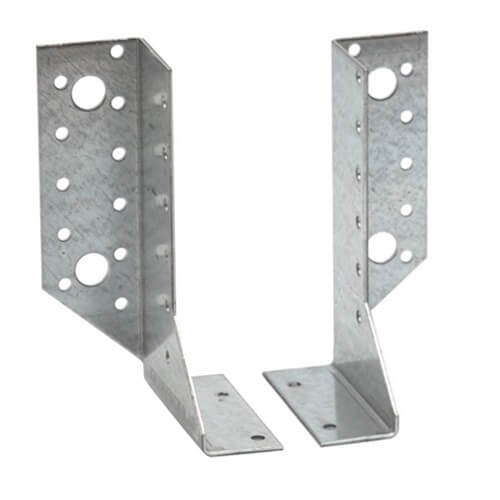

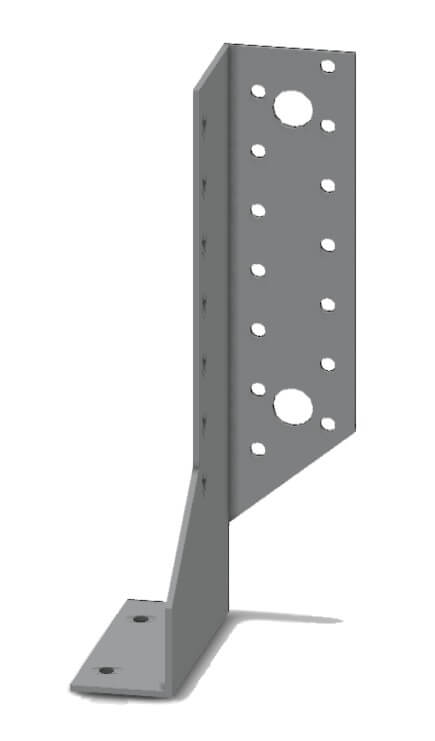

***Main image shows one half - item is sold in pairs***

  • Width is adjustable from 60mm-160mm
  • Quick and simple installation
  • Pre-galvanised mild steel
OPTIONS:

£ 12.10 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

25+

£9.51

100+

£8.65

500+

£8.30

QUANTITY:

46 IN STOCK

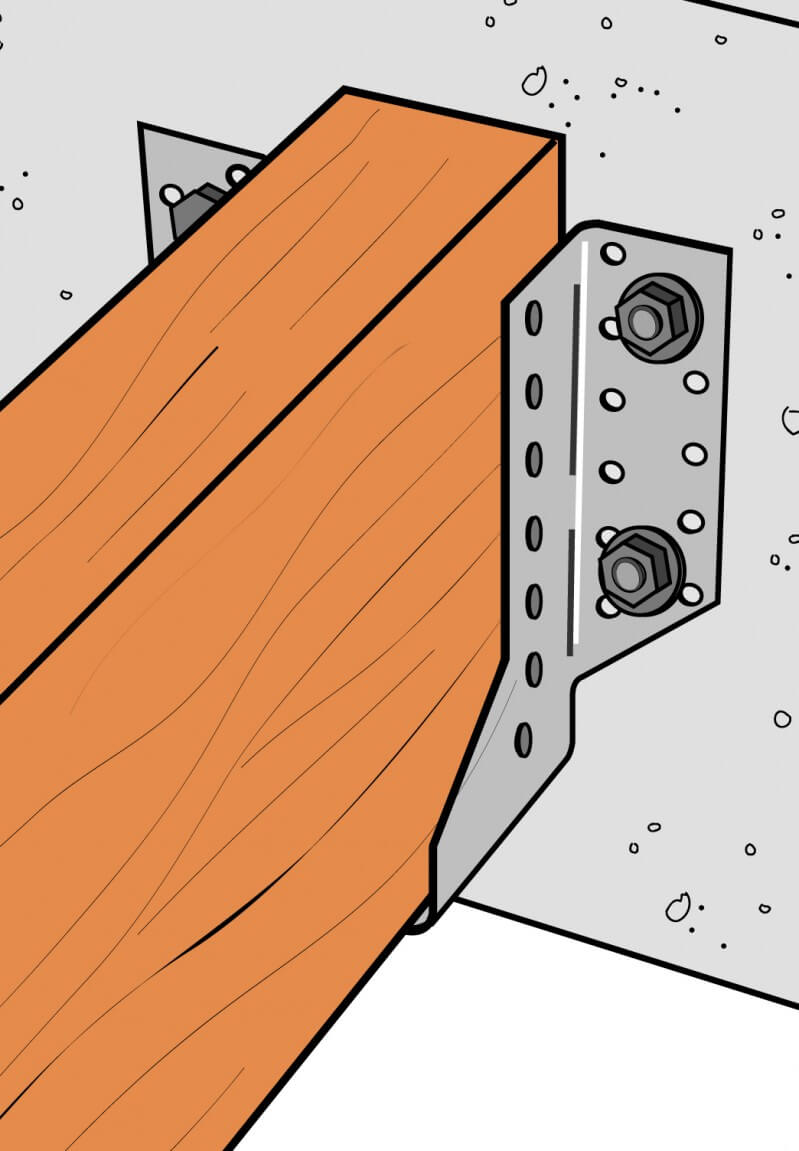

 The Simpson SDE hanger is a 2-piece width adjustable hanger, that can be adapted to fit joist widths between 60mm - 160mm. The SDE hanger gives great flexibility to the user as it can be very quickly and easily fitted onto any size timber within the size limitations. The SDE hanger also features 13mm fixing holes for fixing onto masonry.


Technical Data


Features

  • It is essential to install nails in the base of the joist hanger to ensure a solid assembly
  • Galvanised steel S250GD + Z275 according to NF EN 10346
  • Fits joist between 60mm - 160mm wide
  • Fixing holes for twist nails & bolt fixings
  • Quick & easy installation

Specifics

Hanger width (A1/A2): 30mm / 60mm (Joist MIN-MAX: 60mm - 160mm)
Hanger height (B): 188mm (Joist MIN-MAX: 190mm - 282mm)
Depth (C): 84mm
Leg width (D): 41.5mm
Thickness (t): 2.0mm
Header fixing holes: 28 x Ø5mm, 4 x Ø13mm
Joist fixing holes: 20 x Ø5mm



Technical line drawing of Simpson SDE adjustable width joist hanger
