Simpson Strong-Tie PWT200 Party Wall Tie 200mm

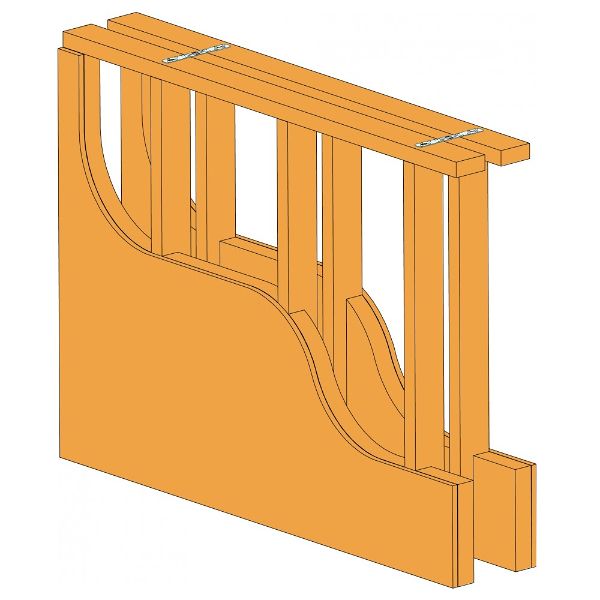

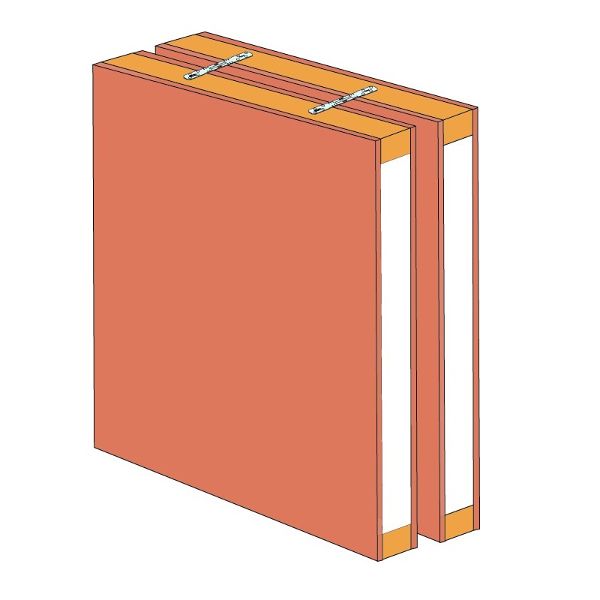

Specifically designed to connect the party walls of timber framed buildings

Suits timber frame party wall cavities from 50 to 75mm

Can be used on closed panel construction

ORDER BY 3PM FOR NEXT DAY DELIVERY (MON-FRI)*

ORDER BY 3PM FOR NEXT DAY DELIVERY*

FREE STANDARD DELIVERY ON ORDERS OVER £100*

FREE STANDARD DELIVERY OVER £100*

The Simpson PWT party wall tie is the first connector designed specifically to connect the party walls of timber framed buildings. They are made using a thin material to ensure optimum acoustic properties. The PWT party wall tie has cavity widths of 50mm 62mm and 75mm stamped onto the surface, to ensure consistent cavity size throughout the building.

PLEASE NOTE: In order to minimise the risk of sound transfer, it is recommended that the PWT200 is installed at 1200mm centres, unless otherwise specified by the building designer or engineer.

Technical Data

Features

Quick and easy installation using only 8 No. 3.75 x 30mm square twist nails - 4 per side
Nails holes positioned to ensure minimum nail edge distances are always achieved
Meets the requirements of Part E of The Building Regulations (Resistance to the Passage of Sound).
Suits timber frame party wall cavities from 50 to 75mm
Pre-galvanised mild steel construction

Specifics

Length: 200mm
Material: Mild steel
Plating: Pre-galvanised
To suit cavity widths: 50mm - 75mm

Technical Data Sheet

Declaration of Performance
