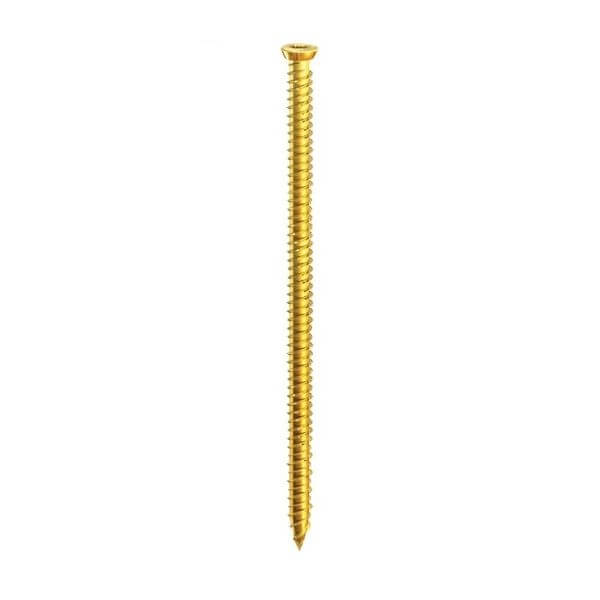

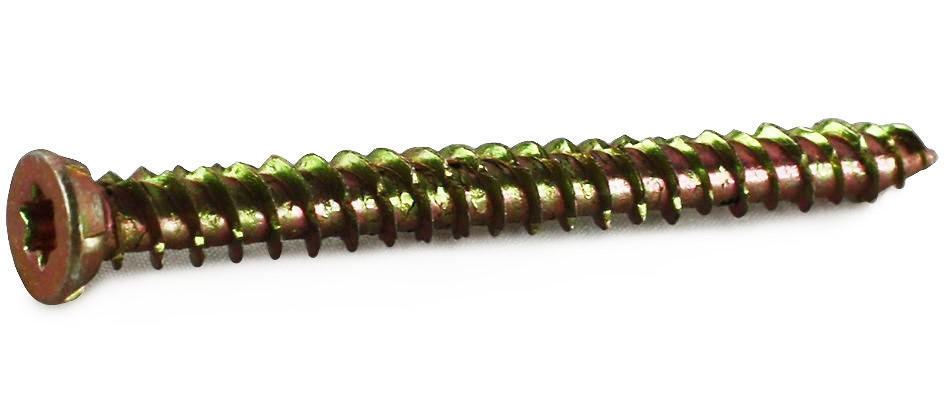

7.5x100 TIMco Concrete Screws

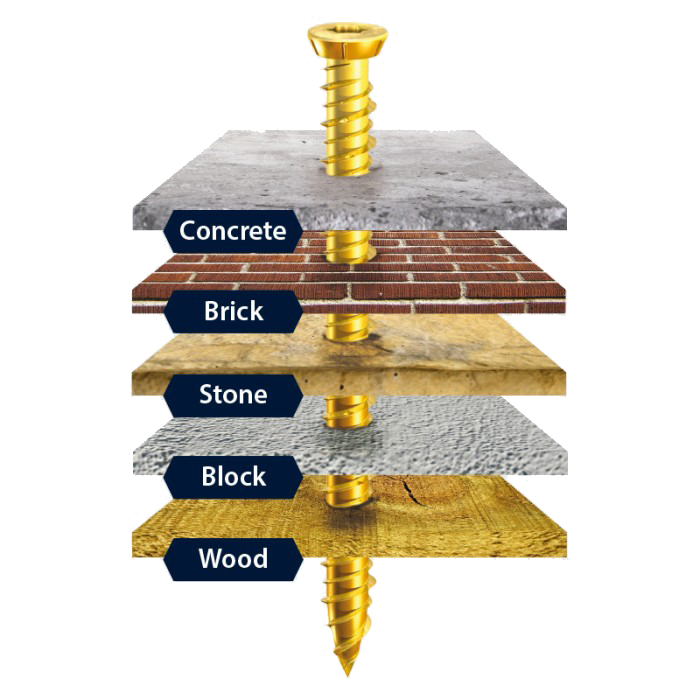

The TIMco Multi-Fix concrete screw offers a rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditonal fixings such as nylon frame and hammer fixings. The special thread configuration taps its own thread within the substrate and eradicates the problems associated with expansion anchors, such as splitting. It also allows the user to adjust the screw ensuring a secure and accurate installation.

Door/window frame installation screw
Serrated V-threads to achieve optimum insertion into all masonry types

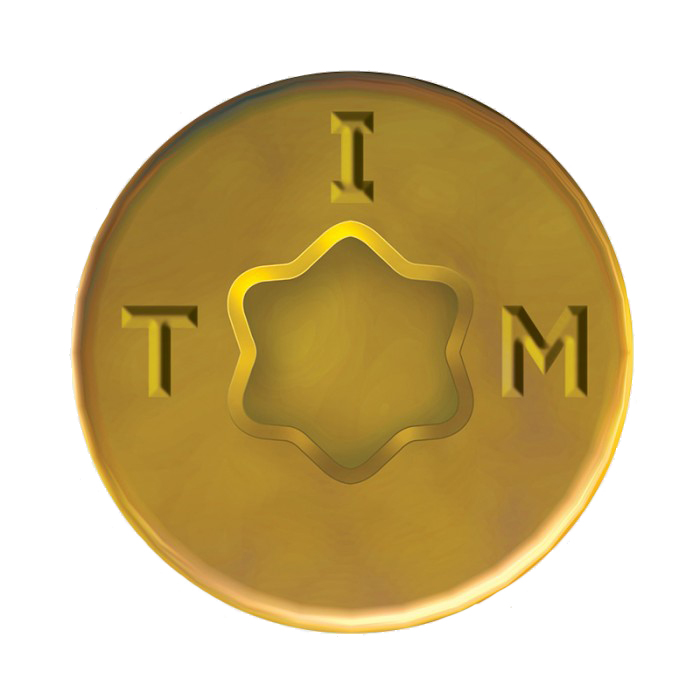

Flat countersunk head with five locking ribs
Non-expansion fixing
Removable
Suitable for most substrate materials
One-piece fixing
No special tools required

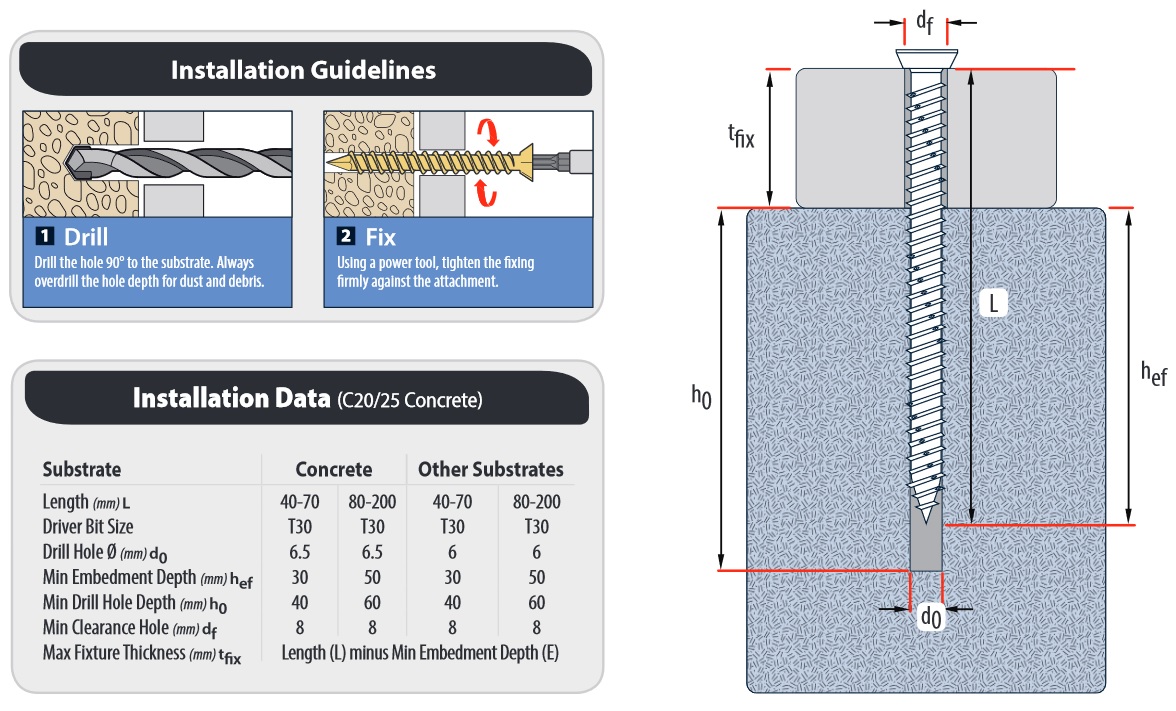

Technical Data

Drill size: 6mm (6.5mm for high density materials)
Fixture clearance hole: 8mm
Length: 100mm
Max fixture thickness: 50mm
Min hole depth: 60mm
Min embedment depth: 50mm
Drive: T30 Torx drive
Plating: Bright Zinc plated & yellow passivated

Concrete Screws Data Sheet

Concrete Screws Salt Spray Tests
