Buy Solo Coach Screws | M6 x 80mm 680SCSY | 3 x Faster Than Traditional Coach Screws

Alert

remove

Please enter the new quantity and click submit.

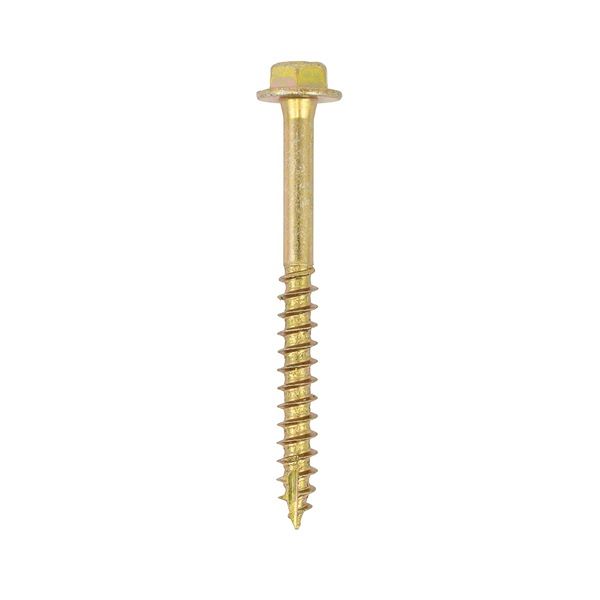

TIMco Hex Flange Solo Coach Screws M6 x 80mm ZYP

  • Three times faster than standard coach screws
  • Single slash point for quick installation
  • Power tool compatible
OPTIONS:

£ 0.16 INC VAT (PRICED EACH)

£16.27 PER 100

(Include VAT?)

BULK QUANTITY DISCOUNTS:

100+

£11.39

500+

£9.76

1000+

£8.95

QUANTITY:

480 IN STOCK


Solo coach screws are a heavy-duty versatile timber fixing with a hex flange head. Solo coach screws are the modern replacement for traditional DIN 571 coach screws. The main benefit of using the solo coach screw over traditional coach screws is the type 17 slash point. It means they are much less likely to split timber during installation, and they can be used without pilot drills in soft wood. The solo coach screw is 3 times faster to install than standard coach screws and is optimised for use with modern impact drivers. Suitable for softwood, hardwood, man-made board or masonry with the use of a nylon plug.


Features & Technical

  • Large, fixed washer to assist clamping and reduce head pull through
  • Type 17 slash point to reduce torque and help prevent splitting
  • Compatible with impact tools in high torque applications
  • Hex head for quick and easy installation
  • 3x faster than standard coach
  • Technical data sheet
  • Declaration of performance

Specifics

Diameter (D): M6 (6mm)
Length (L) 80mm
Thread length (LT) 48mm
Washer diameter (B):12.6mm
Hexagon size (A): 8.0mm
Head height (H): 5.0mm
Material: Carbon steel
Finish: Zinc & yellow passivated
Corrosion Rating (1-5): 2 - Occasionally damp/wet, rural and sheltered areas


Technical line drawing of TIMco Solo Coach Screws SCSY



Technical Data Sheet
Technical Data Sheet
Declaration of Performance
Declaration of Performance
