Buy TIMco (M10) 8mm x 100mm Pan Head Multi-Fix Bolts

TIMco (M10) 8.0 x 100mm Pan Head Multi-Fix Bolt

8mm Pilot drill size, 10mm clearance size

60mm Max fixture thickness

T40 Torx drive head

ORDER BY 3PM FOR NEXT DAY DELIVERY (MON-FRI)*

ORDER BY 3PM FOR NEXT DAY DELIVERY*

FREE STANDARD DELIVERY ON ORDERS OVER £100*

FREE STANDARD DELIVERY OVER £100*

Description
Delivery

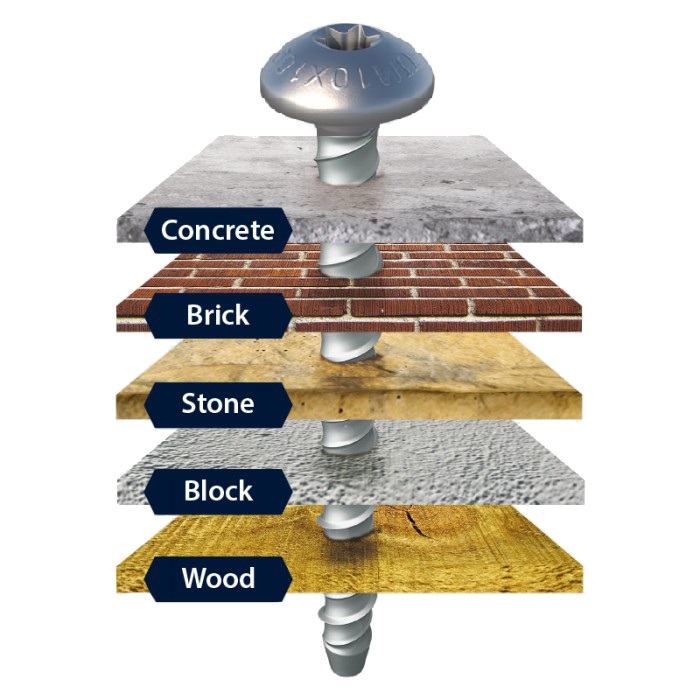

The TIMco Multi-Fix bolt is a heavy-duty non-expansion anchor that has a unique patented concave thread design which taps its own thread and provides rapid, low torque installation with exceptional pull-out resistance. It allows the user to adjust or remove the bolt ensuring a secure and accurate installation. This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as through bolts, shield, sleeve and drop in anchors.

Technical Data

Features

Removable, non-expansion fixing
Suitable for most substrate materials
No special tools required
Allows a closer to the edge fixing
400 Hours salt spray tested

Specifics

Nominal diameter: M10
Length: 100mm
Pilot drill size: 8.0mm
Clearance hole size: 10.0mm
Driver size: TX40 Torx
Max. fixture thickness (^tfix): 60mm
Min. embedment depth (^hef): 40mm
Min. hole depth (^h0): = Length - fixture thickness + min. over drill depth
Min. over drill depth (0): 15mm

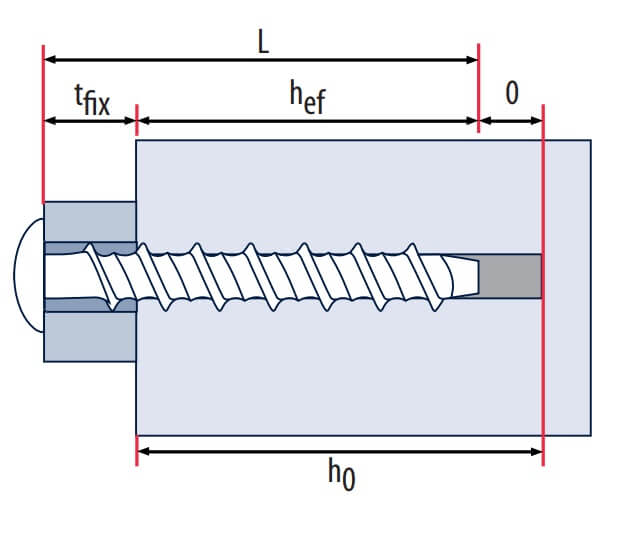

Technical line drawing of TIMco pan head multi-fix bolt
