Buy TIMco (M10) 8mm x 75mm Countersunk Multi-Fix Bolts | Thunder Bolts & Concrete Bolts

Alert

remove

Please enter the new quantity and click submit.





TIMco (M10) 8.0 x 75mm Countersunk Multi-Fix Bolt

  • 8mm Pilot drill size, 10mm clearance size
  • 35mm Max fixture thickness
  • T40 Torx drive head
OPTIONS:

£ 0.60 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

100+

£0.53

200+

£0.46

QUANTITY:

246 IN STOCK

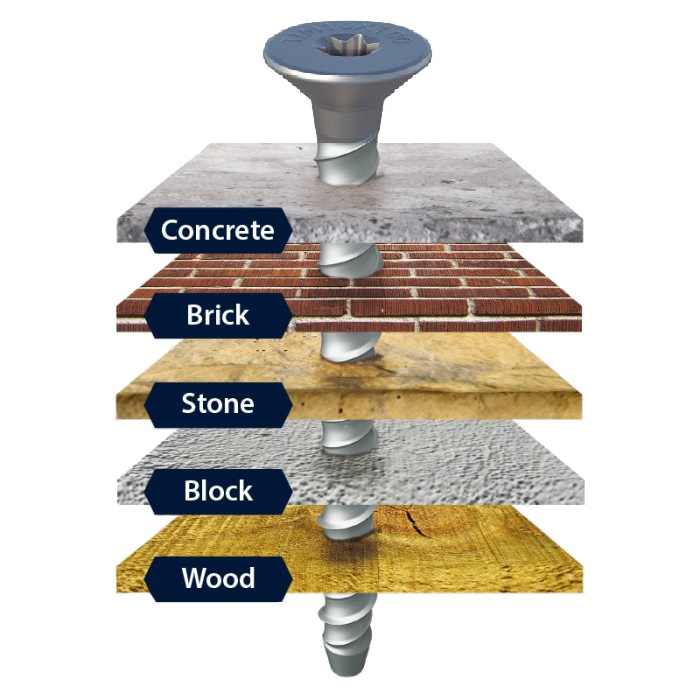

The TIMco Multi-Fix bolt is a heavy-duty non-expansion anchor that has a unique patented concave thread design which taps its own thread and provides rapid, low torque installation with exceptional pull-out resistance. It allows the user to adjust or remove the bolt ensuring a secure and accurate installation. This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as through bolts, shield, sleeve and drop in anchors.

Features

  • Removable, non-expansion fixing
  • Suitable for most substrate materials
  • No special tools required
  • Allows a closer to the edge fixing
  • 400 Hours salt spray tested

Specifics

Nominal diameter: M10
Length75mm
Pilot drill size: 8.0mm
Clearance hole size: 10.0mm
Driver size: TX40 Torx
Max. fixture thickness (tfix): 35mm
Min. embedment depth (hef): 40mm
Min. hole depth (h0): = Length - fixture thickness + min. over drill depth
Min. over drill depth (0): 15mm



Technical line drawing of TIMco countersunk multi-fix bolt
