Buy TIMco (M14) 12mm x 100mm Hex Flange Multi-Fix Bolts

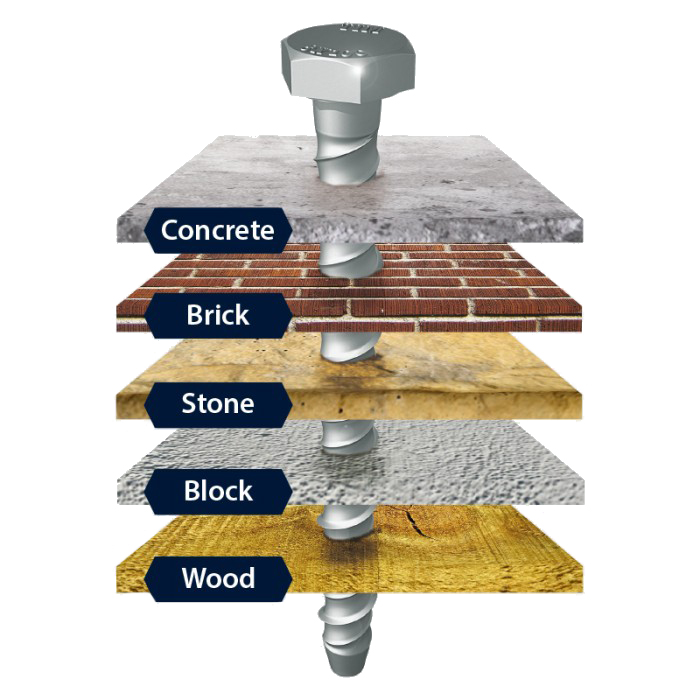

The TIMco Multi-Fix bolt is a heavy-duty non-expansion anchor that has a unique patented concave thread design which taps its own thread and provides rapid, low torque installation with exceptional pull-out resistance. It allows the user to adjust or remove the bolt ensuring a secure and accurate installation. This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as through bolts, shield, sleeve and drop in anchors.

Technical Data

Features

Removable, non-expansion fixing
Suitable for most substrate materials
No special tools required
Allows a closer to the edge fixing
400 Hours salt spray tested

Specifics

Nominal diameter: M14
Length: 100mm
Pilot drill size (^d0): 12.0mm
Clearance hole size (^df): 14.0mm
Head size (A/F): 19mm
Max. fixture thickness (^tfix): 40mm
Min. embedment depth (^hef): 60mm
Min. hole drill depth (^hef): = Length - actual fixture thickness + min. over drill depth
Min. over drill depth (^h0): 25mm

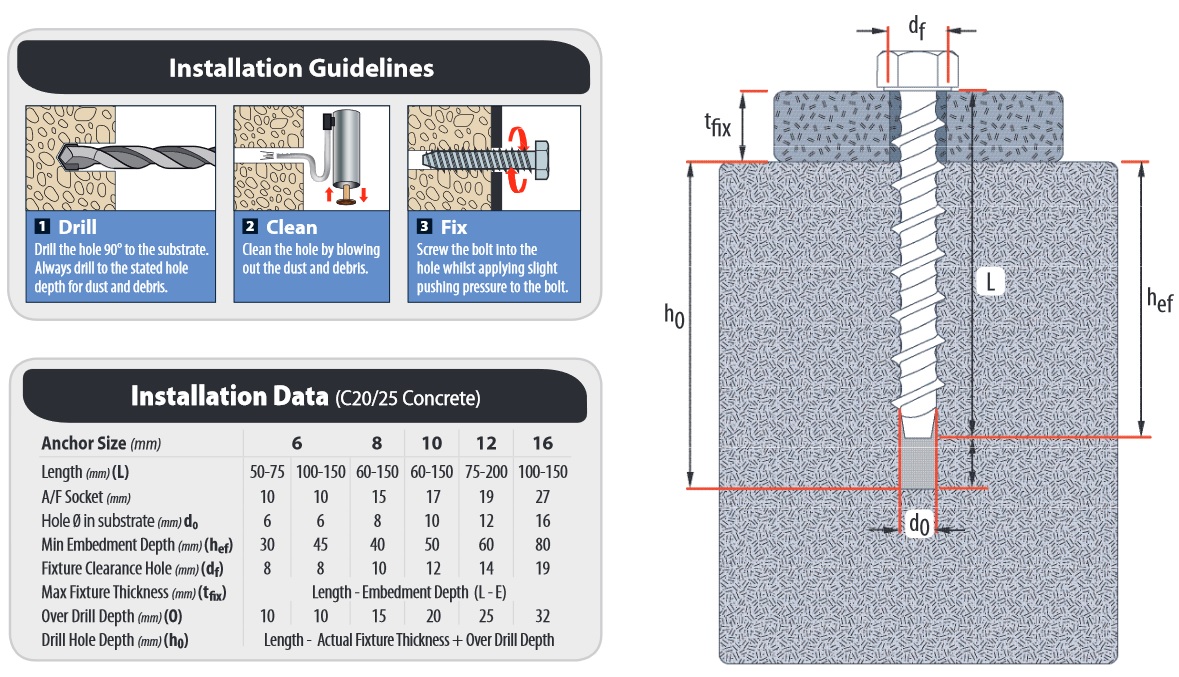

Technical line drawing of TIMco multi-fix bolt

Multi-Fix Bolts Declaration Of Performance

Multi-Fix Bolts Salt Spray Tests
