Buy M6 x 10mm Loose Bolt Shield Anchors ZYP

Shield anchors are a very popular and widely used expansion anchor for use into masonry. They have a three-piece segmented body which is held together by a split ring, which then expands when the fastener is tightened and pulls the expansion cone back into the body of the sleeve. This is a 'loose bolt' shield anchor which means it comes complete with a hexagon head set screw which is 8.8 high tensile.

Features & Technical

A three segmented expansion anchor used in concrete, brick or stone
Torque controlled expansion - reduces the risk of blow-outs
Supplied with 8.8 high tensile bolt
Technical Data Sheet

Specifics

Bolt size: M6 x 50mm
Head size (A/F): 10mm
Bolt grade: 8.8 High tensile
Max fixture thickness: 10mm
Shield length (L): 45mm
Drill hole diameter (d₀): 12mm
Material: Carbon steel
Finish: Zinc & yellow plated CR3
Corrosion Rating (1-5): 1 - Clean, dry & low humidity environments

Use in Concrete ≥25N/mm2

Min drill hole depth: 55mm
Min embed. depth: 45mm
Recommended Tensile Load (kN): 1.04
Max Recommended Load (kg): 104
Min Centre Spacing: 135mm
Min Edge Distance: 70mm
Min Structure Thickness: 90mm
Recommended Tightening Torque (Nm): 5

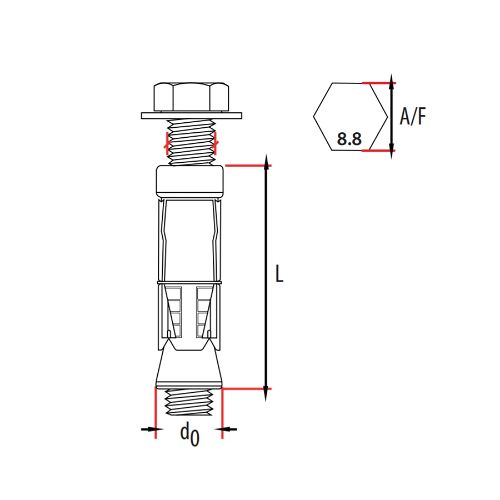

technical line drawing of TIMco LSH Loose bolt shield anchors

Technical Data Sheet
