Buy M8 x 10mm Projection Bolt Shield Anchors ZYP

Description
Delivery

Shield anchors are a very popular and widely used expansion anchor for use into masonry. They have a three-piece segmented body which is held together by a split ring, which then expands when the fastener is tightened and pulls the expansion cone back into the body of the sleeve. This is a 'projecting bolt' shield anchor which means it comes complete with a 5.8 mild steel stud.

Features & Technical

A three segmented expansion anchor used in concrete, brick or stone
Torque controlled expansion - reduces the risk of blow-outs
Supplied with 5.8 mild steel stud
Technical Data Sheet

Specifics

Stud size: M8 x 70mm
Nut socket size (A/F): 13mm
Stud grade: 5.8 Mild steel
Max fixture thickness: 10mm
Shield length (L): 50mm
Drill hole diameter (d₀): 14mm
Material: Carbon steel
Finish: Zinc & yellow plated CR3
Corrosion Rating (1-5): 1 - Clean, dry & low humidity environments

Use in Concrete ≥25N/mm²

Min drill hole depth: 60mm
Min embed. depth: 50mm
Min Centre Spacing: 150mm
Min Edge Distance: 75mm
Min Structure Thickness: 100mm
Recommended Tightening Torque (Nm): 15

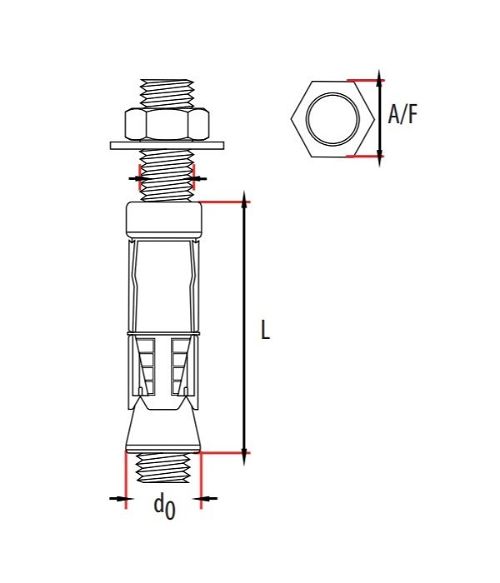

technical line drawing of TIMco PSH projecting bolt shield anchors
