Buy TIMco MIF Fixings | M8 x 110mm Metal Insulation Fixings

TIMco M8 x 110mm Metal Insulation Fixings MIF110 (100)

Designed to anchor insulation to masonry

Requires an 8mm drill hole

Fast and effective

ORDER BY 3PM FOR NEXT DAY DELIVERY (MON-FRI)*

ORDER BY 3PM FOR NEXT DAY DELIVERY*

FREE STANDARD DELIVERY ON ORDERS OVER £100*

FREE STANDARD DELIVERY OVER £100*

Large headed hammer-in insulation fixings designed as a fast & effective way to fix insulation boards and panels to masonry. They are quick & easy to fit - just drill an 8mm hole all the way through into the masonry substrate, and hammer home. They also feature a handy minimum embedment depth marker, so you know when they are installed safely & correctly.

PLEASE NOTE: Once installed, the head of the fixing should be taped and sealed to avoid any contact with wet plaster. Failure to do so may result in surface damage.

Features & Technical

Minimum embedment depth marker
All metal through fixing
Large diameter head
Zinc CR3 plating
Technical data sheet

Specifics

Head dia (HD): 35mm
Size Ø x L (mm): 8.0mm x 110mm
Pack quantity: 100
Max fixture thickness (^tfix): 60mm
Min embedment depth (^hef): 50mm
Drill hole diameter (^d0): 8.0mm
Max recommended tensile load: 0.20 kN*
Max recommended load: 20 KG*
*Above loadings for use in Concrete ≥ 25N/mm2
Material: Carbon steel
Finish: Zinc CR3
Corrosion Rating (1-5): 1 - Clean, dry & low humidity environments

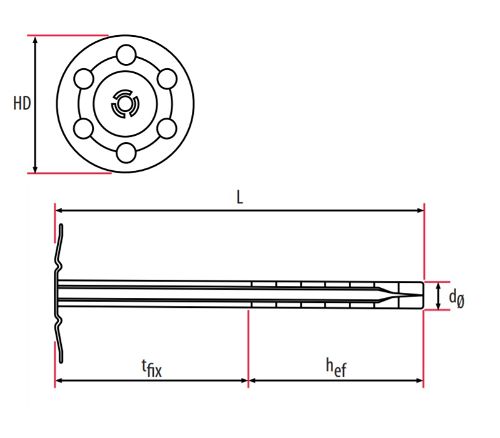

Technical line drawing of TIMco MIF metal insulation fixings

Technical Data Sheet
