Index ETA Opt 1 Flange Head Concrete Screw BZP Ø8x80mm TFE08080

Alert

remove

Please enter the new quantity and click submit.





ETA Option 1 Flange Head Concrete Bolt BZP 8mm (M10) x 80mm

  • 13mm Hexagon head with serrated flange
  • ETA Option 1 approved
  • 8mm drill hole


£ 1.15 INC VAT (PRICED EACH)

(Include VAT?)

BULK QUANTITY DISCOUNTS:

10+

£0.98

25+

£0.86

50+

£0.81

250+

£0.75

QUANTITY:

134 IN STOCK


Looking to secure your building projects with precision and durability? Look no further than our Index TFE concrete screws with ETA approval. Engineered for ultimate performance, these screws are the ideal choice for professionals and DIY enthusiasts alike.

Index TFE multi-fix bolts are a non-expansion direct fixing anchor for cracked and non-cracked concrete. With ETA option 1 approval, these fixings can be used for structural applications where the strongest fixings are required. These concrete bolts are reusable and have a fixed serrated washer under the head which negates the need for a separate washer.


  • Option 1 ETA assessed (Cracked and non-cracked concrete).
  • Fire Resistance R30-120.
  • Seismic approval C1 Ø6 - Ø18 & C2 Ø8 - Ø18.
  • VdS Certificate (sprinkler systems) CEA 4001.
  • Suitable when reduced edge distances or spacing required.
  • Superior durability for concrete and masonry applications.
  • Various size options available to suit your project needs.
  • Reusable and removable, leaving concrete surface flat.
  • Hexagon head with fixed serrated washer.
  • Zinc plated coating ≥ 5 μm

Specifics

Nominal size: 8x80mm
Drill Ø (d0): Ø8mm
Length from under head: 80mm
Fixture clearance hole (df): 12mm
Max fixture thickness (tfix): 15mm
Head size (Sw): 13mm hex across flats
Minimum drill depth (h1): 75mm
Minimum embedment depth (hnom): 65mm
Base material min thickness (hmin): 100mm
Max rec. load for cracked and uncracked concrete: 857kg
Material: Carbon steel with tempered point
Finish: Zinc plated ≥ 5 μm

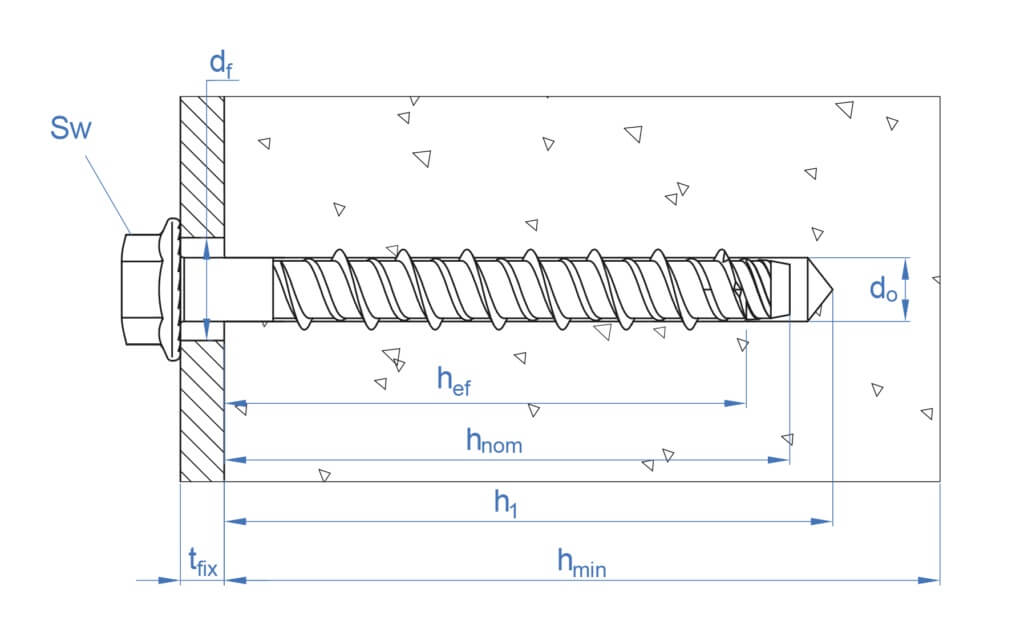

Technical line drawing of Index TFE hexagon head eta approved concrete bolts





 Delivery Terms

Orders over £100 will qualify for free 2-3 working day delivery*. Orders under £100 will be subject to a carriage charge - please see below for our delivery options.

We offer a number of different nationwide* services. Please see below for our delivery options.

*Please note that orders to the Isle of Wight, the Isle of Man, the Scottish Isles, the Scottish Highlands, Northern Ireland and the Channel Isles will incur a carriage surcharge.

*Long items greater than or equal to 1.5M in length will be subject to a length surcharge of £12. This surcharge is per shipment, and not per item.

Orders placed before 15:00 with next working day/timed services, Saturday & Royal Mail Special Delivery services will be dispatched the same day (Monday to Friday). Orders placed with any of these services after 15:00 will not be dispatched until the next working day. Orders placed on Saturdays, Sundays or bank holidays will be dispatched on the next working day. Next working day means Monday - Friday, excluding bank holidays. Orders placed with any of the aforementioned services will not be delivered on a Saturday or Sunday. For Saturday deliveries, select 'Saturday Delivery' in the basket.

We aim to despatch all orders with standard services within 2 working days, as long as all of the items are in stock.

Delivery Services

We offer the following delivery services:

  • Royal Mail standard tracked (3-5 working days) £4.50^^
  • Royal Mail 24 tracked (1-3 working days) £5.95^^
  • R/Mail Special Delivery next working day by 1pm^ £14.99^^
  • R/Mail Special Delivery next working day by 9am^ £39.98^^
  • Standard courier 2-3 working days £6.98
  • Express 1-2 working working day^ £8.99
  • Next working day by 13:00^ £10.99
  • Next working day by 11:00^ £14.99
  • DPD Saturday delivery^ £9.98

^Orders placed before 15:00 with next working day/timed services, Saturday & Royal Mail Special Delivery services will be dispatched the same day (Monday to Friday). Orders placed after 15:00 will not be dispatched until the next working day. Orders placed on Saturdays, Sundays or bank holidays will be dispatched on the next working day. Next working day means Monday - Friday, excluding bank holidays. Orders placed with any of the aforementioned services will not be delivered on a Saturday or Sunday. For Saturday deliveries, select 'Saturday Delivery' in the basket.

^^Royal Mail services are only offered to basket weights up to and including 2 kilos only. The 1pm & 9am Special Delivery times are for UK mainland only and will vary for Northern Ireland, Highlands & Islands. Please view the Royal Mail website for full details.

Please note that orders to the Isle of Wight, the Isle of Man, the Scottish Isles, the Scottish Highlands, Northern Ireland and the Channel Isles will incur a carriage surcharge.

Long items greater than or equal to 1.5M in length will be subject to a length surcharge of £12. This surcharge is per shipment, and not per item.

Collection

All orders are available for collection from our stores. Collection orders will normally be ready within 2 hours of the order being placed, as long as all items are in stock at the time of order.

Van Delivery

TC Fixings offers a free van delivery service to Saffron Walden and the surrounding villages.




CUSTOMERS ALSO VIEWED
TIMco (M8) 6x50mm Hex Flange Multi-Fix Bolt
TIMco Multi-Fix Hex Head Bolt
OPTIONS:
Each£0.25
100+ £0.22 200+ £0.19
TIMco CSK Concrete Screws T30 7.5x100 (100)
TIMco T30 Countersunk Concrete Screws (BOX of 100)
OPTIONS:
Each£8.91
5+ £8.60 10+ £8.29
ETA Opt 1 Flange Concrete Screw BZP 5x50mm
ETA Opt 1 Flange Concrete Screw BZP 5x50mm
Each£0.40
10+ £0.34 100+ £0.30
TIMco (M10) 8x60mm Countersunk Multi-Fix Bolt
TIMco Countersunk Multi-Fix Bolt
OPTIONS:
Each£0.53
100+ £0.46 200+ £0.40
TIMco (M10) 8x60mm Pan Head Multi-Fix Bolt
TIMco Pan Head Multi-Fix Bolt
OPTIONS:
Each£0.58
100+ £0.51 200+ £0.44
JCP 6mm (M8) x 50mm Eye Ankerbolt ZYP
JCP 6mm (M8) x 50mm Eye Ankerbolt ZYP
Each£3.18
50+ £2.70 100+ £2.38
TIMco T30 Pan Multi-Fix Screws 7.5x100 (100)
TIMco T30 Pan Head Concrete Screws (BOX of 100)
OPTIONS:
Each£13.12
5+ £12.39 10+ £11.84
TIMco CSK Multi-Fix Screws T25 6x40 (100)
TIMco T25 Countersunk Multi-Fix Screws (Box of 100)
OPTIONS:
Each£5.31
9+ £4.69 18+ £4.06
TIMco Pan Multi-Fix Screws T25 6x40 (100)
TIMco T25 Pan Head Multi-Fix Screws (Box of 100)
OPTIONS:
Each£5.88
9+ £5.18 18+ £4.49
JCP (M6) 5x75mm Hex Flange Multi-Fix Bolt
JCP Hexagon Head Ankerbolt BZP
OPTIONS:
Each£0.35
50+ £0.30 100+ £0.26
A4 316 SS TXE Hex Concrete Screws 6x60mm
A4 316 SS TXE Hex Concrete Screws 6x60mm
Each£1.66
100+ £1.51 200+ £1.36
A4 316 SS TXE Hex Concrete Screws 10x100mm
A4 316 SS TXE Hex Concrete Screws 10x100mm
Each£4.02
25+ £3.66 50+ £3.29

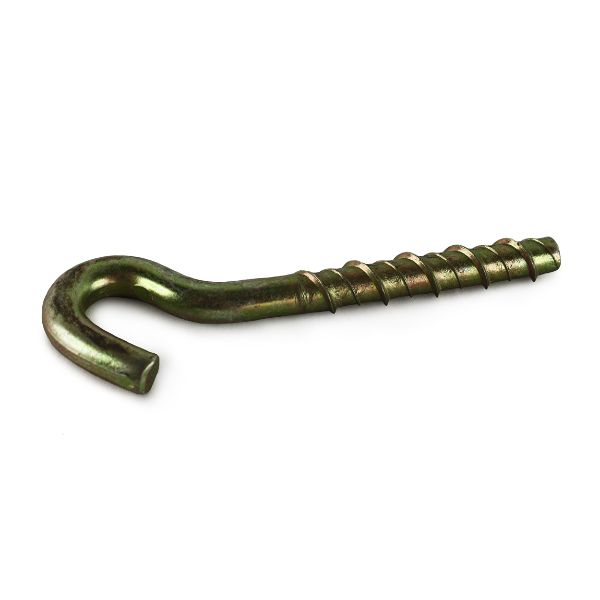

JCP 6mm (M8) x 50mm Hook Ankerbolt BZP
